Please show all work so I can understand.
Homework Answers
Add Answer to:
Please show all work so I can understand.

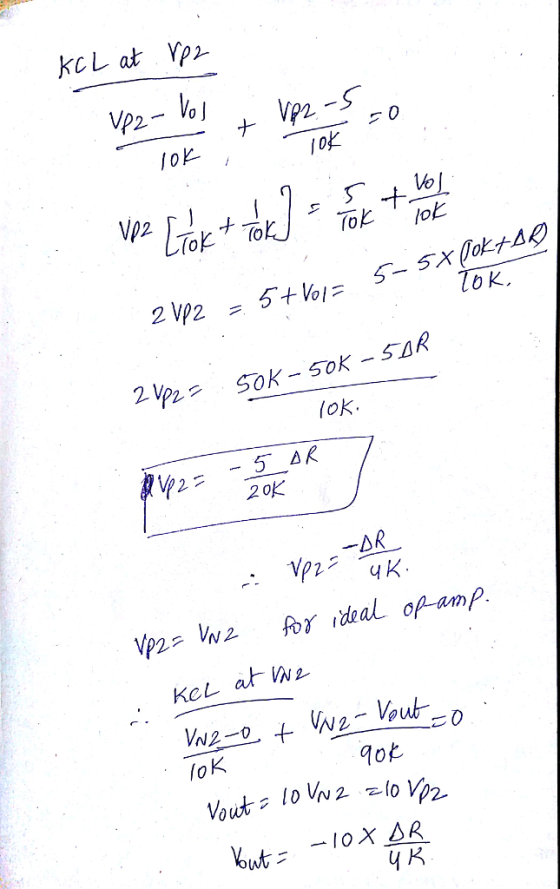

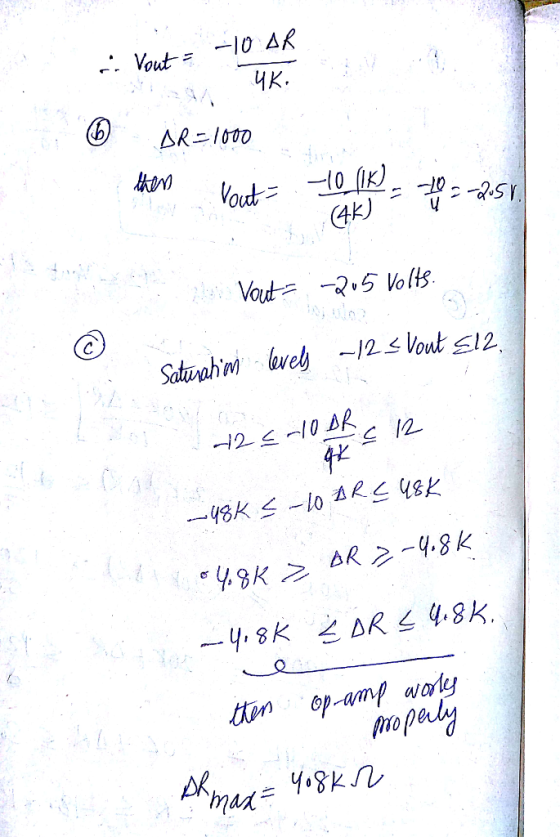

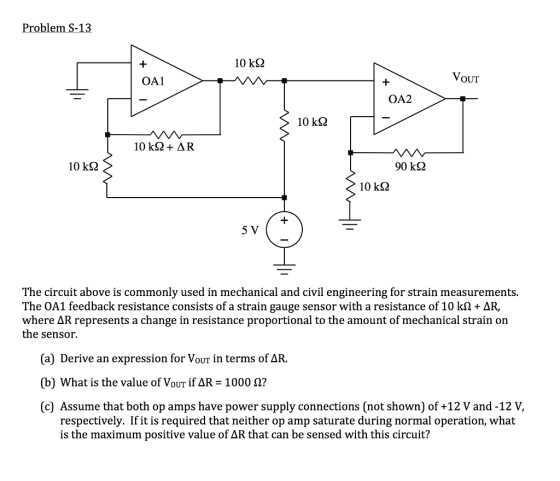

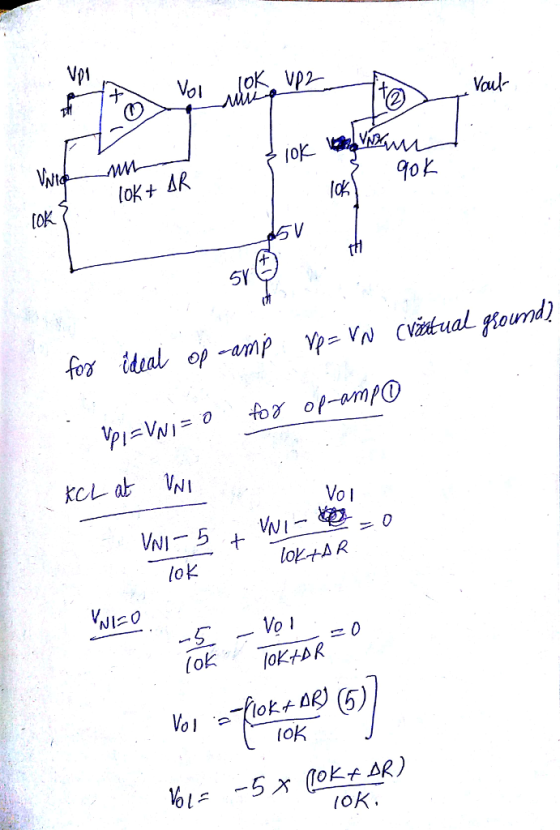

10 kS2 OA1 VoUT OA2 10 k2 10...
please show your work for section of 6a and 6b Problem 60 Find the output voltage...
please show your work for section of 6a and 6b
Problem 60 Find the output voltage vo of the following op amp circuit based on the input voltages vi and v2 (i.e. find the gain of the op amp circuit). Ri Ri Problem 6b Find the output voltage v2 of the following op amp circuit. Note that v2 depends on the input voltages (v and -15V) and the gain of the individual op amps 2.5 ks2 50 kl 01 10...
Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circ...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteri...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
please show your work for section of 6a and 6b
Problem 60 Find the output voltage vo of the following op amp circuit based on the input voltages vi and v2 (i.e. find the gain of the op amp circuit). Ri Ri Problem 6b Find the output voltage v2 of the following op amp circuit. Note that v2 depends on the input voltages (v and -15V) and the gain of the individual op amps 2.5 ks2 50 kl 01 10...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
thanks
Laboratory 1: operation amplifier characteristics A. Objectives: 1. To study the basic characteristics of an operational amplifier 2. To study the bias circuit of an operational amplifier B. Apparatus: 1. DC Power supply 2. Experimental board and corresponding components 3. Electronic calculator (prepared by students) 4. Digital camera (prepared by students for photo taking of the experimental results) 5. Laptop computer with the software PicoScope 6 and Microsoft Word installed. 6. PicoScope PC Oscilloscope and its accessories. 7. Multimeter...
