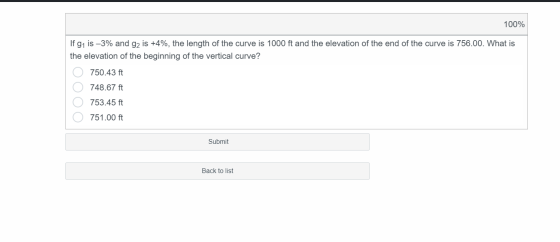

100% If g1 is -3% and g2 is +4%, the length of the curve is 1000 ft and the elevation of the end of the curve is 756.00. What

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

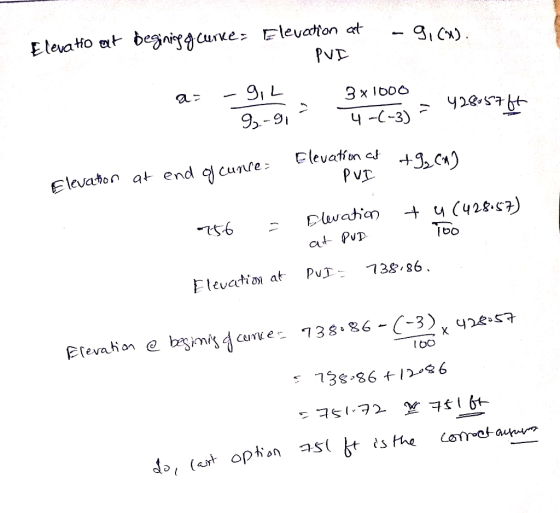

Elevatio at beginig of curve Elevation at arw - PUI 9,L 3x1000 9.-gi- 4-(-3) = 428:57.ft a= - - Elevation at - PUI t. (A) Ele

0 0
Add a comment
Know the answer?
Add Answer to:
100% If g1 is -3% and g2 is +4%, the length of the curve is 1000...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • (A) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00...

    (A) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station = 10+00.00, BVC Elev = 5000.00 ft. EVC Station = ? (b) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station = 10+00.00, BVC Elev = 5000.00 ft. EVC Elevation = ? (D) For an equal tangent vertical curve g1 = -4%, g2 = +3%, L = 200.00 ft, BVC Station =...

  • A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...

    A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at ghost station 640+00 where elevation is 1325.000 ft. Determine the stationing and elevations of the following points. 1. PVC 2. PVT 3. High point 4. 640+20

  • Problem #5 Given the following data for a vertical curve of a road: G1 = -2.5%,...

    Problem #5 Given the following data for a vertical curve of a road: G1 = -2.5%, G2 = +5.5% and station of PVI = 250+50. At station 252+50, the vertical curve must intersect an existing road at elevation 48.48 ft. The elevation on the tangent section at station 256+50 is 67.55. (a) Draw a good sketch of the vertical profile indicating all major points. (b) What is the length of the vertical curve that satisfies the above geometrics? (C) What...

  • A vertical curve has grades G1 = 2.8% (downgrade) and G2 = 2.2 (upgrade) Assume design...

    A vertical curve has grades G1 = 2.8% (downgrade) and G2 = 2.2 (upgrade) Assume design speed = 70 KPH, S=SSD, S ≤ LC, longitudinal friction factor = 0.30, and hesitation time = 2.5 sec. Station PVI = (43+7) and elevation PVI = 53.65 m 1) Design the curve? 2) Calculate the rate of change of curvature? 3) Calculate the rate of change of grade? 4) Determine the station and elevation of PVC? 5) Determine the station and elevation of...

  • 25. A spiral curve with a length of 50 feet connects a tangent to a curve...

    25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...

  • 13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the init...

    13. A 400-ft long equal tangent sag vertical curve has its PVC at station 100+00 and o b elevation 500 ft, the initial grade g,--4% and the final grade g2 elevation of the lowest point of the curve. +2.5%. Determine the

  • 12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back...

    12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.

  • 6. Based on the following Vertical Curve information (units in ft.): PVi Sta. 22+00, PVI Elev.-...

    6. Based on the following Vertical Curve information (units in ft.): PVi Sta. 22+00, PVI Elev.- 1 134.50, gi-30%, g2+ +1.4%, L :300, what is the station and elevation of the BVC? a) 17+00; 1138.00 17+00; 1139.44 h9+50; 1142.00 d) 19+50; 1138.00 7. Based on the following Vertical Curve information (units in ft.): PVI Sta 1 134.50, gi .-30%, g2+ +1.4%, L . 500, what is the elevation on the curve at Sta. 23 22+00, PVI Elev. a) 1138.49 b)...

  • Problem 4 A 500 ft long sag vertical curve passes under a bridge at station 82+45....

    Problem 4 A 500 ft long sag vertical curve passes under a bridge at station 82+45. The beginning of vertical curve (BVC) is at station 81+00. A-3.6% curve meets a +4.4% curve at the point of vertical intersection (PVI), which is at elevation 425.38 ft. What is the elevation of the point on the curve under the bridge? Problem 5 The grade into a vertical sag curve is -2%. The curve length is 1,400 ft. The grade out of the...

  • Find L please! -3 % high elevation on curve is 206.00 Find L. 2. PC station...

    Find L please! -3 % high elevation on curve is 206.00 Find L. 2. PC station = 10+00.00 PC elev = 200.00 G1=+2% G2=-3% at station 15+00 elevation must be 205.00 Find L 3. PI elev 185.00 GI=+2% G2--3% high elevation on curve is 176.00 Find L 4. P1 station = 16+25.00 P1 elev = 185.00 G1 +2% G2--3% at station 15+00 elevation must be 175.00 Find L
