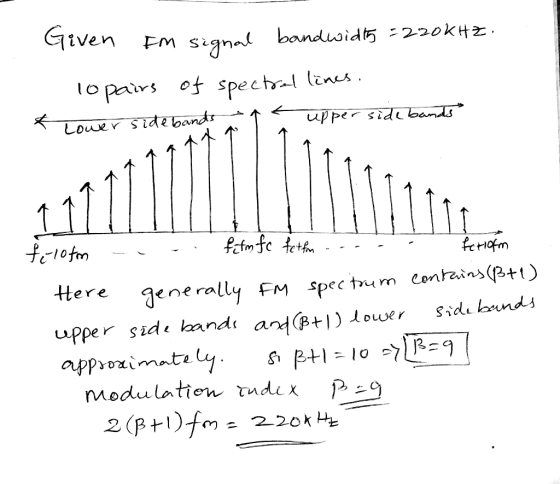

if the spectrum of an FM signal has a bandwidth of 220khz, what is the modulation...
if the spectrum of an FM signal has a bandwidth of 220khz, what is the modulation index if there are 10 pairs of spectral lines
Homework Answers
Add Answer to:
if the spectrum of an FM signal has a bandwidth of 220khz, what
is the modulation...
2. An FM modulator with modulation index m-2kradians/(voltxsec) has an input signal 2sin2π(1000)t). The carrier signal...
2. An FM modulator with modulation index m-2kradians/(voltxsec) has an input signal 2sin2π(1000)t). The carrier signal has amplitude Ac-50V a. Find the number of significant sideband pairs (level above 0.01Ac) b. Find the Carson's rule bandwidth BCarson.
A transmitter antenna broadcasts a non-commercial FM signal having modulation index mf = 5 and carrier...
A transmitter antenna broadcasts a non-commercial FM signal having modulation index mf = 5 and carrier deviation Δfc = 40.5 kHz. Find the number of pairs of sidebands from Bessel’s table. What is the frequency separation between the sidebands? Find the bandwidth required to transmit the FM signal from parts a and b.
Prob. 5 (a) Consider the FM signal with modulation index B 2 is passed through an ideal band-pass...
Prob. 5 (a) Consider the FM signal with modulation index B 2 is passed through an ideal band-pass filter (BPF) with mid-band frequency f and bandwidth 5f. where f is the carrier frequency and fmis the frequency of the baseband modulating signal (i) Sketch the spectrum of the BPF output. (ii) Determine the fraction of the power of the FM signal that is present at the output of the filter (b) Consider the FM signal given by фFM (t)-100 cos...
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. ...
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the differences between FM and PM. What is meant by the term instantaneous frequency? 2.) Describe what is meant by the term "Zero-Crossings" of a FM or PM wave. 3.) Is PM and/or FM a linear modulation technique? Explain. 4.) Describe one important advantage that angle modulation has over amplitude modulation. Describe one distinct disadvantage that angle modulation has over amplitude modulation. 5.) Describe the...
Consider frequency modulation with a sinusoidal message signal (tone modulation) m(t) = a cos(2πfmt). The modulated...
Consider frequency modulation with a sinusoidal message signal (tone modulation) m(t) = a cos(2πfmt). The modulated signal is: vFM(t) = Ac cos[2πfct + βf sin(2πfmt)]. with βf = kfa/fm being the modulation index. What is the bandwidth of the modulated signal.
Consider frequency modulation with a sinusoidal message signal (tone modulation) m(t) = a cos(2πfmt). The modulated...
Consider frequency modulation with a sinusoidal message signal (tone modulation) m(t) = a cos(2πfmt). The modulated signal is: vFM(t) = Ac cos[2πfct + βf sin(2πfmt)]. with βf = kfa/fm being the modulation index. What is the bandwidth of the modulated signal.
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20 0.05 0.1 015 10 -0.05 with a frequency deviation constant ky 10, and a message bandwidth of W =15 kHz the one-sided noise power-spectral density in the transmission channel is No= 10-8 W/Hz, and an attenuation of 10 is introduced during transmission in the channel as well. a. What is the average-to-peak-power ratio of the message (or, equivalently the power content of the normalized...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20 0.05 0.1 015 10 -0.05 with a frequency deviation constant ky 10, and a message bandwidth of W =15 kHz the one-sided noise power-spectral density in the transmission channel is No= 10-8 W/Hz, and an attenuation of 10 is introduced during transmission in the channel as well. a. What is the average-to-peak-power ratio of the message (or, equivalently the power content of the normalized...
2. An FM modulator with modulation index m-2kradians/(voltxsec) has an input signal 2sin2π(1000)t). The carrier signal has amplitude Ac-50V a. Find the number of significant sideband pairs (level above 0.01Ac) b. Find the Carson's rule bandwidth BCarson.
Prob. 5 (a) Consider the FM signal with modulation index B 2 is passed through an ideal band-pass filter (BPF) with mid-band frequency f and bandwidth 5f. where f is the carrier frequency and fmis the frequency of the baseband modulating signal (i) Sketch the spectrum of the BPF output. (ii) Determine the fraction of the power of the FM signal that is present at the output of the filter (b) Consider the FM signal given by фFM (t)-100 cos...
2. 12 pts] An FM system has a modulation index β-6 aid the input signal-to-noise ratio SNR 25dB. The message is a periodic square wave given in the figure below pulse width -0.2m 2 0 0 t (ms) a) What is the output SNR.? b) What is the proper value of the message bandwidth? [Justify your answer. c) What is the corresponding FM transmission bandwidth? d) If the modulation index is kept at β 6, what should be the increase...
1.) Angle Modulation can be subdivided into phase modulation (PM) and frequency modulation (FM). Highlight the differences between FM and PM. What is meant by the term instantaneous frequency? 2.) Describe what is meant by the term "Zero-Crossings" of a FM or PM wave. 3.) Is PM and/or FM a linear modulation technique? Explain. 4.) Describe one important advantage that angle modulation has over amplitude modulation. Describe one distinct disadvantage that angle modulation has over amplitude modulation. 5.) Describe the...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20 0.05 0.1 015 10 -0.05 with a frequency deviation constant ky 10, and a message bandwidth of W =15 kHz the one-sided noise power-spectral density in the transmission channel is No= 10-8 W/Hz, and an attenuation of 10 is introduced during transmission in the channel as well. a. What is the average-to-peak-power ratio of the message (or, equivalently the power content of the normalized...
Consider a FM system that is used to communicate the following message signal: S. m(t) 20 0.05 0.1 015 10 -0.05 with a frequency deviation constant ky 10, and a message bandwidth of W =15 kHz the one-sided noise power-spectral density in the transmission channel is No= 10-8 W/Hz, and an attenuation of 10 is introduced during transmission in the channel as well. a. What is the average-to-peak-power ratio of the message (or, equivalently the power content of the normalized...
