Question

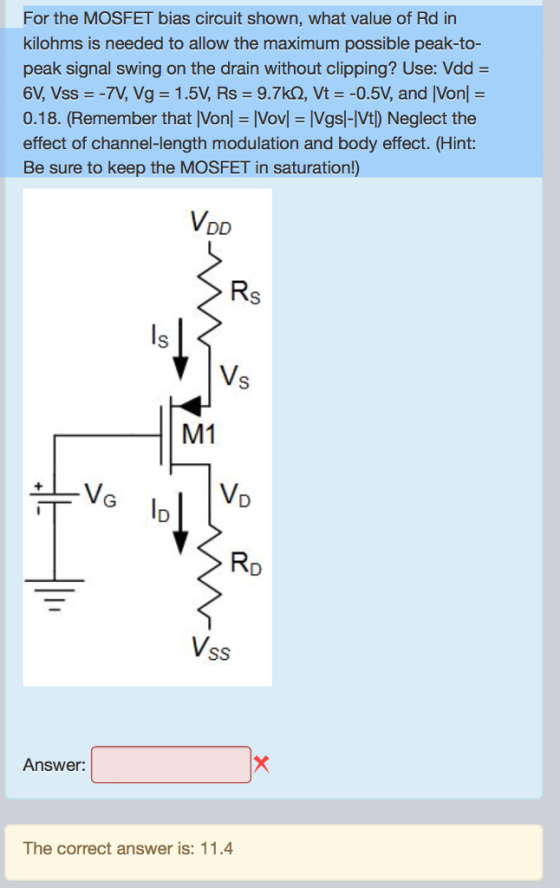

For the MOSFET bias circuit shown, what value of Rd in kilohms is needed to allow the maximum possible peak-to- peak signal swing on the drain without clipping? Use: Vdd = 6V, Vss =-7V, Vg = 1.5V, Rs 9.7kQ, Vt =-0.5V, and IVonl = 0.18. (Remember that [Vonl-[Vov Vgsl-Vt) Neglect the effect of channel-length modulation and body effect. (Hint: Be sure to keep the MOSFET in saturation!) VDD Rs V. M1 VD RD Vss Answer: The correct answer is: 11.4

the correct answer attachd if u did not get the same asnwer DO NOT POST it

0 0
Add a comment Improve this question Transcribed image text
Answer #1

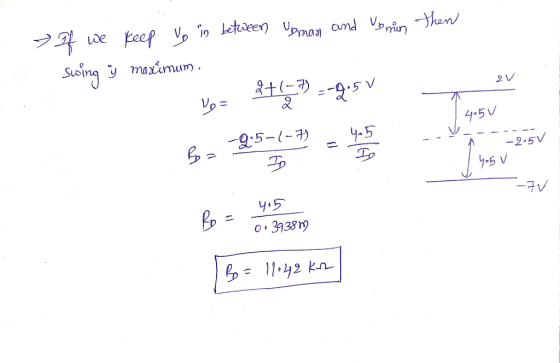

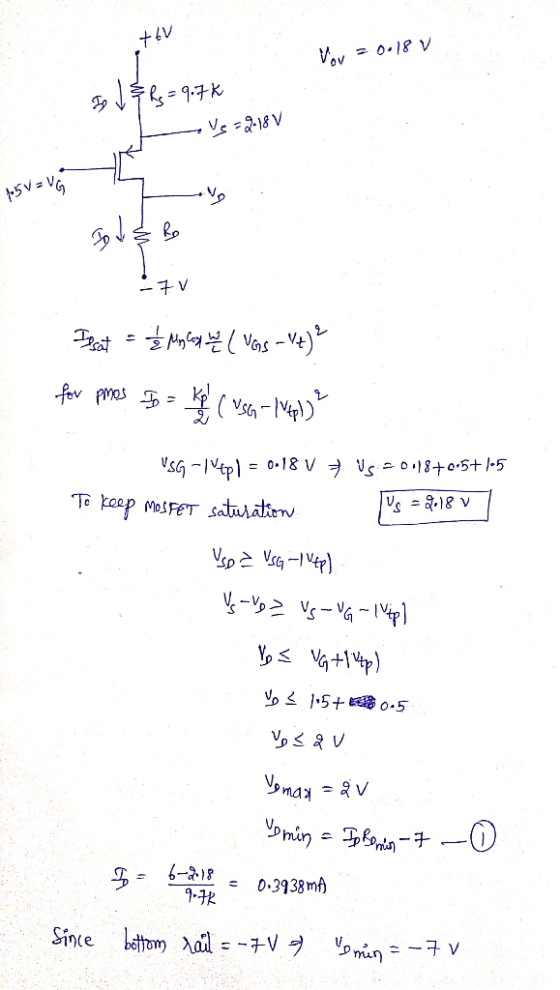

ovo.18 - Vs18+o*5+ 1-5 VSGIVp=018 V Koap MosFET satatin 5 o-5 m -0 D6-218 0.3938mh Sinte bto ad= -7V7 ,min 7 Vwe peep Vn keteer) Upman and Vin Then Suing y maximum 8+-)-5 V 4.5V 4-5 -2.5V 7-5 V 7v O 313819 bp11.42 kn
