The connected bar BC is used to increase the lever arm of the adjustable wrench as shown. If the moment needed to loosen the bolt is 100 N-m, what is the force F required to be applied at C? 300

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

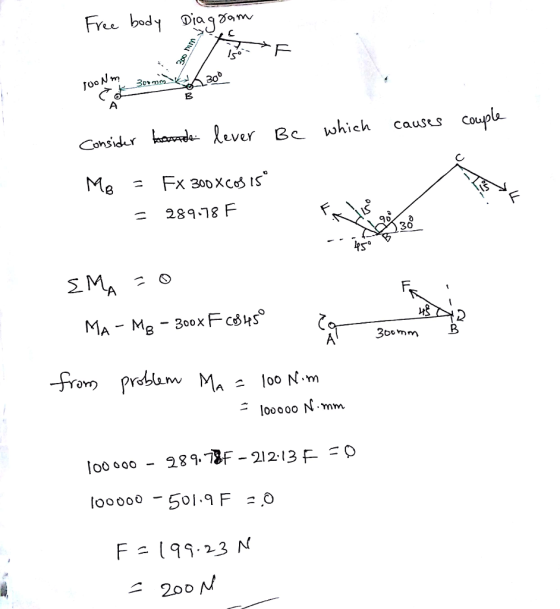

Fre body Dam TO hich Causes Cosw Lever Bc which causes Couplo -28998 F 30 1t 3oomm oY) o000o N mm looooo-501.9 F 2o0

1 0
Add a comment
Know the answer?
Add Answer to:
The connected bar BC is used to increase the lever arm of the adjustable wrench as...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 5.a. The box wrench in the Figure below is used to tighten the boltat. If the...

    5.a. The box wrench in the Figure below is used to tighten the boltat. If the wrench does not tum when the load is applied to the handle (fixed support), determine the x-component of the support reaction at the bolt (2.5 points) 4. IN b. - 33 N- GASN d. - 33 N, 5.b. The box wrench in the Figure below is used to tighten the bolt at 4. If the wrench does not tum when the load is applied...

  • 1. A force of 20.0 pounds is applied at the end of a 15.0-inch long wrench...

    1. A force of 20.0 pounds is applied at the end of a 15.0-inch long wrench that is used to tighten a nut on a threaded bolt. What is the torque applied to the nut and bolt in lb-ft. Only the exact answer is accepted. 2. A 12.00-foot long class 1 lever is used to lift the front end of a tractor (a weight of 1500 lbs.). The applied force arm (L1) is 9.00 feet long. How much force (to...

  • 500 J of work is put into a lever arm that is 1 m long by...

    500 J of work is put into a lever arm that is 1 m long by applying a constant force perpendicular to the arm, halfway down its length. If the lever had an angular displacement of 10 radians, what force was used to turn it? 50 N 200 N 400 N 100 N

  • The preloads of the M10 bolts used in a pressure vessel are applied with the wrench...

    The preloads of the M10 bolts used in a pressure vessel are applied with the wrench shown. For the 16,500 N preload force, Fi, the required torque, T, is approximated as T=K*Fi*d where K-0.20 and d is the nominal bolt diameter. The required torque is developed by applying a force to the end of the wrench as shown. The wrench material is AISI 1035 steel, forged and heat treated. For the applied force, determine the critical failure spot for yielding...

  • Develop an understanding of lever arm Activity 1: Observing the effects of changing the Lever arm...

    Develop an understanding of lever arm Activity 1: Observing the effects of changing the Lever arm for a rotating body DEPARTMENT OF EDUCATION AND KNOWLEDGE Materials Required: Textbook, string, glue tack, tape. You must do the following activity turns to confirm the accuracy of your observations. pe. You must do the following activity in pairs taking Make your book stand on your desk so that the cover opens and closes like a door 2. Wrap one end of the threadin...

  • The 185-N force is applied as shown to one end of the curved wrench. If a...

    The 185-N force is applied as shown to one end of the curved wrench. If a = 36° calculate the moment of Fabout the center of the bolt. Determine the value of a (0<a< 90°) which would maximize the magnitude of the moment about O, state the value of this maximum moment. The moments are positive if counterclockwise, negative if clockwise. F = 185 N 28 mm 1 138 mm 62 mm 62 mm 28 mm Answers: Mo= i Nem...

  • A wrench is used to apply a torque on a bolt as in the picture below....

    A wrench is used to apply a torque on a bolt as in the picture below. ALL 6 forces that act on the bolt are equal in magnitude. All 6 forces are applied at the same time. If d=0.3 [m] and F1=F2=F3=F4=F5=F6=50[N], what is the torque around the center of the hexagonal bolt? You may use the diagram below. 30° F2 Fi F3 60 F F4 F5 45° Rigid Body Diagram: Force/Torque Table: Forces ma X у TA Net

  • A force of 15 N is applied parallel to a lever arm of length 10 m....

    A force of 15 N is applied parallel to a lever arm of length 10 m. What is the resulting torque?    0 Nm 5 Nm 75 Nm 150 Nm

  • 9. In the figure, what is the lever arm of force F1 about Q? a) 0.5...

    9. In the figure, what is the lever arm of force F1 about Q? a) 0.5 m b) 0.707 m c) 1.0 m d) 1.41 m e) none of the above F2- 4N 1m 10. What is the torque applied by F2 about Q? b) 1.41 N m d) 2.83 N m e) none of the above a) 1.0 N m c) 2.0 N m

  • 1. Suppose a torque T is generated by applying a force F to a wrench. The...

    1. Suppose a torque T is generated by applying a force F to a wrench. The force is applied some distance L from the bolt that the wrench is tightening. If the force applied is reduced to a quarter of the original force, and the new torque generated is 3T, at what distance from the bolt is this new force applied? 2. Two extended bodies, object 1 and object 2, are left to roll down an incline from an initial...
