We were unable to transcribe this image

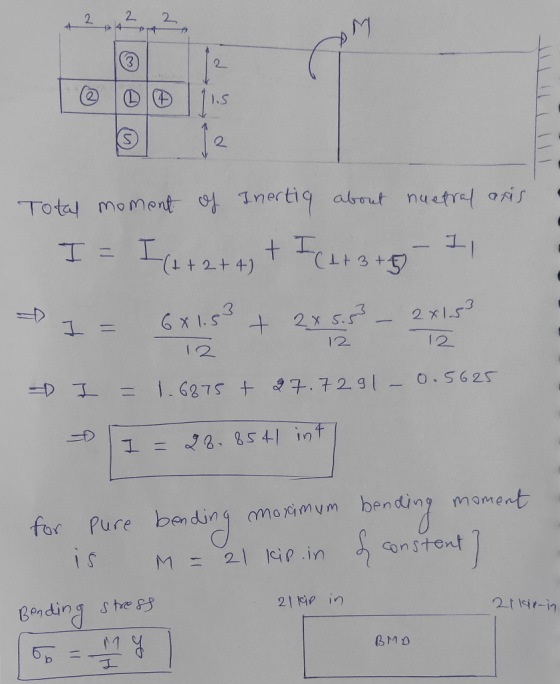

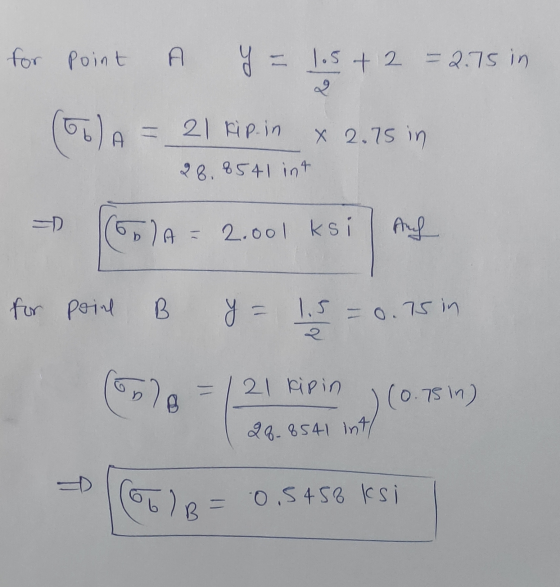

for point - 1.5+ 2 = 2.75 in I = 21 kip.in x 2.75 in 28. 8541 int = A = 2.001 ksi me for point B y = 1,5 = 0.75 in 1 21 kipin 110.75 in) 1 28.8541 intl (T/R = 0.5458 ksi
Add Answer to:

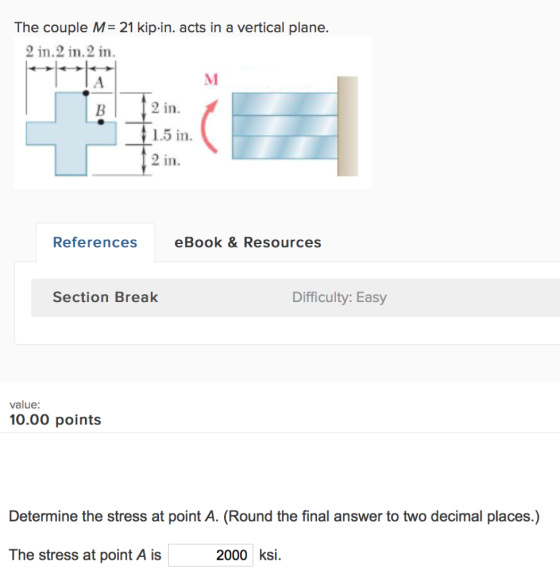

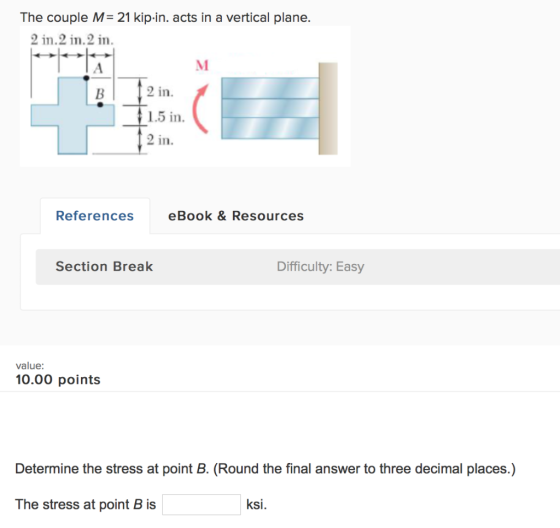

The couple M= 21 kip.in. acts in a vertical plane. 2 in.2 in.2 in. M 2...
Determine the maximum in-plane shearing stress magnitude and the corresponding normal stress. (Round the final answers...
Determine the maximum in-plane
shearing stress magnitude and the corresponding normal stress.
(Round the final answers to two decimal places.)
Given: P 13 ksi 2 ksi 3 ksi References eBook & Resources Section Break Difficulty: Easy value: 10.00 polnts Determine the maximum in-plane shearing stress magnitude and the corresponding normal stress. (Round the final answers to two decimal places.) ksi. The maximum in-plane shearing stress magnitude is The corresponding normal stress is ksi
A fabric used in air-inflated structures is subjected to a biaxial loading that results in normal...
A fabric used in air-inflated structures is subjected to a biaxial loading that results in normal stresses σ,-18 ksi and σ,-20 ksi. The properties of the fabric can be approximated as E= 12.6 x 106 psi and v 0.34 4 in in. References eBook & Resources Section Break Difficulty: Easy velue: Required information 10.00 points Determine the change in length of side AB. (Round the final answer to five decimal places.) The change in length of side AB is in.
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is...
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant. L/2 References eBook & Resources Section Break Difficulty Easy 4. value: 10.00 points Determine the deflection at mid span of span AB. (Round the final answer to four decimal places.) ↓ The deflection at mid span is
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant...
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant Mo References eBook &Resources Section Break Difficulty. Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is EI
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel...
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
slope and deflection please Consider the beam and loading shown. Assume that the flexural rigidity El...
slope and deflection please
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant References eBook & Resources Section Break -Difficulty: Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is
Two uniform cylinders, each of mass m-7 kg and radius r- 125 mm, are connected by...
Two uniform cylinders, each of mass m-7 kg and radius r- 125 mm, are connected by a belt as shown. The system is released from rest when t-0. References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Required information Determine the velocity of the center of cylinder A att 3.4 s. (Round the final answer to two decimal places.) The velocity of the center of cylinder A is 0 m/s i Two uniform system is released from rest...
Problems 4.1 and 4.2 Knowing that the couple shown acts in a vertical plane, deter mine...
Problems 4.1 and 4.2 Knowing that the couple shown acts in a vertical plane, deter mine the stress at (a) point A. (b) point B. M=500 Nm 30 mm 40 mm Fig. 24.1 Fig. 24
hrough 4.140 The couple M acts in a vertical plane and is applied to a beam...
hrough 4.140 The couple M acts in a vertical plane and is applied to a beam oriented as shown. Determine (a) the angle that the neutral axis forms with the horizontal, (b) the maximum tensile stress in the beam. 5° C150× 12.2 0° c 152 mm 13 mm m 3.33 in. 48.8 mm Fig. P4.136
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m...
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m LS m 0.6 m References eBook & Resources Section Break Difficulty: Easy alue 10.00 points From the figures given below, identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. (Round the final answer to two decimal places.) A : Figure 1 Figure Figure 3 Figure 4 The correct bending-moment diagram is Figure (Click to select) The maximum absolute...
Determine the maximum in-plane
shearing stress magnitude and the corresponding normal stress.
(Round the final answers to two decimal places.)
Given: P 13 ksi 2 ksi 3 ksi References eBook & Resources Section Break Difficulty: Easy value: 10.00 polnts Determine the maximum in-plane shearing stress magnitude and the corresponding normal stress. (Round the final answers to two decimal places.) ksi. The maximum in-plane shearing stress magnitude is The corresponding normal stress is ksi
A fabric used in air-inflated structures is subjected to a biaxial loading that results in normal stresses σ,-18 ksi and σ,-20 ksi. The properties of the fabric can be approximated as E= 12.6 x 106 psi and v 0.34 4 in in. References eBook & Resources Section Break Difficulty: Easy velue: Required information 10.00 points Determine the change in length of side AB. (Round the final answer to five decimal places.) The change in length of side AB is in.
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant. L/2 References eBook & Resources Section Break Difficulty Easy 4. value: 10.00 points Determine the deflection at mid span of span AB. (Round the final answer to four decimal places.) ↓ The deflection at mid span is
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant Mo References eBook &Resources Section Break Difficulty. Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is EI
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
slope and deflection please
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant References eBook & Resources Section Break -Difficulty: Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is
Two uniform cylinders, each of mass m-7 kg and radius r- 125 mm, are connected by a belt as shown. The system is released from rest when t-0. References eBook & Resources Section Break Difficulty: Medium value: 10.00 points Required information Determine the velocity of the center of cylinder A att 3.4 s. (Round the final answer to two decimal places.) The velocity of the center of cylinder A is 0 m/s i Two uniform system is released from rest...
Problems 4.1 and 4.2 Knowing that the couple shown acts in a vertical plane, deter mine the stress at (a) point A. (b) point B. M=500 Nm 30 mm 40 mm Fig. 24.1 Fig. 24
hrough 4.140 The couple M acts in a vertical plane and is applied to a beam oriented as shown. Determine (a) the angle that the neutral axis forms with the horizontal, (b) the maximum tensile stress in the beam. 5° C150× 12.2 0° c 152 mm 13 mm m 3.33 in. 48.8 mm Fig. P4.136
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m LS m 0.6 m References eBook & Resources Section Break Difficulty: Easy alue 10.00 points From the figures given below, identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. (Round the final answer to two decimal places.) A : Figure 1 Figure Figure 3 Figure 4 The correct bending-moment diagram is Figure (Click to select) The maximum absolute...
