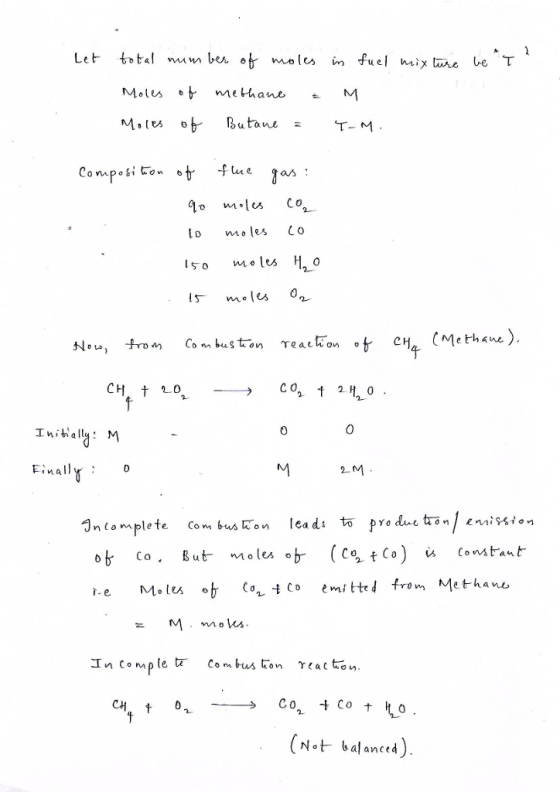

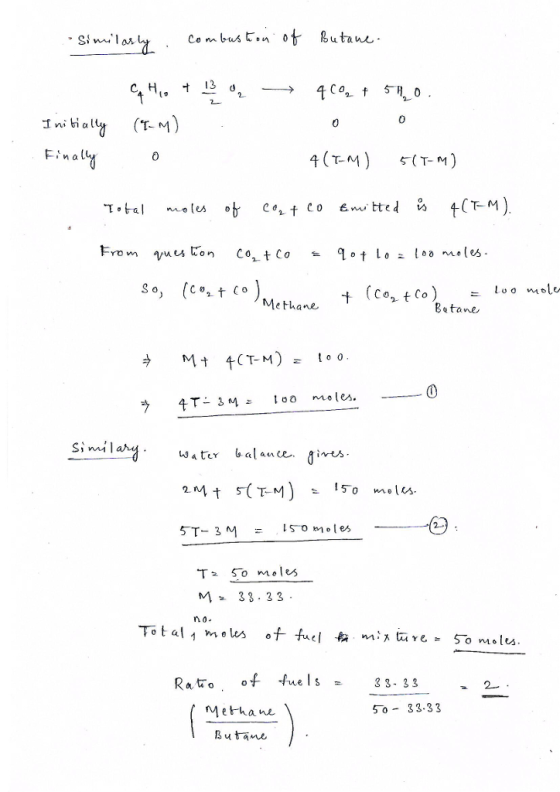

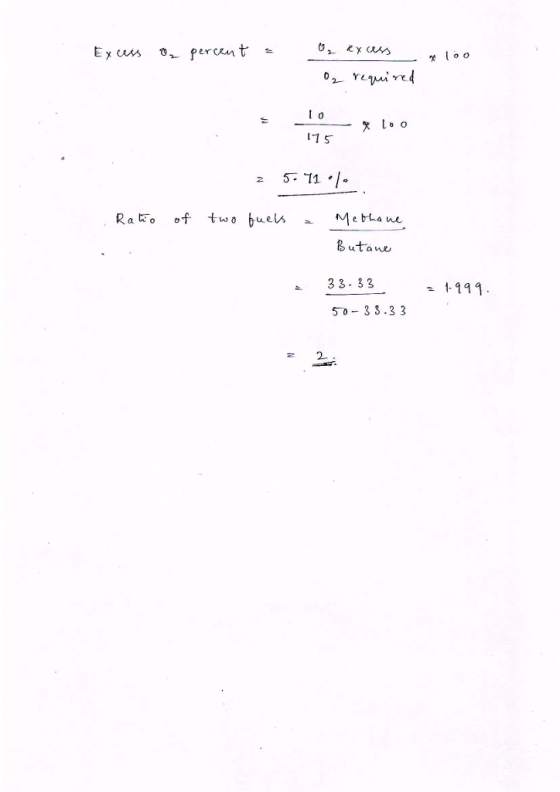

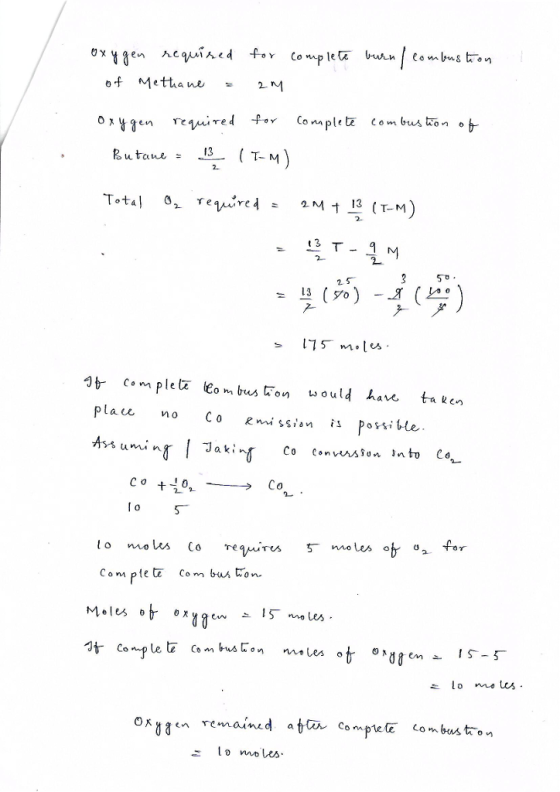

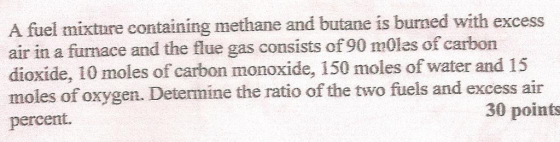

fuel mixture containing methane and butane is burned with excess air in a fumace and the...
2. Natural gas containing a mixture of methane, ethane, propane, and butane is burned in a...
2. Natural gas containing a mixture of methane, ethane, propane, and butane is burned in a furnace with excess air. One hundred kmol/h of a gas containing 94.4 mole% methane, 3.40% ethane, 0.60% propane, and 0.50% butane is to be burned with 17% excess air. a) Calculate the molar flow rate of the air. b) Now instead of using numerical values, we will work the problem by deriving an equation. Define the following variables: i.molar flow of the fuel gas:...
Question 5 A fuel gas containing methane (CH) and ethane (CH) is burned with dry air...
Question 5 A fuel gas containing methane (CH) and ethane (CH) is burned with dry air in a furnace, producing a stack gas at 300 °C and 105 kPa (absolute). You analyze the stack gas and find that it contains no unburned hydrocarbons, oxygen, or carbon monoxide. You also determine the dew-point temperature. ICO concion a) If the fuel gas contains exclusively methane, what is the stack gas composition? What if the fuel gas is exclusively ethane? b) Estimate the...
A Fuel Gas Consists Of 75% Butane (C4H10), 10% Propane (C3H8) And 15% Butene (C4H8) By Volume. ... Question: A fuel gas...
A Fuel Gas Consists Of 75% Butane (C4H10), 10% Propane (C3H8) And 15% Butene (C4H8) By Volume. ... Question: A fuel gas consists of 75% butane (C4H10), 10% propane (C3H8) and 15% butene (C4H8) by volume. It... A fuel gas consists of 75% butane (C4H10), 10% propane (C3H8) and 15% butene (C4H8) by volume. It is to be fed to the combustion chamber in 10% excess air at 25ºC, where it is completely burnt to carbon dioxide and water. The...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C and is mixed with the air. The products of combustion leave this reactor at 0.9 atm and 1600 K. Determine the equilibrium composition of the products of combustion and the amount of heat released by this combustion in kJ/kmol methane. Use data from the tables. CH4 Combustion 25℃ CO, HO 1600 K 30%acess 25 C The amount of carbon dioxide...
Answer all the questions please Problem 1 (20 pts) (No Partial Credits) i. Butane, CaHio, is burned with air at an air fuel ratio of 20. Determine the percentage of excess ii. Benzene gas, CsHi, i...
Answer all the questions please
Problem 1 (20 pts) (No Partial Credits) i. Butane, CaHio, is burned with air at an air fuel ratio of 20. Determine the percentage of excess ii. Benzene gas, CsHi, is burned with 90% theoretical air. Assuming no hydrocarbons in the products, calculate the air fuel ratio. ill. Determine the dew point temperature of the following reaction that take place where the atmospheric pressure is 100 kPa, iv. Calculate the rs of steam at 120°C...
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of...
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of the combustion gas is 5.34% CO2, 13.23% O2 and 81.43% N2. The molal humidity of the product is 0.179 mol water vapor/mol of dry gas. Calculate percent composition by weight of the liquid fuel.
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of...
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of the combustion gas is 5.34% CO2, 13.23% O2 and 81.43% N2. The molal humidity of the product is 0.179 mol water vapor/mol of dry gas. Calculate percent composition by weight of the liquid fuel.
You are given a steel vessel containing a mixture of methane gas (CH4 (g)) and propane...
You are given a steel vessel containing a mixture of methane gas (CH4 (g)) and propane gas (C3H8 (g)). You completely combust this entire mixture in the presence of excess oxygen gas, and you collect all of the carbon dioxide and water formed in the combustion reaction. A total of 48.4 grams of CO2 and 32.4 grams of H2O are collected. Determine the number of moles of CH4 (g) and C3H8 (g) that were present in the initial mixture.
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel a...
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
When butane (C4H10) is burned in air, it reacts with the oxygen (O2) in the air...
When butane (C4H10) is burned in air, it reacts with the oxygen (O2) in the air to produce carbon dioxide (CO2) and water (H2O). The unbalanced equation for the chemical reaction is shown below. C4H10 + O2 à CO2 + H2O Butane is fed to an experimental combustion chamber at the rate of 100 grams per hour. Assuming that the combustion chamber is able to completely burn the butane, what is the required mass flow rate of air? Assume that...
Question 5 A fuel gas containing methane (CH) and ethane (CH) is burned with dry air in a furnace, producing a stack gas at 300 °C and 105 kPa (absolute). You analyze the stack gas and find that it contains no unburned hydrocarbons, oxygen, or carbon monoxide. You also determine the dew-point temperature. ICO concion a) If the fuel gas contains exclusively methane, what is the stack gas composition? What if the fuel gas is exclusively ethane? b) Estimate the...
Methane gas is burned with 30 percent excess air. This fuel enters a steady-flow combustor at 0.9 atm and 25'C and is mixed with the air. The products of combustion leave this reactor at 0.9 atm and 1600 K. Determine the equilibrium composition of the products of combustion and the amount of heat released by this combustion in kJ/kmol methane. Use data from the tables. CH4 Combustion 25℃ CO, HO 1600 K 30%acess 25 C The amount of carbon dioxide...
Answer all the questions please
Problem 1 (20 pts) (No Partial Credits) i. Butane, CaHio, is burned with air at an air fuel ratio of 20. Determine the percentage of excess ii. Benzene gas, CsHi, is burned with 90% theoretical air. Assuming no hydrocarbons in the products, calculate the air fuel ratio. ill. Determine the dew point temperature of the following reaction that take place where the atmospheric pressure is 100 kPa, iv. Calculate the rs of steam at 120°C...
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of the combustion gas is 5.34% CO2, 13.23% O2 and 81.43% N2. The molal humidity of the product is 0.179 mol water vapor/mol of dry gas. Calculate percent composition by weight of the liquid fuel.
A liquid fuel containing Co and H2, was burned using excess air. Its Orsat analysis of the combustion gas is 5.34% CO2, 13.23% O2 and 81.43% N2. The molal humidity of the product is 0.179 mol water vapor/mol of dry gas. Calculate percent composition by weight of the liquid fuel.
Butane gas (C4H10) is burned with 120% of the theoretical air in a steady flow system. The fuel and air enter separately at 25°C and 1 atm. The reaction goes to completion and the products leave as a mixture at 1 atm and 300°C. The water in the products is a vapor. Determine a. The amount of heat transfer in kJ/kmol of fuel b. The entropy change for the reaction c. The entropy generation for the process
Butane gas (C4H10)...
