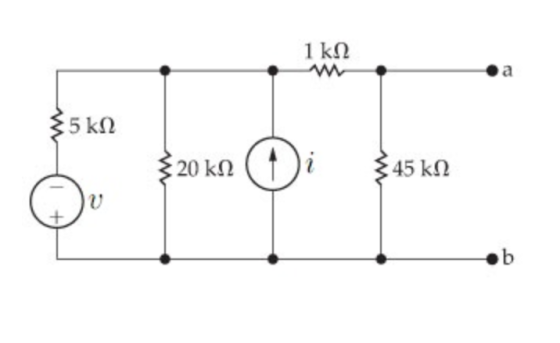

A voltmeter with a resistance of 61 kΩ is used to measure the voltage vab in the circuit.(Figure 1)

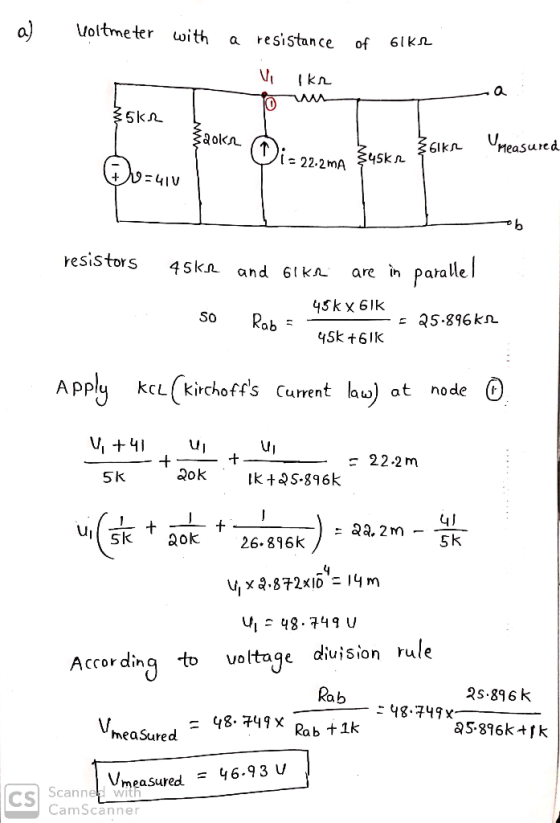

a) What is the voltmeter reading if v = 41 V and i = 22.2 mA ?
Express your answer with the appropriate units.

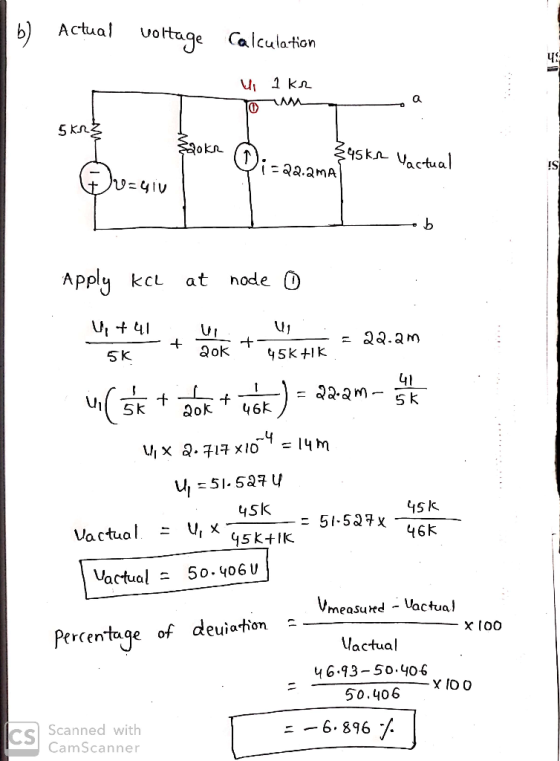

b) What is the deviation percentage in the voltmeter reading if the percentage of deviation is defined as [(measured−actual)/actual]×100?
Express your answer with the appropriate units.
