24.65 A 115-Ω resistor, a 58.5-mH inductor, and a 197-μF capacitor are connected in series to...

Question

Question

24.65

A 115-Ω resistor, a 58.5-mH inductor, and a 197-μF capacitor are connected in series to an ac generator. You may want to review (Pages 868 - 872) .

At what frequency will the current in the circuit be a maximum?

At what frequency will the impedance of the circuit be a minimum?

science physics

Answer 1

Answer #1

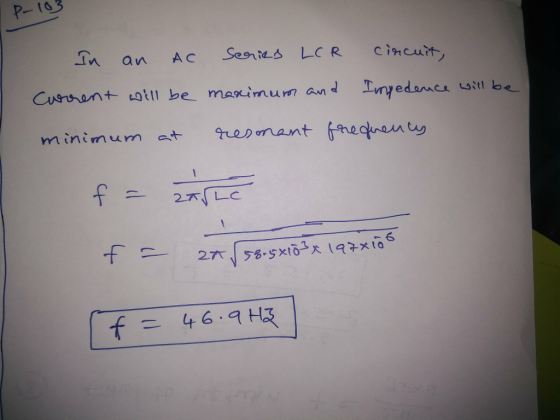

in an Ac Seantas LCR cincut Laitl be

Answer 2
