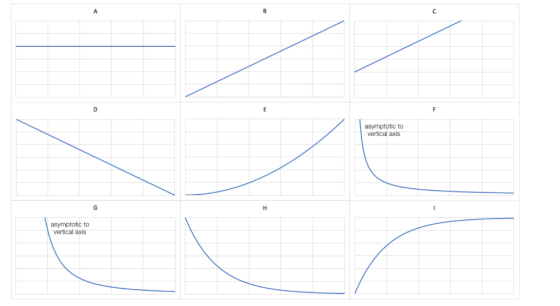

asymptotic to vertical axis asymptotic to vertical axis

A resistor and an uncharged capacitor are wired in series. They are then connected to a battery.

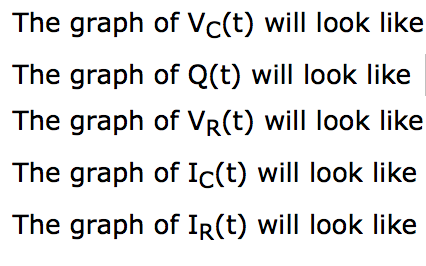

The graph of Vc(t) will look like The graph of Q(t) will look like The graph of VR(t) will look like The graph of Ic(t) will

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

1) I

2) I

3) H

4) H

5) H

Because, Vc(t) = Vmax*(1 - e^(-t/T) )

Q(t) = Q_max*(1 - e^(-t/T) )

VR(r) = I(t)*R

= I_max*e^(-t/T)*R


Ic(t) = I_max*e^(-t/T)

IR(t) = I_max*e^(-t/T)
