Consider the circuit given below where R = 12 Ω. Determine the Thevenin equivalent at terminals...

Question

Question

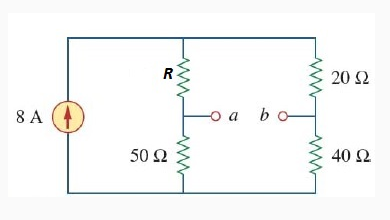

Consider the circuit given below where R = 12 Ω.

20 Ω 8 A 50 Ω 40Ω

Determine the Thevenin equivalent at terminals a-b of the given circuit.

Rth = ?

Vth = ?

engineering Electrical-Engineering

Answer 1

Answer #1

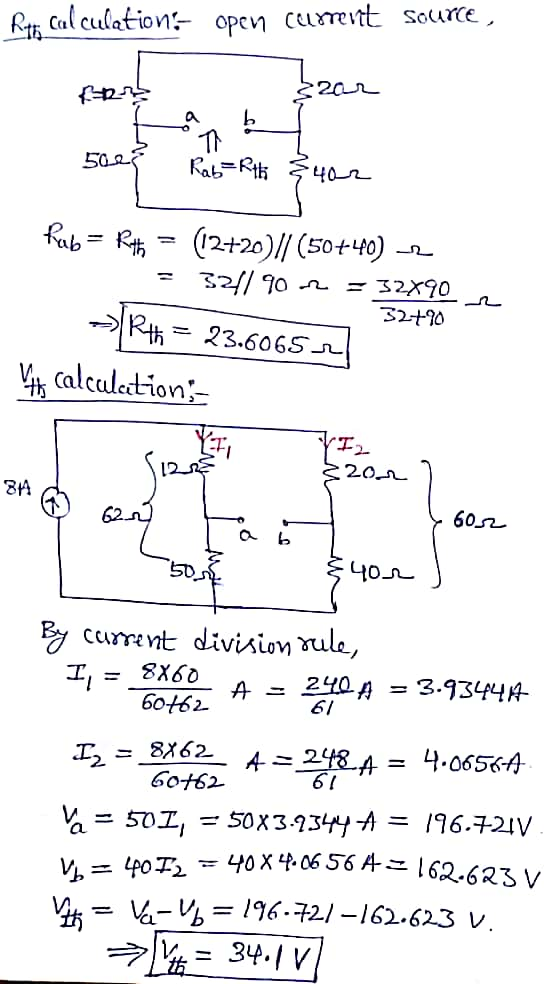

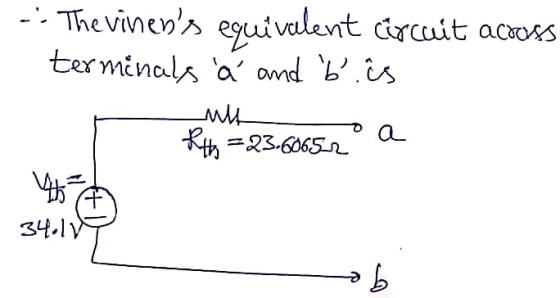

Cl culation ope cet soure (9必 Vi calculec-ion ЗА 60-2 SD current division rule, 60162

Answer 2
