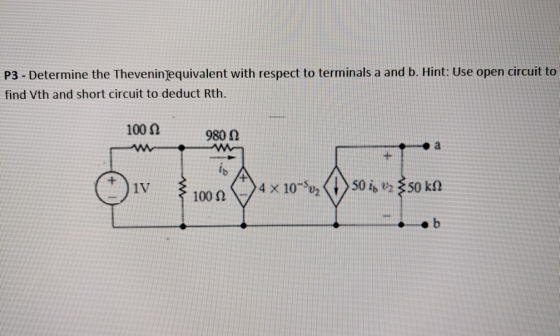

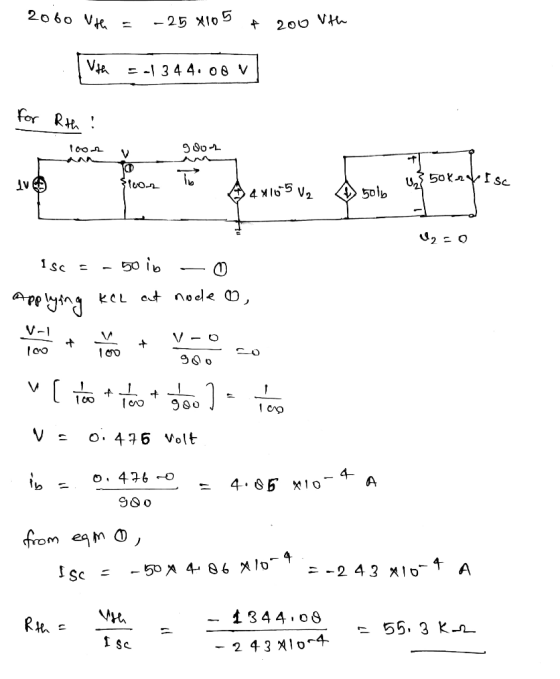

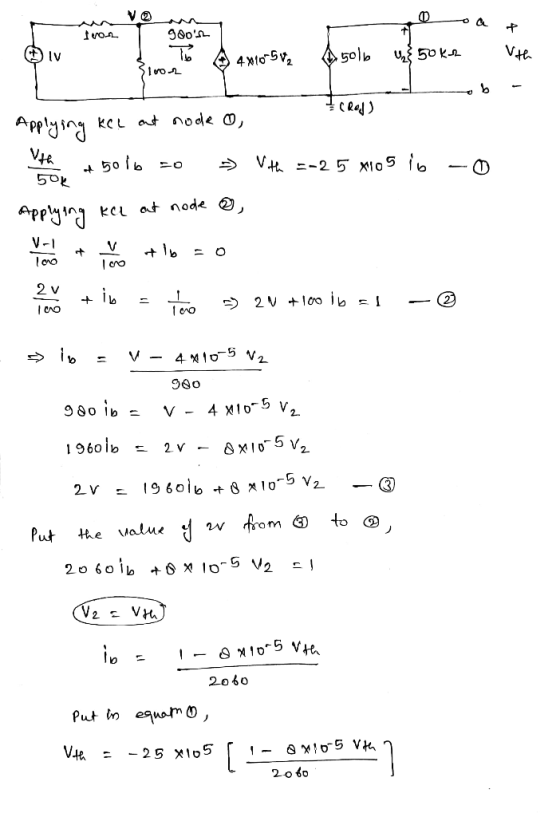

P3 - Determine the Thevenin equivalent with respect to terminals a and b....
Determine the Thevenin equivalent with respect to the terminals a,b for the circuit shown in (Figure...
Determine the Thevenin equivalent with respect to the terminals
a,b for the circuit shown in (Figure 1) . Suppose that
vs = 100 V and ? = 7500.
A) Find RTh.
B) Find vTh.
Find the Thevenin equivalent circuit (Vth, Rth) at the terminals a-b of the circuit below. RTh...
Find the Thevenin equivalent circuit (Vth, Rth) at the terminals
a-b of the circuit below.
RTh 50 kΩ 9i VTh 20V. op
Consider the circuit given below where R = 12 Ω. Determine the Thevenin equivalent at terminals...
Consider the circuit given below where R = 12 Ω.
Determine the Thevenin equivalent at terminals
a-b of the given circuit.
Rth = ?
Vth = ?
20 Ω 8 A 50 Ω 40Ω
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a...
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a and b, where I. 9 A and R-4 Ω 6Ω RTh VTh
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix...
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix i 452 42
A Thevenin equivalent can also be determined from measurements made at the pair of terminals of...
A Thevenin equivalent can also be determined from measurements
made at the pair of terminals of interest. Assume the following
measurements were made at the terminals a,b in the circuit in the
figure.
When a 20 Ohm resistor is connected to terminals a,b the voltage
Vab is measured and found to be 150 V.
When a 50 Ohm resistor is connected to the terminals a,b the
voltage is measired and found to be 186 V.
Part A) Find the equivalent...
. Determine the Thevenin equivalent (with respect to terminals ab) by finding the open circuit voltage...
. Determine the Thevenin equivalent (with respect to terminals ab) by finding the open circuit voltage and the short circuit current. [Note that the open circuit voltage is the same as voltage across the 60 resistor and that the short circuit current by-passes the 60 resistor.) Use any method we have discussed to determine the voltage and current. 2/ 201 Vi-9. Ni 5 5 u Nervi-N2 = 0 to 10 18A 54 M ( 13 15 do to suintão toluoto...
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v...
Find the Thevenin equivalent with respect to the terminals a,b
for the circuit(Figure
1) if v = 320V , i = 11A .
Find the equvalent voltage. Find the equivalent resistance.
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v = 320V , i = 11A . Find the equvalent voltage. Find the equivalent resistance.
1. Find the Thevenin equivalent with respect to the terminals a and b in the circuit...
1. Find the Thevenin equivalent with respect to the terminals a and b in the circuit shown. 50 mA 2ks2 10 mA 20V
Problem 9.49 Part A Find the Thevenin equivalent circuit with respect to the terminals a,b of...
Problem 9.49 Part A Find the Thevenin equivalent circuit with respect to the terminals a,b of the circuit shown in (Figure 1). Suppose that R 45 2 Find the value of VTh Express your answer in complex form using three significant figures. Vrh- Submit Request Answer Part B Figure 1 of 1 Find the value of Zyh Express your answer in complex form using three significant figures Th 2500 V 0.03v -100 V Submit
Determine the Thevenin equivalent with respect to the terminals
a,b for the circuit shown in (Figure 1) . Suppose that
vs = 100 V and ? = 7500.
A) Find RTh.
B) Find vTh.
Find the Thevenin equivalent circuit (Vth, Rth) at the terminals
a-b of the circuit below.
RTh 50 kΩ 9i VTh 20V. op
Consider the circuit given below where R = 12 Ω.
Determine the Thevenin equivalent at terminals
a-b of the given circuit.
Rth = ?
Vth = ?
20 Ω 8 A 50 Ω 40Ω
For the circuit given below, find the Thevenin equivalent as seen by looking into terminals a and b, where I. 9 A and R-4 Ω 6Ω RTh VTh
(4) Determine and draw the Thevenin equivalent circuit with respect to terminals a and b. 20ix i 452 42
A Thevenin equivalent can also be determined from measurements
made at the pair of terminals of interest. Assume the following
measurements were made at the terminals a,b in the circuit in the
figure.
When a 20 Ohm resistor is connected to terminals a,b the voltage
Vab is measured and found to be 150 V.
When a 50 Ohm resistor is connected to the terminals a,b the
voltage is measired and found to be 186 V.
Part A) Find the equivalent...
. Determine the Thevenin equivalent (with respect to terminals ab) by finding the open circuit voltage and the short circuit current. [Note that the open circuit voltage is the same as voltage across the 60 resistor and that the short circuit current by-passes the 60 resistor.) Use any method we have discussed to determine the voltage and current. 2/ 201 Vi-9. Ni 5 5 u Nervi-N2 = 0 to 10 18A 54 M ( 13 15 do to suintão toluoto...
Find the Thevenin equivalent with respect to the terminals a,b
for the circuit(Figure
1) if v = 320V , i = 11A .
Find the equvalent voltage. Find the equivalent resistance.
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v = 320V , i = 11A . Find the equvalent voltage. Find the equivalent resistance.
1. Find the Thevenin equivalent with respect to the terminals a and b in the circuit shown. 50 mA 2ks2 10 mA 20V
Problem 9.49 Part A Find the Thevenin equivalent circuit with respect to the terminals a,b of the circuit shown in (Figure 1). Suppose that R 45 2 Find the value of VTh Express your answer in complex form using three significant figures. Vrh- Submit Request Answer Part B Figure 1 of 1 Find the value of Zyh Express your answer in complex form using three significant figures Th 2500 V 0.03v -100 V Submit
