The power train of a vehicle is considered to include both the engine or motor and...

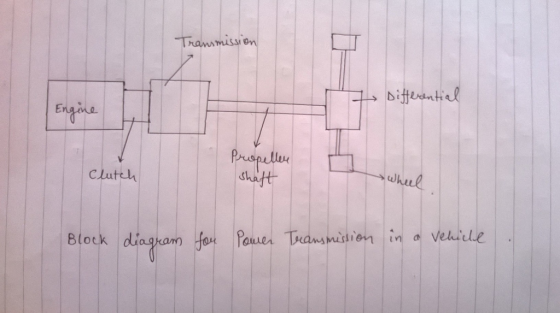

The power train of a vehicle is considered to include both the engine or motor and the drive train. The drive train delivers power from the engine to the tires. Capture these statements in a SysML block or internal block diagram.
Homework Answers
Add Answer to:
The power train of a vehicle is considered to include both the
engine or motor and...
The efficiency of the motor of an electric vehicle is 80% both in motor and generator...
The efficiency of the motor of an electric vehicle is 80% both in motor and generator mode. At velocities up to 50km/h the friction force of 500 N has to be overcome. The mass of the vehicle equals one ton. The velocity diagram below describes the motion pattern of the vehicle on a rectilinear path. Calculate the energy recovered during braking phase an the net energy consumed. v in km/h 50+ 3/5 tins 600 615
1.) Engine Power-4 cylinder Calculate the power output of a 4-cylinder internal combustion engine. The piston...
1.) Engine Power-4 cylinder Calculate the power output of a 4-cylinder internal combustion engine. The piston diameter is mm and the Length moved is 85.3 rm mm. Th stroke cycle. Assume a mean effective pressure of 1.379 MPa. Answer in kW and hp. Omit mm. The RP M is 3000. The engine operates using a 4 diagram/ sketch but be sure to include given information and basic equations needed.
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power...
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power from the engine is divided by the planetary gear unit. Some of the power drives Motor Generator 2 (MG2), and some of the power drives the wheels directly. During normal driving conditions, Motor Generator 1 (MG1) runs in the same direction to generate electrical power for MG2. MG2 starts and runs to provide an electric assist as a motor. Determine: The fault tree diagram...
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power...
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power from the engine is divided by the planetary gear unit. Some of the power drives Motor Generator 2 (MG2), and some of the power drives the wheels directly. During normal driving conditions, Motor Generator 1 (MG1) runs in the same direction to generate electrical power for MG2. MG2 starts and runs to provide an electric assist as a motor. Determine: a) The fault tree...
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power...
During normal driving conditions (less than 100km/h), an engine runs and provides power. The mechanical power from the engine is divided by the planetary gear unit. Some of the power drives Motor Generator 2 (MG2), and some of the power drives the wheels directly. During normal driving conditions, Motor Generator 1 (MG1) runs in the same direction to generate electrical power for MG2. MG2 starts and runs to provide an electric assist as a motor. Determine: The fault tree diagram...
Question 4. (30 marks) There are an increasing number of hybrid cars on our roads –...
Question 4. (30 marks) There are an increasing number of hybrid cars on our roads – cars which are powered by both a conventional internal combustion engine and also by an electric motor. The battery which provides power for the electric motor is charged by the internal combustion engine, but recent versions of these cars are able to have the battery recharged by plugging into a power point. These hybrid cars are promoted by their manufacturers as being more environmentally...
Question 2 (a) A small electric vehicle is propelled by a motor with the performance data...
Question 2 (a) A small electric vehicle is propelled by a motor with the performance data shown in Figure Q2 below. The motor drives a gear with 12 teeth, which in turn drives a larger gear, which is attached to the vehicle's driving wheels. The diameter of the driving wheels is 380 mm and the vehicle is designed for a speed of 30 km/h. (Note: Errors of +10% in reading data from the graphs are acceptable for the purposes of...
A simple but practical feedback control system is shown below. It is a positioning system or posi...
please solve this problem with detail description.
A simple but practical feedback control system is shown below. It is a positioning system or position servo for a large video satellite antenna modeled as a mass having a large moment of inertia, J. An output potentiometer measures the output shaft position, converting the position to a proportional voltage according to vo-Kye. where, e is the output shaft angle in radians and vo is the output potentiometer voltage; Kp is the constant...
Gradeability Computations for a combine You are developing the propulsion system for a new combine harvester...
Gradeability Computations for a combine You are developing the propulsion system for a new combine harvester which will need to operate at least part of the time in hills. The field conditions in which this new combine must operate vary widely, but for the sake of analysis, we will assume the combine must climb a 10% grade and also overcome the rolling resistance of the tires as the machine propels up the slope. The coefficient of rolling friction is assumed...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a 1) A die with a ratio of 4 to 1 to the propeller as shown below. Because the propeller shaft gearbox ed is four times that of the crank shaft, the torque on the propeller shaft is one-fourth that spe o the crank shaft. Both the shaft from the engine to the gearbox and the propeller shaft are to be solid and made of...
The efficiency of the motor of an electric vehicle is 80% both in motor and generator mode. At velocities up to 50km/h the friction force of 500 N has to be overcome. The mass of the vehicle equals one ton. The velocity diagram below describes the motion pattern of the vehicle on a rectilinear path. Calculate the energy recovered during braking phase an the net energy consumed. v in km/h 50+ 3/5 tins 600 615
1.) Engine Power-4 cylinder Calculate the power output of a 4-cylinder internal combustion engine. The piston diameter is mm and the Length moved is 85.3 rm mm. Th stroke cycle. Assume a mean effective pressure of 1.379 MPa. Answer in kW and hp. Omit mm. The RP M is 3000. The engine operates using a 4 diagram/ sketch but be sure to include given information and basic equations needed.
Question 2 (a) A small electric vehicle is propelled by a motor with the performance data shown in Figure Q2 below. The motor drives a gear with 12 teeth, which in turn drives a larger gear, which is attached to the vehicle's driving wheels. The diameter of the driving wheels is 380 mm and the vehicle is designed for a speed of 30 km/h. (Note: Errors of +10% in reading data from the graphs are acceptable for the purposes of...
please solve this problem with detail description.
A simple but practical feedback control system is shown below. It is a positioning system or position servo for a large video satellite antenna modeled as a mass having a large moment of inertia, J. An output potentiometer measures the output shaft position, converting the position to a proportional voltage according to vo-Kye. where, e is the output shaft angle in radians and vo is the output potentiometer voltage; Kp is the constant...
Gradeability Computations for a combine You are developing the propulsion system for a new combine harvester which will need to operate at least part of the time in hills. The field conditions in which this new combine must operate vary widely, but for the sake of analysis, we will assume the combine must climb a 10% grade and also overcome the rolling resistance of the tires as the machine propels up the slope. The coefficient of rolling friction is assumed...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a 1) A die with a ratio of 4 to 1 to the propeller as shown below. Because the propeller shaft gearbox ed is four times that of the crank shaft, the torque on the propeller shaft is one-fourth that spe o the crank shaft. Both the shaft from the engine to the gearbox and the propeller shaft are to be solid and made of...
