For Problems 15.15 through 15.18, compute the bending moments, shear forces, and axial forces for all...

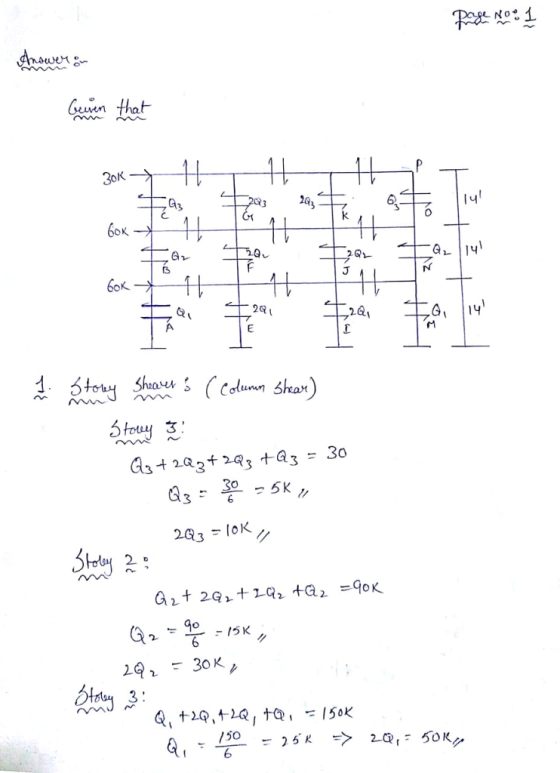

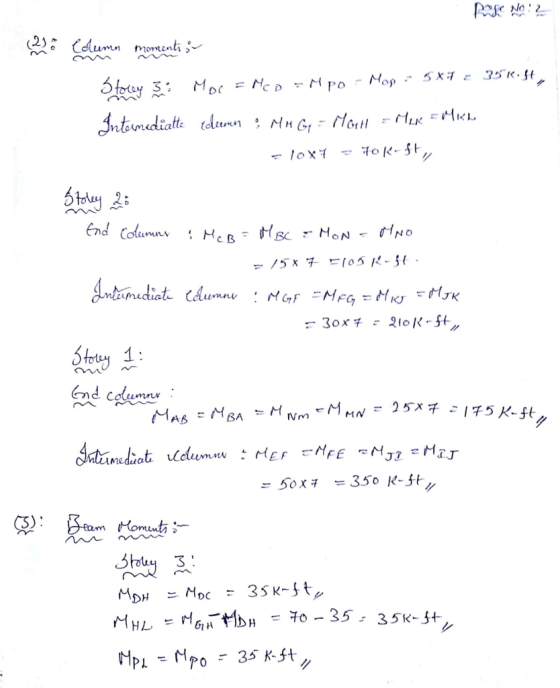

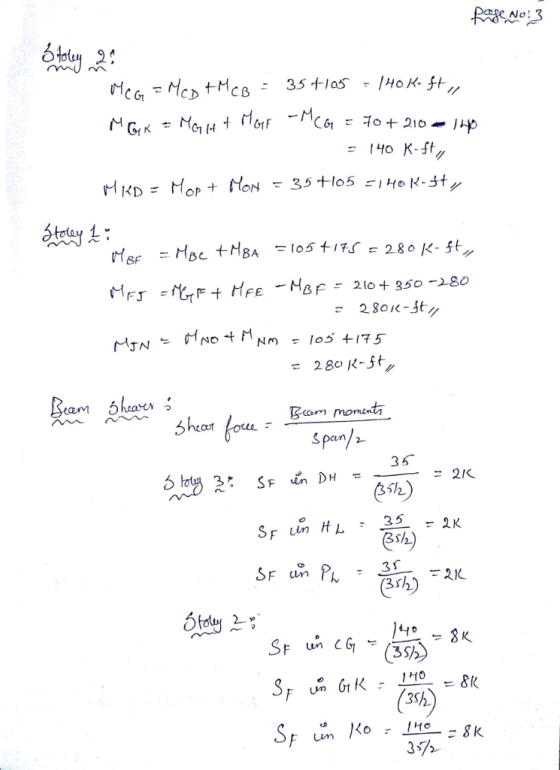

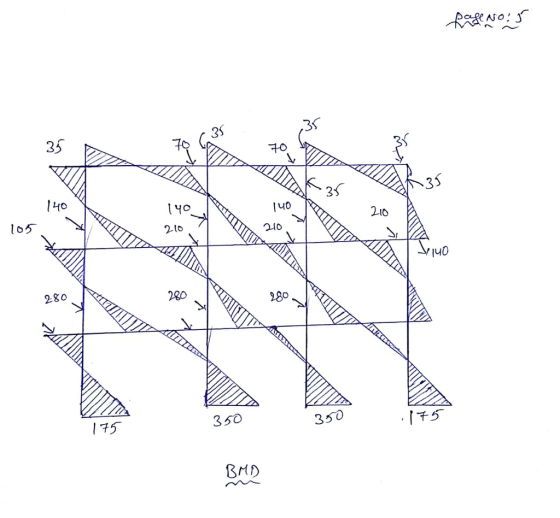

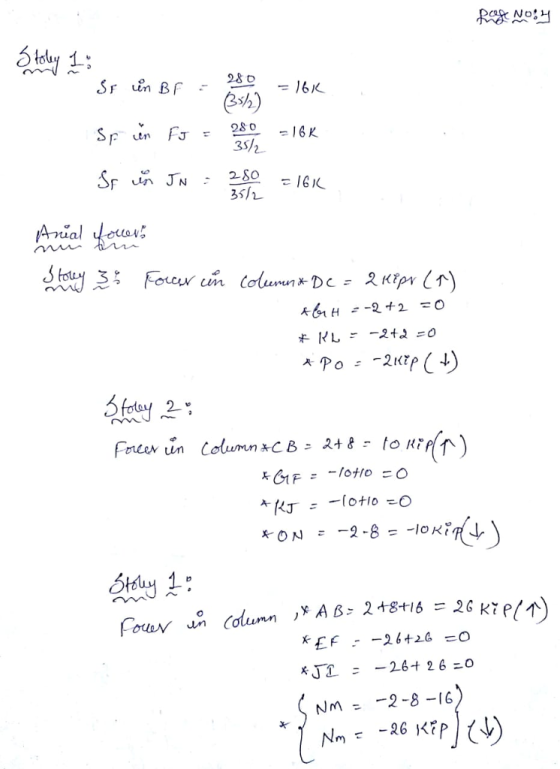

saction 156 h 15.18, compute the bending moments, shear for all of the members of the frames shown using fores, and axial force san abAll joints are assumed to be rigid. Ans: MGF-210 k ft, MFJ 280 k-ft) 30 k 60 k 0 60 k Problem 15.15
Section 1 h 15.18, compute the bending moments, shear Fo vial forces for all of the members of the fra s.and nethod. All joints are assumed to be rigid. for and axia the portal method. All joint MoF-210 k ft, M 280 k ft) 30 K 60 k Problem 15.15
compute the bending moments, shear forces and axial
forces for the frame shown, using portal method.
3535 ft 35 ft Problem 15.15 5.16 30 kN D H 60 kN 0NG C G 60 kN Problem 15.16
Determine the approximate axial forces,
shears, and moments for all the members of the frames
shown by using the portal
method and cantilever method.
Determine the axial forces, shears, and bending moments at
points A and B of the structure shown. Draw the V & M Diagram
Completely
7 10k А B 459 Lont 50 k-ft 6 ft -6 ft -6ft -6 ft
I want solving process
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M at a cross section just to the right of the 3.5 kN load acting on the simple beam AB shown in the figure. 3.5 kN 7 kN A B 0.75 m -1 .25 m 1.0 m 3.0 m PROBLEM 4.3-1
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M...
4. After computing the reaction forces, draw the axial force N, shear force bending moment M diagrams for the frame below. Neatly sketch its quali deflected shape. Rigid connection Between Beam and colima 5k 80kft Pin connection Between Beam sod cohama eB 10 ft 5 ft 5 ft
1. (60 points) Draw axial, shear, and bending moment diagrams for the frame shown below. Draw one set of P, V, and M diagrams for Column AB, one set for Beam BE, and one set for Column DF. There is a fixed support at A and applied forces and moments as shown below. 500 lb 500 lb 5 k-ft 5 k-ft D 5 k-ft B 10 10' 10' E 500 lb/ft 10' 10' 5k s tiskt 5 k-ft 1k 2....
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
