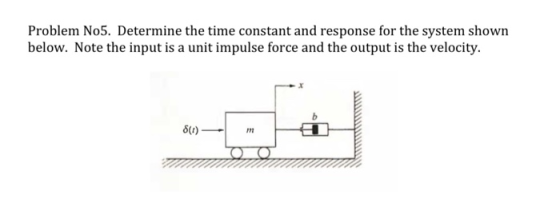

Problem No5. Determine the time constant and response for the system shown below. Note the input...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

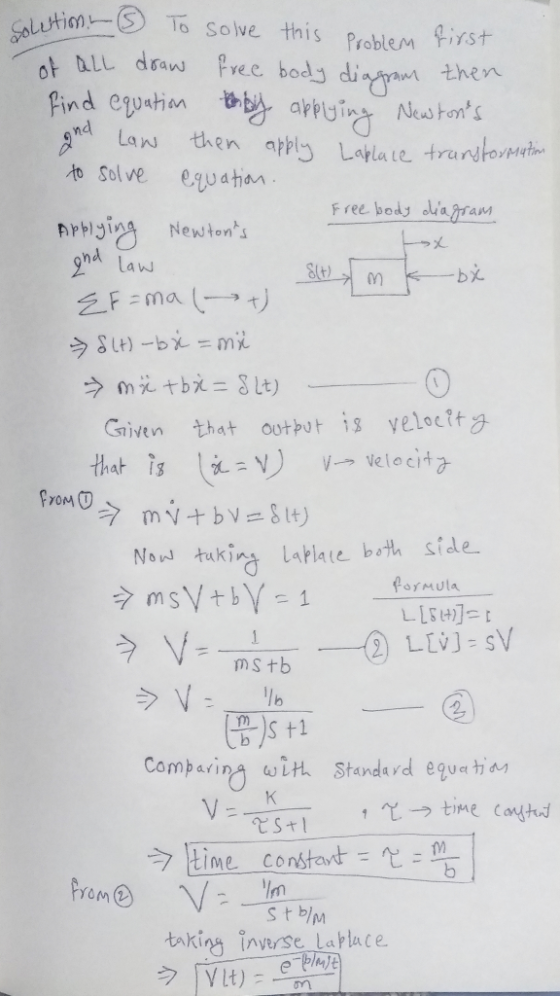

sx solution. To solve this problem first of all draw free body diagram then find equation by applying Newtons and how then a

In case of any query feel free to ask

Answer 2

Similar Homework Help Questions

Determine the time constant and response for the system shown below. Note the input is a...

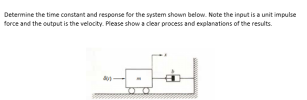

Determine the time constant and response for the system shown below. Note the input is a unit impulse force and the output is the velocity. Please show a clear process and explanations of the results. 8 )
signal and system 8) By using Laplace transform determine the transfer function and the impulse response of the system with equation below. y) is the output and u) is the input to the system + 6 d...

signal and system 8) By using Laplace transform determine the transfer function and the impulse response of the system with equation below. y) is the output and u) is the input to the system + 6 dt2 8) By using Laplace transform determine the transfer function and the impulse response of the system with equation below. y) is the output and u) is the input to the system + 6 dt2
