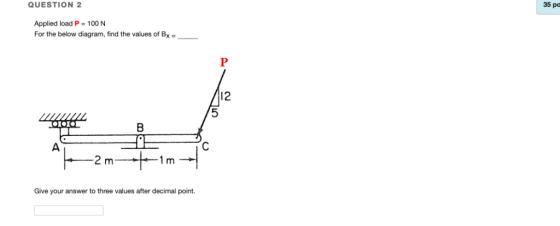

QUESTION 1 Applied load P 100 N For the below diagram, find the values of Ay 12 ー1m Give your answer to three values after deQUESTION 2 35 pa Applied load P- 100 N For the below diagram, find the values of Bx- 12 Give your answer to three values afteQUESTION 3 Applied load P 100 N For the below diagram, find the values of By 12 Give your answer to three values after decima

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

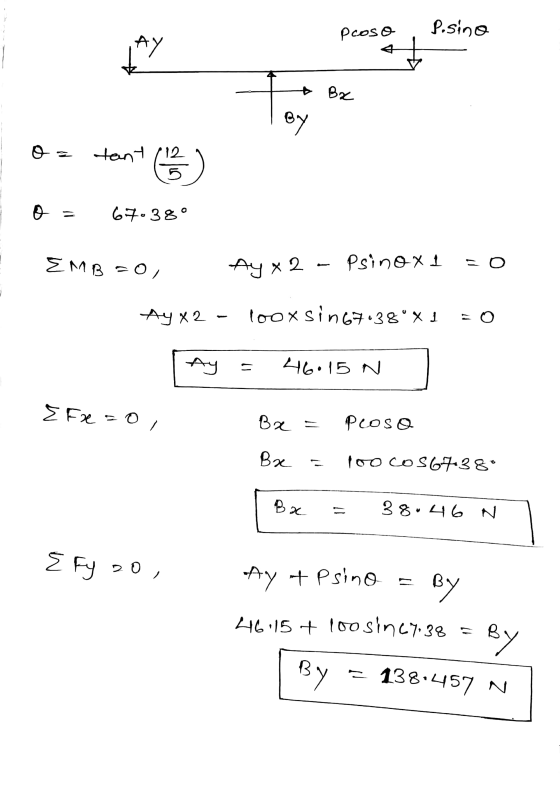

pcoso P.sino AY to * Bx By o = tant ( o 67038° EMB=0, Ay x 2 - Psino x 1 Ay X2 100x sin 67138°*1 = 0 Ay = 46.15 N E F ze = 0,
