Problem 5 Plot V and M diagram using graphic method 3 m 3 m 4 m...

Question

Question

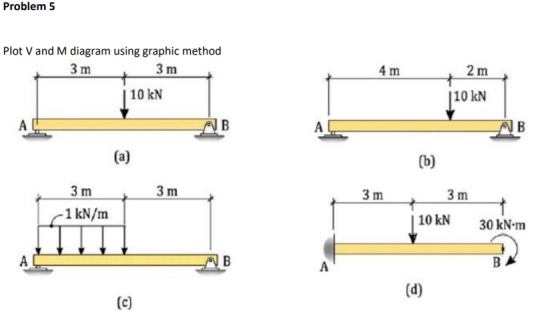

Problem 5 Plot V and M diagram using graphic method 3 m 3 m 4 m 10 kN 10 kN A l 3 m 3 m 1 kN/m 10 kN 30 kN-m

engineering Mechanical-Engineering

Answer 1

Answer #1

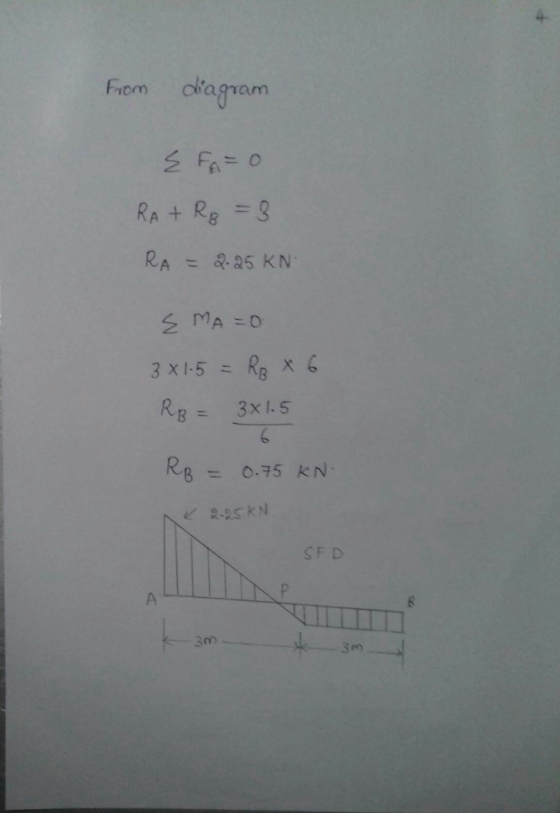

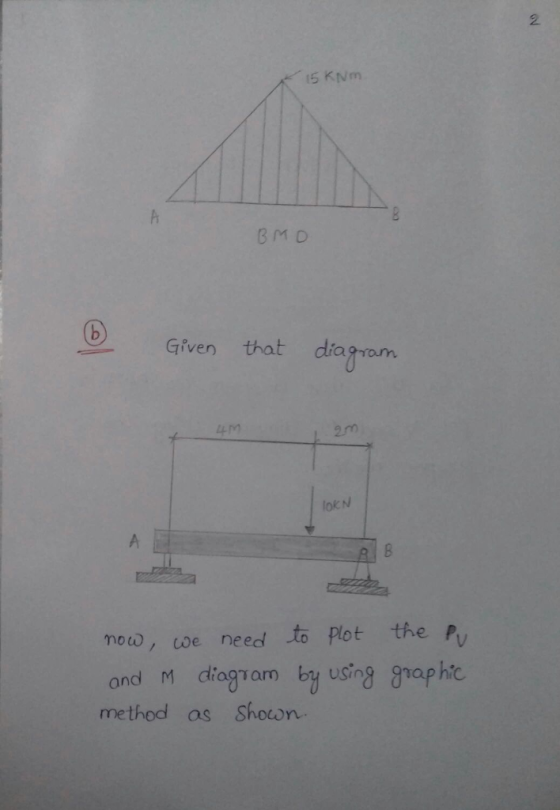

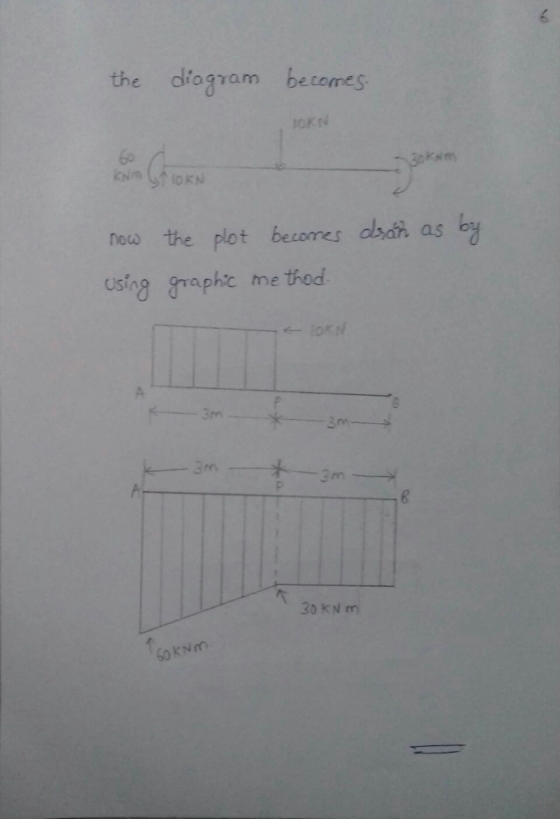

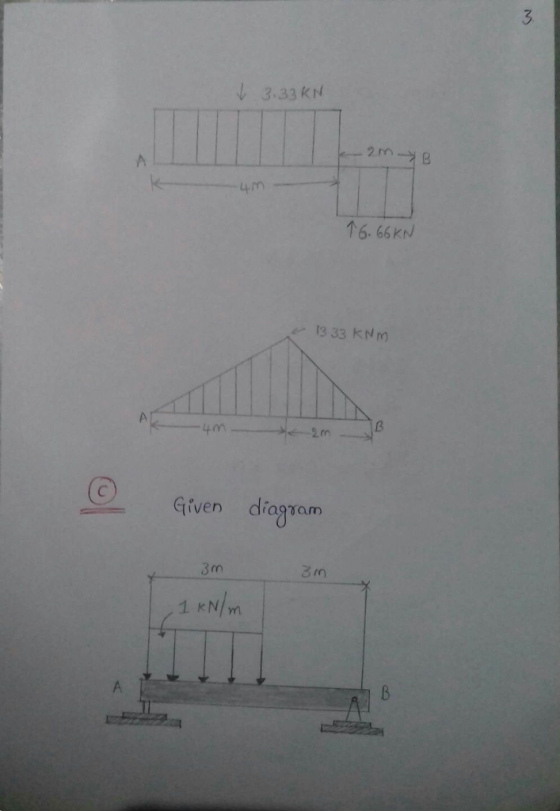

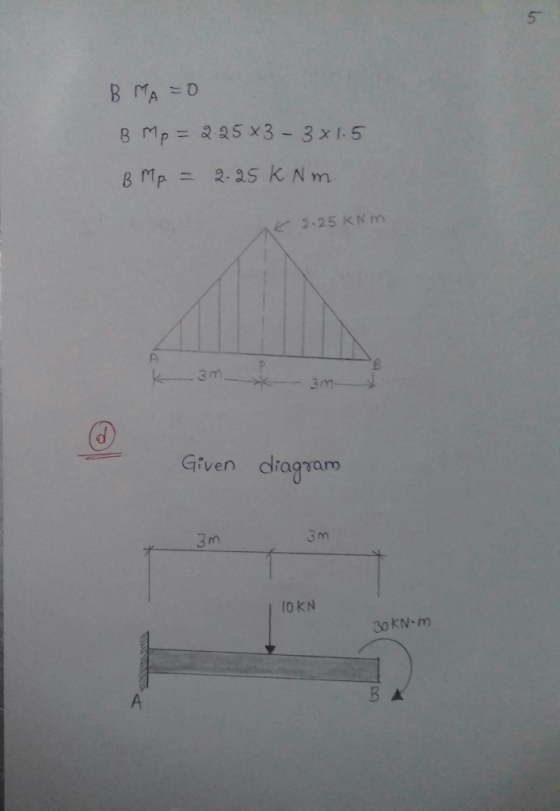

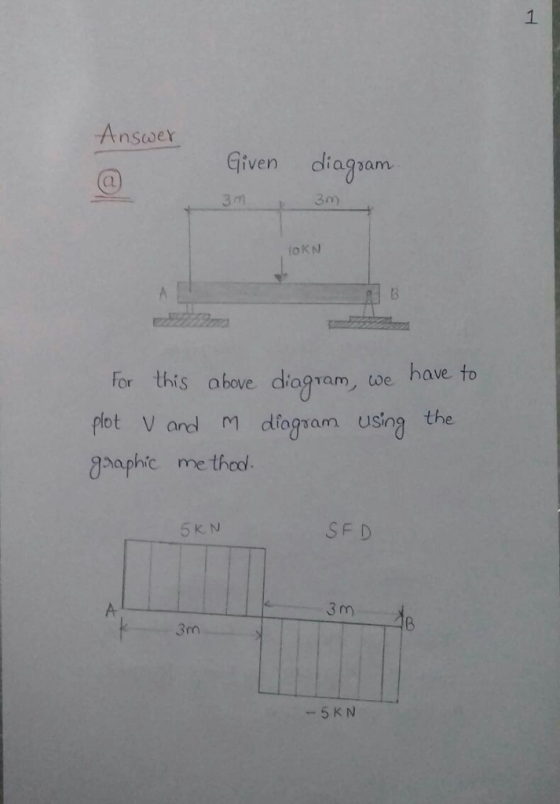

From anam RA R3 8 R. esRN SF D 30m 3 m

Answer 2
