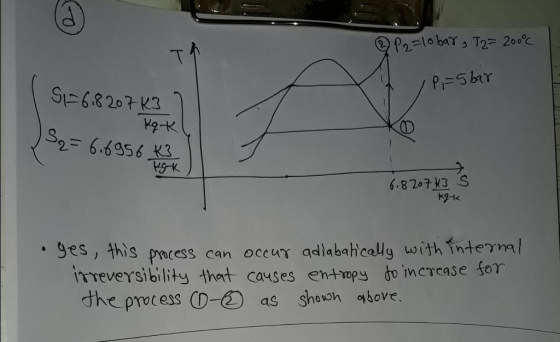

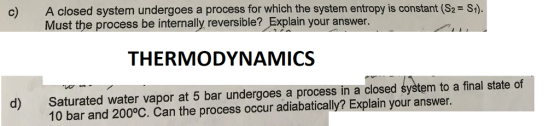

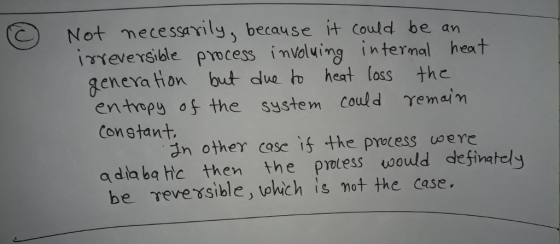

c) A closed system undergoes a process for which the system entropy is constant (S2 S) Must the process be internally reversible? Explain your answer. THERMODYNAMICS d) Saturated water vapor at 5 bar undergoes a process in a closed system to a final state of 10 bar and 200°C. Can the process occur adiabatically? Explain your answer.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
c) A closed system undergoes a process for which the system entropy is constant (S2 S)...
