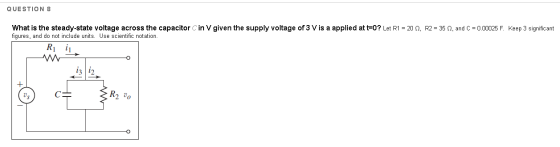

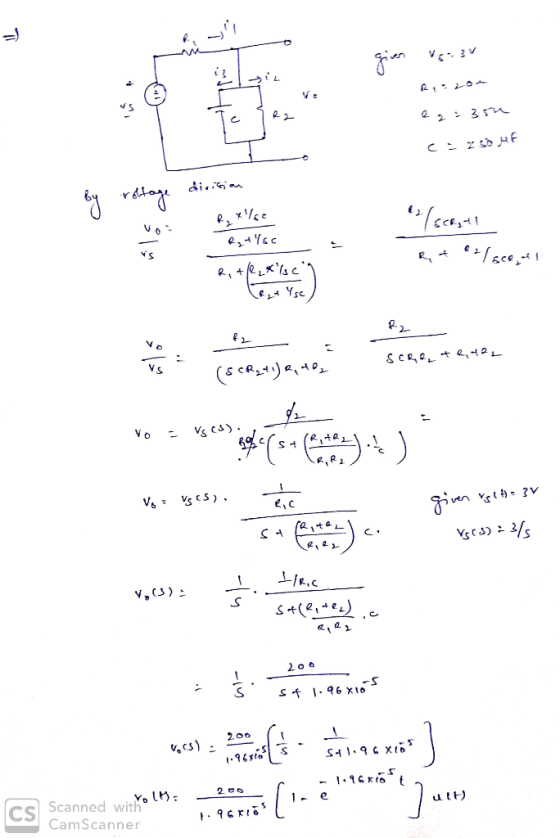

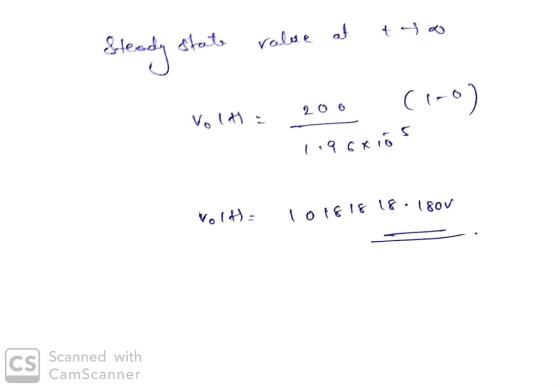

QUESTION 8 What is the steady-state voltage across the capacitor C in V given the supply...
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a f...
explain and show each step please
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
The voltage across a 5 μF capacitor is known to be vc=500te^(−2500t)V for t ≥0, where...
The voltage across a 5 μF capacitor is known to be vc=500te^(−2500t)V for t ≥0, where t is in seconds. Part B Find the power at the terminals of the capacitor when t = 175 μs . Part C Is the capacitor absorbing or delivering power at t = 175 μs ? Is the capacitor absorbing or delivering power at = 175 ? absorbing delivering Part D Find the energy stored in the capacitor at t = 175 μs . Express your...

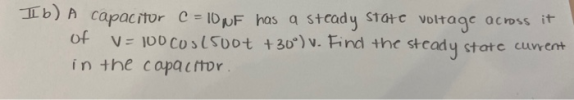

Ib) A capacitor C = 10NF has a stcady sTate voltage across it V= 100 Cos500t...
Ib) A capacitor C = 10NF has a stcady sTate voltage across it V= 100 Cos500t +30°) v. Find the steady state curent in the capactor. of
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the...
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the time constant, and the expression for the natural response of the capacitor voltage, and then to find other circuit quantities such as current,voltage, power, or energy. The natural response of an RC circuit is the response of the capacitor voltage to the sudden removal of a DC source. When this occurs, the capacitor releases its stored energy Figure < 10121〉 t 0 V. Figure...
QUESTION 12 Determine the magnitude of the steady-state root -mean-square voltage across the capacitor in the...
QUESTION 12 Determine the magnitude of the steady-state root -mean-square voltage across the capacitor in the circuit of the figure below. (Select the one best answer from the choices given below) 10? 30 V (rms) ( /102 b. 10 V O c. 15 V od.20 v e, 25 V f. 30V O 8 45 V
Constants The charge on a capacitor increases by 17 C when the voltage across it increases...
Constants The charge on a capacitor increases by 17 C when the voltage across it increases from 96 V to 118 V. Part A What is the capacitance of the capacitor? Express your answer using two significant figures and include the appropriate units.
Problem 3: Find the voltage v,f) across the capacitor as a function of time for i>...
Problem 3: Find the voltage v,f) across the capacitor as a function of time for i> 0 for the circuit below. Assume steady-state conditions exist at r D t-0 10Ω ЗА
A 0.70 F capacitor is connected across an AC generator that produces a peak voltage of...
A 0.70 F capacitor is connected across an AC generator that produces a peak voltage of 21 V. Part A What is the peak current to and from the capacitor if the emf frequency is 100 Hz? Express your answer to two significant figures and include the appropriate units. V Templates Symbols udo redo resat keyboard shortcuts help Value IC = Units Request Answer Submit Part B What the peak to and from the capacitor if the emf frequency is...
For the circuit shown, what is the first order derivative of the voltage across the capacitor...
For the circuit shown, what is the first order derivative of the voltage across the capacitor dV/dt immediately AFTER the switch opens Vs-15V R2-10Q C1-500mF R2 open@t=0 C1 Vs R1 lc O -2 V/s O 2 V/s 6V/s
QUESTION 2 Given the voltage across a 10 uF capacitor is v. = 200.t find the...
QUESTION 2 Given the voltage across a 10 uF capacitor is v. = 200.t find the capacitor current (ic). ic = mA
explain and show each step please
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
ECE211, Steady state: Series RLC circuits, Name Determine the voltage across the capacitor as a function of time for the case: ve(1) v,(t) RLC SERIES
Ib) A capacitor C = 10NF has a stcady sTate voltage across it V= 100 Cos500t +30°) v. Find the steady state curent in the capactor. of
Learning Goal: To analyze an RC circuit to determine the initial voltage across a capacitor, the time constant, and the expression for the natural response of the capacitor voltage, and then to find other circuit quantities such as current,voltage, power, or energy. The natural response of an RC circuit is the response of the capacitor voltage to the sudden removal of a DC source. When this occurs, the capacitor releases its stored energy Figure < 10121〉 t 0 V. Figure...
QUESTION 12 Determine the magnitude of the steady-state root -mean-square voltage across the capacitor in the circuit of the figure below. (Select the one best answer from the choices given below) 10? 30 V (rms) ( /102 b. 10 V O c. 15 V od.20 v e, 25 V f. 30V O 8 45 V
Constants The charge on a capacitor increases by 17 C when the voltage across it increases from 96 V to 118 V. Part A What is the capacitance of the capacitor? Express your answer using two significant figures and include the appropriate units.
Problem 3: Find the voltage v,f) across the capacitor as a function of time for i> 0 for the circuit below. Assume steady-state conditions exist at r D t-0 10Ω ЗА
A 0.70 F capacitor is connected across an AC generator that produces a peak voltage of 21 V. Part A What is the peak current to and from the capacitor if the emf frequency is 100 Hz? Express your answer to two significant figures and include the appropriate units. V Templates Symbols udo redo resat keyboard shortcuts help Value IC = Units Request Answer Submit Part B What the peak to and from the capacitor if the emf frequency is...
For the circuit shown, what is the first order derivative of the voltage across the capacitor dV/dt immediately AFTER the switch opens Vs-15V R2-10Q C1-500mF R2 open@t=0 C1 Vs R1 lc O -2 V/s O 2 V/s 6V/s
QUESTION 2 Given the voltage across a 10 uF capacitor is v. = 200.t find the capacitor current (ic). ic = mA
