QUESTION 7 The net electric potential due to two proton (red dots) at the point P...

Question

Question

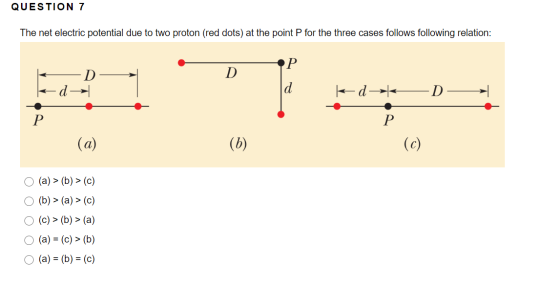

QUESTION 7 The net electric potential due to two proton (red dots) at the point P for the three cases follows following relat

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Chapter 24, Problem 017 In the figure what is the net electric potential at point P...

Chapter 24, Problem 017 In the figure what is the net electric potential at point P due to the four particles if V-0 at infinity, q-6.72 C, and d-4.31 cm? -9 Number Units the tolerance is +/-390 Show Work is REQUIRED for this question: Open Show Work
The figure shows two protons separated by a distant d. Point P is a distance d/4...

The figure shows two protons separated by a distant d. Point P is a distance d/4 from the leftmost charge. If d is equal to 2 nm, what is the magnitude of the net electric field at point P, and which way does it point? proton d/4 Р proton d O 3.3E9N/C, to the right O 7.2E9N/C, to the left O 7.2E9N/C, to the right O 5.1E9N/C, to the left O 5.1E9N/C, to the right
The figure shows two protons separated by a distant d. Point P is a distance d/4...

The figure shows two protons separated by a distant d. Point P is a distance d/4 from the leftmost charge. If d is equal to 2 nm, what is the magnitude of the net electric field at point P, and which way does it point? proton d/4 Р proton d 3.3E9 N/C, to the right 7.2E9 N/C, to the left O 7.2E9 N/C, to the right 5.1E9 N/C, to the left O 5.1E9 N/C, to the right

A proton is released from rest at point A in a constant electric field and accelerates...

A proton is released from rest at point A in a constant electric field and accelerates to point B (see part a of the drawing). An electron is released from rest at point 8 and accelerates to point A (see part b of the drawing). How does the change in the proton's electric potential energy compare with the change in the electrons electric potential energy? O The proton experiences a greater change in electric potential energy, since it has a...
Question 9 In the figure what is the net electric potentia! at point p due to...

Question 9 In the figure what is the net electric potentia! at point p due to the four particles if V-0 at infinity, q 7.24 fC, and d 4.20 cm? -q -9 +9 Number Units the tolerance is +/-596
What is the electric potential at point P? What is the magnitude of the electric field...

What is the electric potential at point P? What is the magnitude of the electric field at point P? Q ...................s+20 Q 0 5. What is the electric potential at point P? (A) Zero (C) 4k01r (D) 5kgir 6. What is the magnitude of the electric field at point (A) Zero (B) ke/r (c) 2ke/r2

Question 2 5 pts The figure below shows a proton and an electron separated by a...

Question 2 5 pts The figure below shows a proton and an electron separated by a distant d. Point P is a distance d/4 from the leftmost charge. If d is equal to 4 nm, what is the magnitude of the net electric field at point P, and which way does it point? proton d/4 Р electron d O 5.1E9 N/C, to the right 5.1E9 N/C, to the left O 7.2E9 N/C, to the right O 1.6E9 N/C, to the...
The electric potential at point P due to the point charges q1 and q2 is the algebraic sum of the potentials due to the individual charges.

The electric potential at point P due to the point charges q1 and q2 is the algebraic sum of the potentials due to the individual charges. Suppose a charge of -2.50 μC is at the origin and a charge of 3.10 μC is at the point (0, 3.00) m. (a) Find the electric potential at (4.00, 0) m, assuming the electric potential is zero at infinity. (b) Find the work necessary to bring a 3.80 μC charge from infinity to the point (4.00,...
The potential at point P in an electric field is 377 V. (Let's denote the electric...

The potential at point P in an electric field is 377 V. (Let's denote the electric potential energy as UE.) (a) What is the electrical potential energy of a proton placed at P, in eV and in joules? UE = UE = (b) What is the electrical potential energy of an electron at P, in eV and in joules? UE = UE =

Find the potential at point P as indicated in the following picture. Question 4 on image....

Find the potential at point P as indicated in the following picture. Question 4 on image. 7:19 O tamiu.blackboard.com ILS EWU LICITIUURINN Lidic). WHILI system of charges? 3. A long, cylindrical wire with a radius o density of p = ks. Find the electric fi la of the wire. 4. Find the potential at point P as indica e picture. c) Uniform rface charge 5. Find the electric field inside each cavity metal sphere using the figure below. 6. Two...
