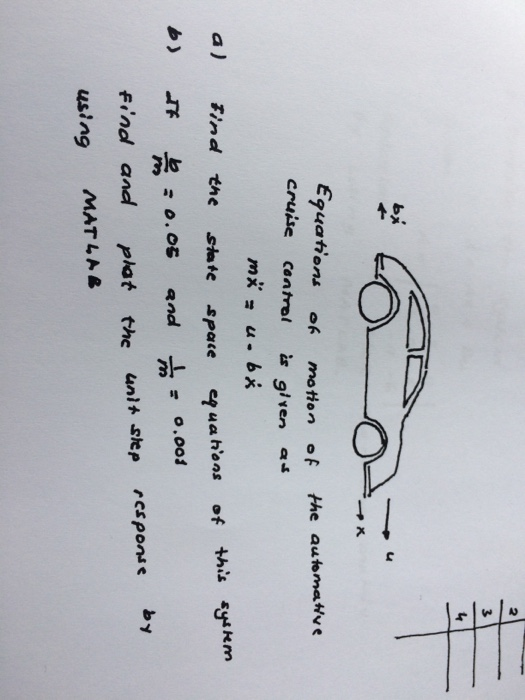

bi E9uaions o moton .f the automatve cruise central s glven a -o.oos plat the unit...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

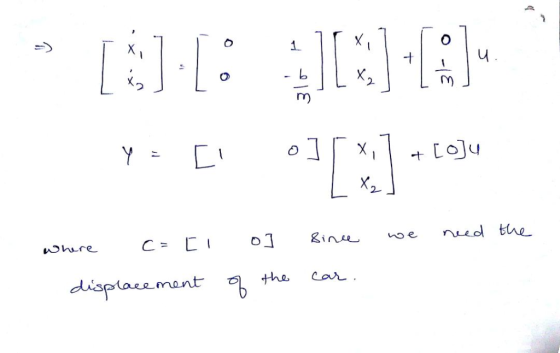

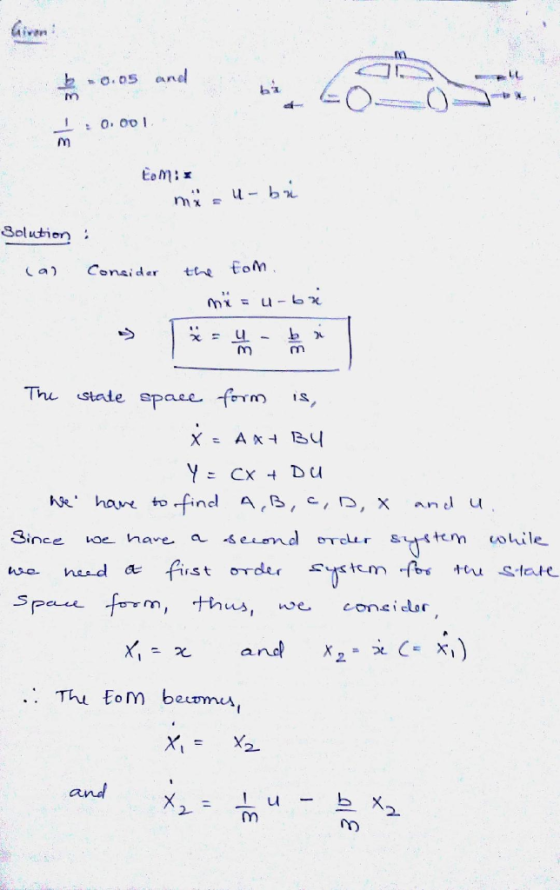

上”σ.05 and Im 8olutien C Consider tt FoM Thu state epace erm is 2- 2

MATLAB Script:

clear
clc

A = [0 1; 0 -0.05];

B = [0; 0.001];

C = [1 0];

D = 0;

sys = ss(A,B,C,D);

step(sys)

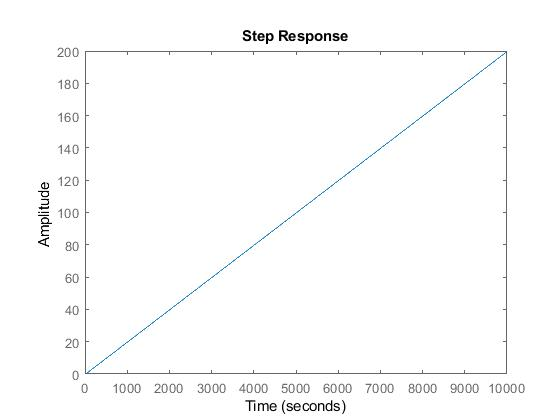

Step response graph

Add a comment
