VDD Problem 3: The drain current Io through MN and Mp is 0.5mA. Please calculate (1)...

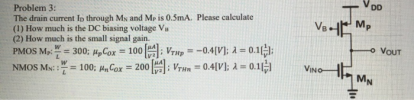

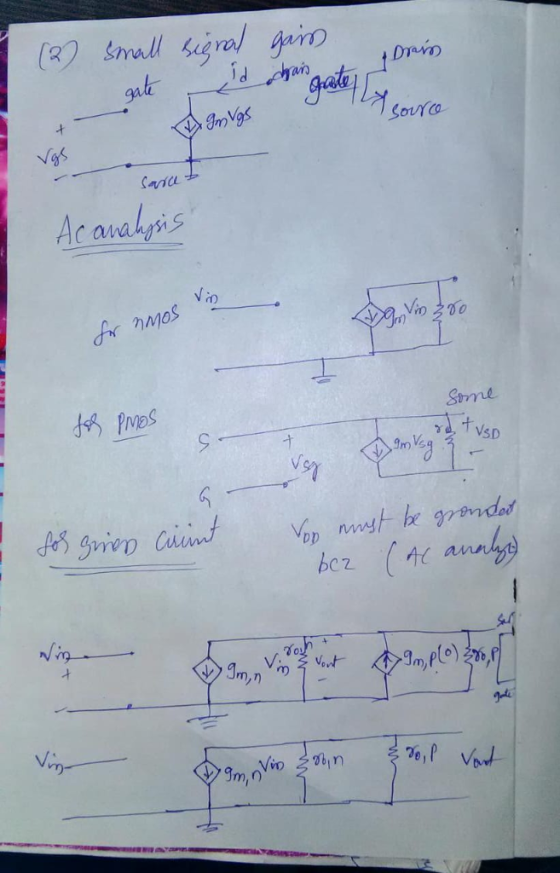

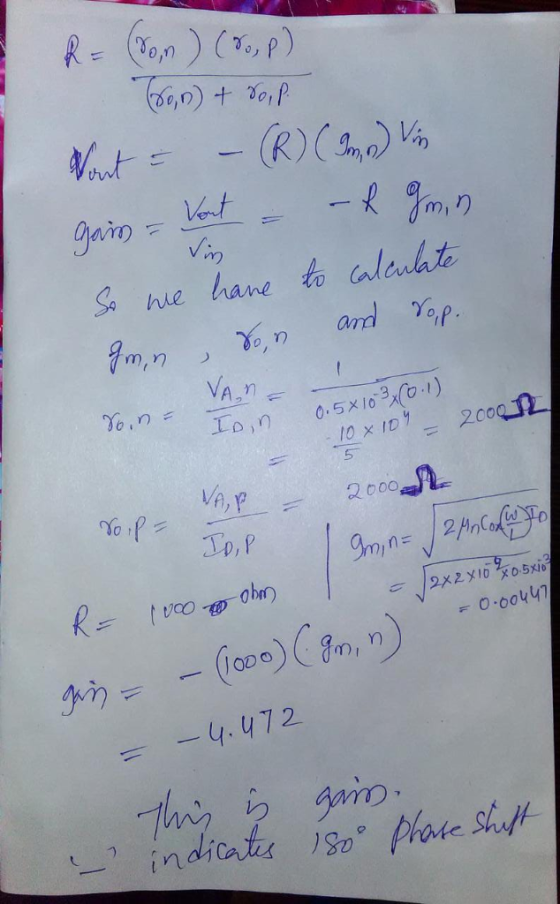

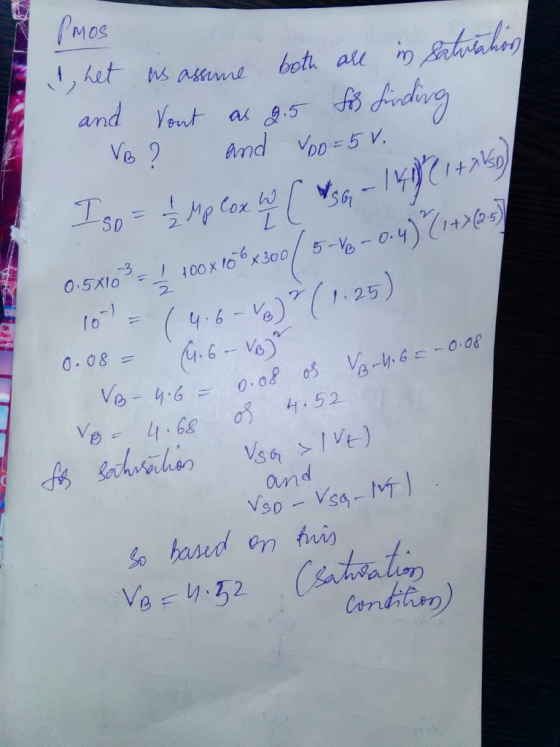

Problem 3: The drain current Ip through Ms and Mp is 0.5mA. Please calculate (1) How much is the DC biasing voltage Vs (2) How much is the small signal gain.
Can you explain where the negative on the equation VGs = -(0.2
+Vthp) = -0.6 and explain the equation of vb = vg = vs - 0.6
And also why are we using the gm of pmos and not the nmos

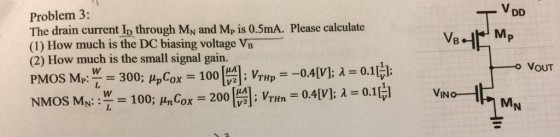

Problem 3 The drain current Ip through MN and Mp is 0.5mA. Please calculate (1) How much is the DC biasing voltage VB (2) How much is the small signal gain. w= 300; μ.cox = 1001쓺1 ; VrHp VouT...
L = 90nm, Veff = 0.2V at 100uA of drain current. also Vbias =
0.6V
Kn-μ.co.-280 μΑ/V2, k',-HoCo.-70 μΑ/V2, VDD-1.2 V Vro.N=0.4V, VrJF-0.4V, PHE 120 0.8V for N and P, γ=0.35 Vos, λし=0.1 um/V, VuN=inf.. For the circuit on the right, assume W and L values from (1) Discuss how the DC values of Vout and drainVin current relate to the DC values of Vbias and Vin Calculate the DC value of Vout, when Vin,dc-0.6V. (does this circuit have the...
Please show step on how to solve this.
Problem 4 Assume the current through M1 and Q1, M2 and Q1 is lmA.Voc.bias (1). Please calculate the small-signal resistance r and r2 (2). Please calculate the small-signal gain in both case (a) and VDC,bias M Vout r Vout Vin Vin MI (NMOS) M2 (PMOS) Q1 (NPN) ls = 1 × 10-18[A]. β 100, va = 100[V],
Problem 4 Assume the current through M1 and Q1, M2 and Q1 is lmA.Voc.bias (1)....
can you do the calculation of the three parts, don’t do the
somulation or ads i just need the calculation
3) (a) Consider the following circuit which you might have seen it previously in digital courses as an inverter (NOT) block. In this problem, on the other hand, we would like to treat it as an analog amplifier. Taking channel-length modulation into account ( 0), calculate the small signal gain. (b) Using DC simulation in ADS (Model-I), given (w/L),-50μmO.5μm,VDD =...
Problem 10: Consider the differential stage biased by current mirror and loaded with capacitor. MOSFET parametes: Vr-1 V; VA-; (W/L)*kn-2 mA/V; negligible internal capacitances. 5V 8k 10k 5n Vout 5V Find 1. 2. 3. DC voltage at the output; Low frequency small signal voltage gain Vout/Vin; High frequency 3 dB cutoff.
Problem 10: Consider the differential stage biased by current mirror and loaded with capacitor. MOSFET parametes: Vr-1 V; VA-; (W/L)*kn-2 mA/V; negligible internal capacitances. 5V 8k 10k 5n Vout...
Please just a walk through guide with formulas and
steps.
Problem 1. For the differential amplifier of Figure P-1, it is given that RA-RB-602, R2-302, RSA-RsB 3kS2, R 6kS2. To calculate bias currents, you may assume that K, = and β = oo . Also I'm = ν,,-IV (DC). You may make reasonable approximations to obtain answers accurate to 10% . Find the bias current Ic3 b) Find the bias voltages at VoUT, VE1, and Vcs c) Find the small-signal...
Question 1 Please show all steps and explanations For the circuit shown below, calculate the DC voltages at the collectors of Q and Q2 and the small signal voltage gain PeAlso calculate Rin and Rout s 10V and VEE-10V Vini 5K 5K 60K 0.1uF 0.1uF VouT 10K 1K 絮影
Question 1 Please show all steps and explanations For the circuit shown below, calculate the DC voltages at the collectors of Q and Q2 and the small signal voltage gain PeAlso...
Problem 1 -Integrated Common Source Amplifier: For the circuit in Fig.1, draw the small signal equivalent circuit and find the following small signal values: gm1 go1 go2 Vout/Vin Rout You can assume that the overdrive voltage for all transistors is 0.2V and A for the NMOS and PMOS are 0.1V1 and 0.05V1 respectively. The drain source current of the transistors M1 and M2 is 20HA. All gate lengths of homework 3.) 0.5um. (The DC analysis for this circuit was done...
1-Clear handwriting
2-Correct answer
3-Organized
4-answer all the questions
Please
Problem 2 On the circuit on Figure P2, transi stor Q1 has a threshold voltage of Vt = 2 V and a transconductance parameter of k = 100 mA/V2. Note that Vcc = -Vee = 4.5 V. Moreover, capacitors C1, C2, and C3 can be assumed to be very large VDD 4.5.0 R3 25kQ R1 300kn C2 Vout C1 Rsig Q1 1k0 R2 200kn Vsig (R4 2kQ C3 -4.5V VSS...
