Homework Answers

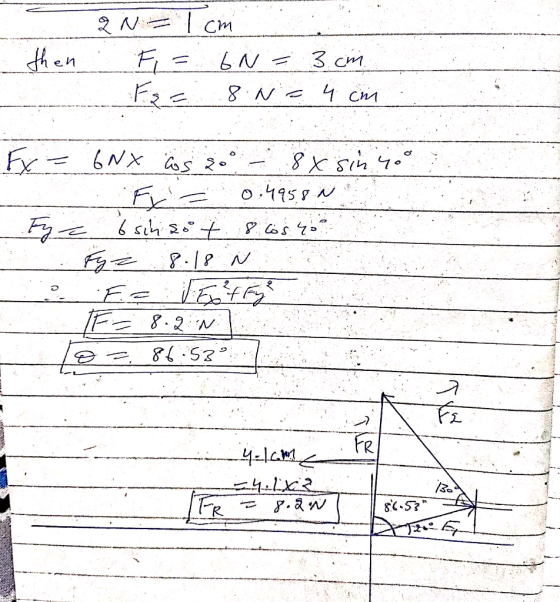

Here is the solution with both graphical and components method. I got very very accurate results as you can see...
5. 3. State the magnitude and direction of each of the vectors given below. a) r--30...
5.
3. State the magnitude and direction of each of the vectors given below. a) r--30 m (displacement vector) b) v 60 m/s west (velocity vector) c) F 20 N at-45° (force vector) d) p50 kg m/s at 25° (linear momentum vector) 4. Provide a graphical example of a 1-dimensional vector (ID) and one of a 2- dimensional vector (2D). Be sure to include reference axes with labels in each case. 5. 1D Vectors. Let vector A +3 units and...
3. 3. State the magnitude and direction of each of the vectors given below. a) r-30...
3.
3. State the magnitude and direction of each of the vectors given below. a) r-30 m (displacement vector) b) v 60 m/s west (velocity vector) c) F-20N at-45° (force vector) d) p50 kg /s at 25° (linear momentum vector) 4. Provide a graphical example of a 1-dimensional vector (ID) and one of a 2- dimensional vector (2D). Be sure to include reference axes with labels in each case. 5. 1D Vectors. Let vector A +3 units and let vector...
1. Consider the diagram showing two force vectors: a) If vector FA represents 75 N, use...
1. Consider the diagram showing two force vectors:
a) If vector FA represents 75 N, use a ruler to measure the length
of FA on the diagram and determine the scale factor in cm/N.
b) Use your ruler to measure FB and then use the scale factor from
part a) to find the magnitude of FB.
c) Use the parallelogram method to draw (and label) the resultant
force, FR. Measure FR with your ruler to find the magnitude of the...
Name Instractor Pre-lab Assignment- Experiment 3 Addition of Forces Vector addirion can either be done by...
Name Instractor Pre-lab Assignment- Experiment 3 Addition of Forces Vector addirion can either be done by tn lab gives practice with both methods or it cam be done graphically, using a ruler and protractor. This 1. Consider the diagram showing two force vectors: Gem a) (2 pts) If vector Fa represents 75 N, use a ruler to measure the length of F on the diagrarm and determine the scale factor in em/N. 75N b) (2 pts) Use your ruler to...
please answer without using calculus q1 6) For the figure shown in Fig. 1, -20 nC,...
please answer without using calculus
q1 6) For the figure shown in Fig. 1, -20 nC, q2-50 nC, q3-30 nC Size a is 2.4 cm, and side b is 5.5 cm Use the following steps to find the magnitude and direction (angle) of the net force on q3. Be sure to draw and label the forces, showing their directions. Also draw and label the components of the forces In your calculations, show the calculation of the components clearly. q 43...
show steps Force Vector Directed along a Line Learning Goal: To find a force's directional components...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
The Force Table - Vector Addition and Resolution "Vectors? I don't have any vectors, I'm just a kid.&#...
The Force Table - Vector Addition and Resolution "Vectors? I don't have any vectors, I'm just a kid."-From Flight of the Navigator PURPOSE To observe how forces acting on an object add to produces a net, resultant force To see the relationship between the equilibrant force relates to the resultant force To develop skills with graphical addition of vectors and vector components To develop skills with analytical addition of vectors and vector components EXPLORE THE FORCE TABLE APPARATUS; THEORY 490...
Ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-...
how do you do 7 and 8 ?
ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-components of the resultant vector. B) Break the (given) vectors down into their x-, y, and 2-componerto c) Combine total x, y-, and z-components using Pythagorean Thetee sine the resultant vector and use tangent to determine its angle. and cosines nd the magnitude of Graphical Representation of Vectors You will need o ruler, graph poper,...
magnitudes of R's 12. You've found experimentally and graphically bow to add the forces Fi and...
magnitudes of R's 12. You've found experimentally and graphically bow to add the forces Fi and F,to produce the resultant, R. Now let's try analytical addition Using the table provided, find the componeats of F and Fa and add them to fiad the components of R. Use these components of R to determine the smagaitade and directioa of R. Note that one of the four compoaents will have a negative sign. The components now displayed on the force table should...
Show all workout please. 2. v . F3 600 N F, 700 N 450 F2 -900...
Show all workout please.
2. v . F3 600 N F, 700 N 450 F2 -900 N o Resolve each force acting on the gusset plate into its x and y components, and express the force Fi as a Cartesian vector o Express the force F2 as a Cartesian vector o Express the force F3 as Cartesian vector 。The magnitude ofthe resultant force, FR IN i+l j) N j) N o The direction of the resultant force, measured counterclockwise from...
5.
3. State the magnitude and direction of each of the vectors given below. a) r--30 m (displacement vector) b) v 60 m/s west (velocity vector) c) F 20 N at-45° (force vector) d) p50 kg m/s at 25° (linear momentum vector) 4. Provide a graphical example of a 1-dimensional vector (ID) and one of a 2- dimensional vector (2D). Be sure to include reference axes with labels in each case. 5. 1D Vectors. Let vector A +3 units and...
3.
3. State the magnitude and direction of each of the vectors given below. a) r-30 m (displacement vector) b) v 60 m/s west (velocity vector) c) F-20N at-45° (force vector) d) p50 kg /s at 25° (linear momentum vector) 4. Provide a graphical example of a 1-dimensional vector (ID) and one of a 2- dimensional vector (2D). Be sure to include reference axes with labels in each case. 5. 1D Vectors. Let vector A +3 units and let vector...
1. Consider the diagram showing two force vectors:
a) If vector FA represents 75 N, use a ruler to measure the length
of FA on the diagram and determine the scale factor in cm/N.
b) Use your ruler to measure FB and then use the scale factor from
part a) to find the magnitude of FB.
c) Use the parallelogram method to draw (and label) the resultant
force, FR. Measure FR with your ruler to find the magnitude of the...
Name Instractor Pre-lab Assignment- Experiment 3 Addition of Forces Vector addirion can either be done by tn lab gives practice with both methods or it cam be done graphically, using a ruler and protractor. This 1. Consider the diagram showing two force vectors: Gem a) (2 pts) If vector Fa represents 75 N, use a ruler to measure the length of F on the diagrarm and determine the scale factor in em/N. 75N b) (2 pts) Use your ruler to...
please answer without using calculus
q1 6) For the figure shown in Fig. 1, -20 nC, q2-50 nC, q3-30 nC Size a is 2.4 cm, and side b is 5.5 cm Use the following steps to find the magnitude and direction (angle) of the net force on q3. Be sure to draw and label the forces, showing their directions. Also draw and label the components of the forces In your calculations, show the calculation of the components clearly. q 43...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
The Force Table - Vector Addition and Resolution "Vectors? I don't have any vectors, I'm just a kid."-From Flight of the Navigator PURPOSE To observe how forces acting on an object add to produces a net, resultant force To see the relationship between the equilibrant force relates to the resultant force To develop skills with graphical addition of vectors and vector components To develop skills with analytical addition of vectors and vector components EXPLORE THE FORCE TABLE APPARATUS; THEORY 490...
how do you do 7 and 8 ?
ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-components of the resultant vector. B) Break the (given) vectors down into their x-, y, and 2-componerto c) Combine total x, y-, and z-components using Pythagorean Thetee sine the resultant vector and use tangent to determine its angle. and cosines nd the magnitude of Graphical Representation of Vectors You will need o ruler, graph poper,...
magnitudes of R's 12. You've found experimentally and graphically bow to add the forces Fi and F,to produce the resultant, R. Now let's try analytical addition Using the table provided, find the componeats of F and Fa and add them to fiad the components of R. Use these components of R to determine the smagaitade and directioa of R. Note that one of the four compoaents will have a negative sign. The components now displayed on the force table should...
Show all workout please.
2. v . F3 600 N F, 700 N 450 F2 -900 N o Resolve each force acting on the gusset plate into its x and y components, and express the force Fi as a Cartesian vector o Express the force F2 as a Cartesian vector o Express the force F3 as Cartesian vector 。The magnitude ofthe resultant force, FR IN i+l j) N j) N o The direction of the resultant force, measured counterclockwise from...
