Calculate the force in member :
AB, AF, BC, BE, BF, CD, CE, DE, EF, FG
Homework Answers

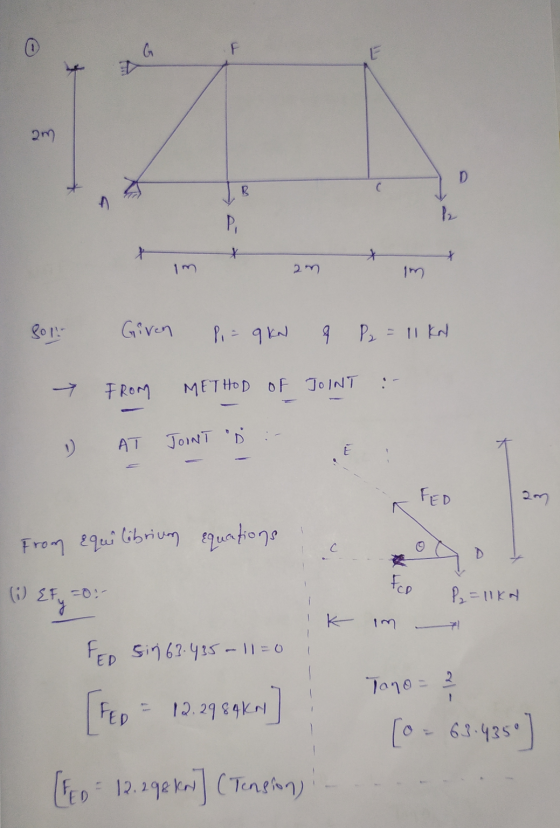

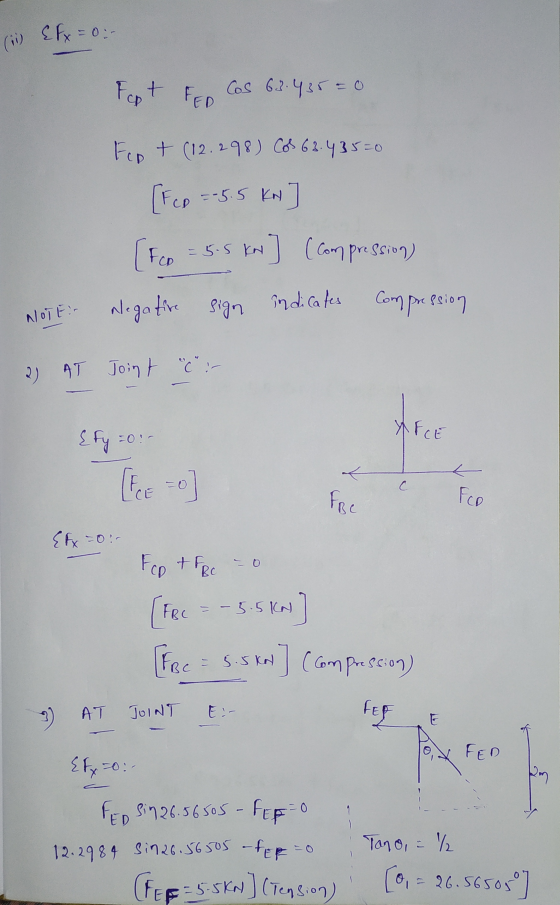

1.

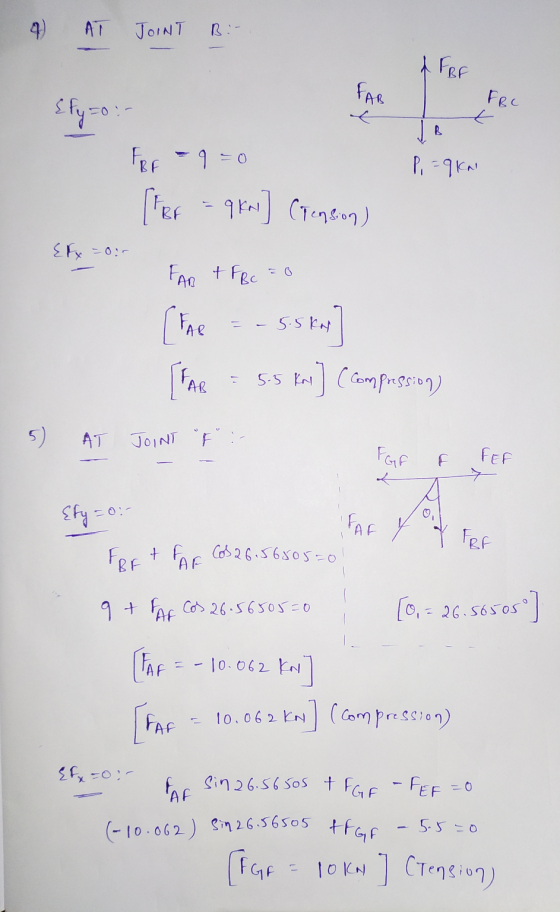

2.![4) AT JOINT B :- AFBE FBC t Efy=o:- FRE - q=0 [her 9 Kai] (Tension) Efx = 0 FAR + FRc =0 -5.5kn [FAL [FAR . 5.5 Kn (compressi](http://img.homeworklib.com/questions/9636e2c0-828f-11eb-b551-830585435ca5.png?x-oss-process=image/resize,w_560)
Add Answer to:
Calculate the force in member :
AB, AF, BC, BE, BF, CD, CE, DE, EF, FG...

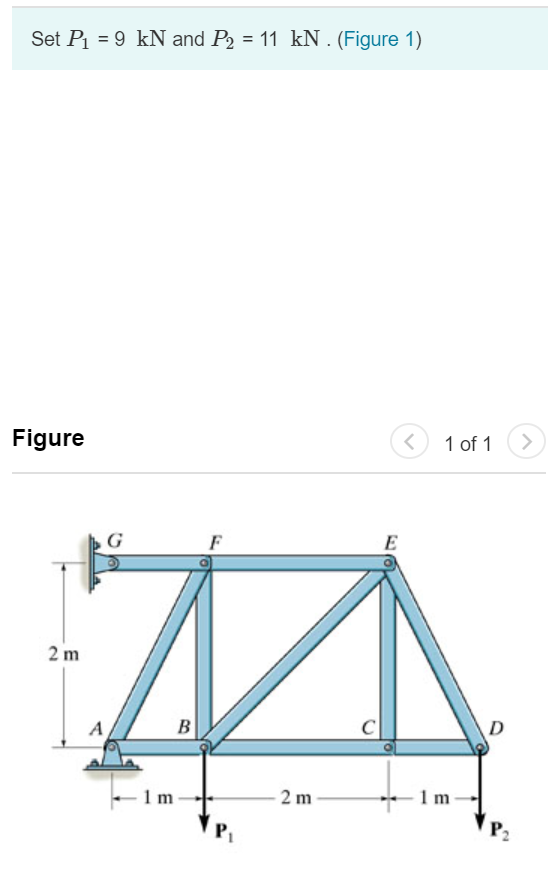

Set P1 = 8 kN and P2 = 11 kN . Determine the force in member...
Set P1 = 8 kN and P2 = 11 kN .
Determine the force in member AB,AF,BC,BF,CD,CE,DE,EF,and FG and
state if the member is in tension or compression.
OK - 2m - -1 m
Find force in AB,AD,AG,BF,BG,CD,CE,CF,DE,FG,EF Review Consider the truss shown in (Figure 1). Suppose that P1-7 k...
Find force in
AB,AD,AG,BF,BG,CD,CE,CF,DE,FG,EF
Review Consider the truss shown in (Figure 1). Suppose that P1-7 k and P2-2.8 k. Assume all members are pin connected gure く 1of1 6 ft 6ft 4 ft 4 ft
1)Determine the force in member AB, and state if the member is in tension or compression....
1)Determine the force in member AB, and state if the member is
in tension or compression.
2)Determine the force in member AF, and state if the member is
in tension or compression.
3)Determine the force in member BC, and state if the member is
in tension or compression.
4)Determine the force in member BE, and state if the member is
in tension or compression.
5)Determine the force in member BF, and state if the member is
in tension or compression....
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI, DE, DF, EF,...
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Determine forces on members AB,AD,AG,BF,BG,CD,CE,CF,DE,EF,and FG please! Also specify if compression or tension.
Determine forces on members
AB,AD,AG,BF,BG,CD,CE,CF,DE,EF,and FG please! Also specify if
compression or tension.
referring to the truss below , determine reactions and force in member BC, CE, CD, EF...
referring to the truss below , determine reactions and force
in member BC, CE, CD, EF and GF.
1 kN D90 30 12 m
Determine the force in member CD Determine the force in member CF Determine the force in member FG.
Determine the force in member CD
Determine the force in member CF
Determine the force in member FG.
Determine the force in each member of the truss. Set P 33 kN, P2 20 kN 2 m トー1 .5 m -1.5m+1.5m- _1.5 m
Determine the force in each member of the truss. Set P 33 kN, P2 20 kN 2 m トー1 .5 m -1.5m+1.5m- _1.5 m
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the m...
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. kN AB Previous Answers Request Answer Figure XIncorrect; Try Again; 2 attempts remaining Part B Determine the force in member AF, and state if...
5. Determine the force in bars AB, BC, CD, and EF for the truss shown. Indicate...
5. Determine the force in bars AB, BC, CD, and EF for the truss shown. Indicate if the bars are in tension or compression. The constraint at A is a pin and the constraint at M is a roller. 15 kip 15 kip Share Km 9 ft ft 9 ft-qan 9 ft maffam 9 ft --
Calculate the force in member FG,EF and FC by the method of joints in kN Question...
Calculate the force in member FG,EF and FC by the method of
joints in kN
Question 4 10 poin Calculate the force in member AB by the method of joints in kN. [ Compression: negative. Tension: positive] E 4 meters F 4 meters G 2 meters H →30 kN 3 meters U 3 meters A 2 meters 4 meters 4 meters 30 kN 30 KN 60 kN
Set P1 = 8 kN and P2 = 11 kN .
Determine the force in member AB,AF,BC,BF,CD,CE,DE,EF,and FG and
state if the member is in tension or compression.
OK - 2m - -1 m
Find force in
AB,AD,AG,BF,BG,CD,CE,CF,DE,FG,EF
Review Consider the truss shown in (Figure 1). Suppose that P1-7 k and P2-2.8 k. Assume all members are pin connected gure く 1of1 6 ft 6ft 4 ft 4 ft
1)Determine the force in member AB, and state if the member is
in tension or compression.
2)Determine the force in member AF, and state if the member is
in tension or compression.
3)Determine the force in member BC, and state if the member is
in tension or compression.
4)Determine the force in member BE, and state if the member is
in tension or compression.
5)Determine the force in member BF, and state if the member is
in tension or compression....
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Determine forces on members
AB,AD,AG,BF,BG,CD,CE,CF,DE,EF,and FG please! Also specify if
compression or tension.
referring to the truss below , determine reactions and force
in member BC, CE, CD, EF and GF.
1 kN D90 30 12 m
Determine the force in member CD
Determine the force in member CF
Determine the force in member FG.
Determine the force in each member of the truss. Set P 33 kN, P2 20 kN 2 m トー1 .5 m -1.5m+1.5m- _1.5 m
Determine the force in each member of the truss. Set P 33 kN, P2 20 kN 2 m トー1 .5 m -1.5m+1.5m- _1.5 m
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. kN AB Previous Answers Request Answer Figure XIncorrect; Try Again; 2 attempts remaining Part B Determine the force in member AF, and state if...
5. Determine the force in bars AB, BC, CD, and EF for the truss shown. Indicate if the bars are in tension or compression. The constraint at A is a pin and the constraint at M is a roller. 15 kip 15 kip Share Km 9 ft ft 9 ft-qan 9 ft maffam 9 ft --
Calculate the force in member FG,EF and FC by the method of
joints in kN
Question 4 10 poin Calculate the force in member AB by the method of joints in kN. [ Compression: negative. Tension: positive] E 4 meters F 4 meters G 2 meters H →30 kN 3 meters U 3 meters A 2 meters 4 meters 4 meters 30 kN 30 KN 60 kN
