You are in your favorite elevator, coming to a stop as you go from the ground...
You are in your favorite elevator, coming to a stop as you go from the ground floor to the 4th floor.
a) What forces are acting on you as you are coming to a
stop in the elevator?
Normal force upward and Force of gravity upward
Normal force downward and Force of gravity upward
Normal force downward and Force of gravity downward
Normal force upward and Force of gravity downward
Just the Force of gravity downward
b) As you are coming to a stop, are you accelerating and
if so, which way are you accelerating?
No, there is no acceleration
Yes, accelerating downward
Yes, accelerating upward
c) As you are coming to a stop, what is the direction of
the net force acting on you?
Downward, since the velocity points down.
Upward, since the velocity points up.
Downward, since the acceleration points down.
The net force is zero, so it has no direction.
Upward, since the acceleration points up.
d) What is the correct expression for Newton's 2nd Law
in the y-direction? Use "upward" for the positive
y-direction.
|Fg| = m
ay
−|FN| −
|Fg| = m
ay
|FN| −
|Fg| = m
ay
|FN| +
|Fg| = m
ay
|FN| +
|Fg| = 0
e) As you are coming to a stop going from the ground
floor to the 4th floor, how does the size of the Normal force on
you compare with the size of your weight?
|FN| = mg
|FN| > mg, but not
zero
Impossible to tell without knowing your acceleration.
|FN| < mg
|FN| = 0

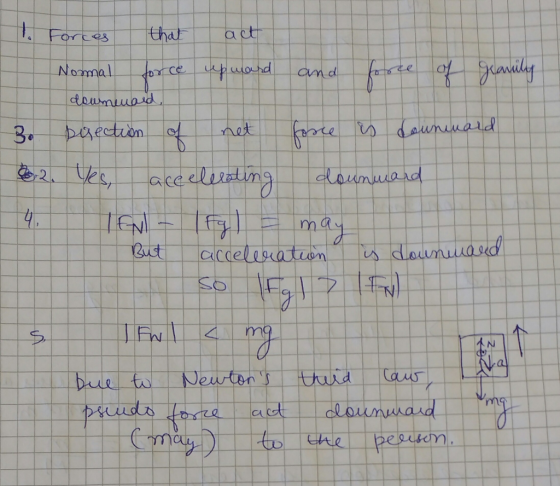

Homework Answers
Add Answer to:
You are in your favorite elevator, coming to a stop as you go
from the ground...
A simple elevator ride can teach you quite a bit about the normal force as this...
A simple elevator ride can teach you quite a bit about the normal force as this rider below can (hopefully) tell you. There are three different scenarios given, detailing the rider\'s experience in an unnamed hotel. For each scenario, calculate the normal force, FN,1-3, acting on the rider if his mass is m = 76.6 kg and the acceleration due to gravity g = 9.81 m/s2. In scenario 1, the elevator has constant velocity. In scenario 2 the elevator is moving...
(a) An elevator of mass m moving upward has two forces acting on it: the upward force of tension in the cable and the d...
(a) An elevator of mass m moving upward has two forces acting on it: the upward force of tension in the cable and the downward force due to gravity. When the elevator is accelerating upward, which is greater, T or w? T w Both forces are equal. (b) When the elevator is moving at a constant velocity upward, which is greater, T or w? T w Both forces are equal. (c) When the elevator is moving upward, but the acceleration...
E. Suppose you are standing on the scale in the elevator and the elevator is accelerating...
E. Suppose you are standing on the scale in the elevator and the
elevator is accelerating downward with
an acceleration smaller than 9.8 m/s2
i. Draw free-body diagrams of yourself, the scale, and the floor
of the elevator where it interacts
with the scale.
ii. How must the magnitude of the force exerted by the scale on
you compare with your own
weight?
iii. How must the reading on the scale compare with the reading
you make when the elevator...
(a) An elevator of mass m moving upward has two forces acting on it: the upward...
(a) An elevator of mass m moving upward has two forces acting on it: the upward force of tension in the cable and the downward force due to gravity. When the elevator is accelerating upward, which is greater, T or w? Tw Both forces are equal. (b) When the elevator is moving at a constant velocity upward, which is greater, T or w? Tw Both forces are equal. (c) When the elevator is moving upward, but the acceleration is downward, which is...
You are conducting an experiment inside an elevator that can move in a vertical shaft. A...
You are conducting an experiment inside an elevator that can move in a vertical shaft. A load is hung vertically from the ceiling on a string. The tension in the string is measured to be exactly equal to the force due to gravity on the load. No other forces are acting on the load. Which of the following statements about the elevator are correct? Check all that apply. The elevator is an inertial frame of reference. The elevator is not...
012 10.0 points A person weighing 0.7 kN rides in an elevator that has a downward...
012 10.0 points A person weighing 0.7 kN rides in an elevator that has a downward acceleration of 2.5 m/s2. The acceleration of gravity is 9.8 m/s2 What is the magnitude of the force of the 它自 35 PM ort sc delete homen ro 6 + backspace ock 8 4 pause elevator floor on the person? Answer in units of kN 013 (part 1 of 2) 0.0 points A 4.1 kg object is suspended by a string from the ceiling...
this is the whole question which has 17 parts. I only need question (9-17) 6. A...
this is the whole question which has 17 parts. I only need
question (9-17)
6. A 50.0 kg man standing on a spring scale takes a descending elevator ride (DOWNWARD). Starting from the rest, the elevator descends, attaining a maximum speed of 6.0 m/s in 2.0 seconds. Then the elevator travels with this constant speed of 6.0 m/s for 10.0 seconds. Lastly, it takes the elevator 3.0 second to make a complete stop. Based on the information above, answer the...
You are standing in an elevator with a 20.0 kg child on your shoulders. The elevator...
You are standing in an elevator with a 20.0 kg child on your shoulders. The elevator is traveling upward at a velocity of 2.00 m/s and an acceleration of -1.00 m/s2 . Your mass is 60.0 kg; the elevator mass is 1200.0 kg. 1) What is the tension in the cable that supports the elevator? For this question, I found that the tension was smaller than the downward force. How can this be possible with the elevator having an upward...
bailof mass M is suspended by a thin string (of negligible mass) from the ceiling of...
bailof mass M is suspended by a thin string (of negligible mass) from the ceiling of an elevator. The vertical motion of the elevator as it travels up and down is descnibed in the statements below. Indicate for each of the situations described the relation between value of the tension in the cable, T, and the weight of the ball, Mg, or whether one Cannot teil. (Assume that there is no air, .e., neglect the buoyancy effect of the air)...
A single mass (m1 = 4.4 kg) hangs from a spring in a motionless elevator.
A single mass (m1 = 4.4 kg) hangs from a spring in a motionless elevator. The spring constant is k = 270 N/m. 1) What is the distance the spring is stretched from its unstretched length? 2) Now, three masses (m1 = 4.4 kg, m2 = 13.2 kg and m3 = 8.8) hang from three identical springs in a motionless elevator. The springs all have the same spring constant given above. What is the magnitude of the force the bottom spring exerts on the...
E. Suppose you are standing on the scale in the elevator and the
elevator is accelerating downward with
an acceleration smaller than 9.8 m/s2
i. Draw free-body diagrams of yourself, the scale, and the floor
of the elevator where it interacts
with the scale.
ii. How must the magnitude of the force exerted by the scale on
you compare with your own
weight?
iii. How must the reading on the scale compare with the reading
you make when the elevator...
012 10.0 points A person weighing 0.7 kN rides in an elevator that has a downward acceleration of 2.5 m/s2. The acceleration of gravity is 9.8 m/s2 What is the magnitude of the force of the 它自 35 PM ort sc delete homen ro 6 + backspace ock 8 4 pause elevator floor on the person? Answer in units of kN 013 (part 1 of 2) 0.0 points A 4.1 kg object is suspended by a string from the ceiling...
this is the whole question which has 17 parts. I only need
question (9-17)
6. A 50.0 kg man standing on a spring scale takes a descending elevator ride (DOWNWARD). Starting from the rest, the elevator descends, attaining a maximum speed of 6.0 m/s in 2.0 seconds. Then the elevator travels with this constant speed of 6.0 m/s for 10.0 seconds. Lastly, it takes the elevator 3.0 second to make a complete stop. Based on the information above, answer the...
bailof mass M is suspended by a thin string (of negligible mass) from the ceiling of an elevator. The vertical motion of the elevator as it travels up and down is descnibed in the statements below. Indicate for each of the situations described the relation between value of the tension in the cable, T, and the weight of the ball, Mg, or whether one Cannot teil. (Assume that there is no air, .e., neglect the buoyancy effect of the air)...
