3. For the cell represented by Pt|Fe3+(0.25 M), Fe2+(0.025 M)||Ce4+(0.035 M), Ce3+(0.050 M)|Pt E o (Fe3+/Fe2+...

3. For the cell represented by Pt|Fe3+(0.25 M), Fe2+(0.025 M)||Ce4+(0.035 M), Ce3+(0.050 M)|Pt E o (Fe3+/Fe2+ = +0.771V, Eo Ce4+/Ce3+ = + 1.44V

a) Draw the complete cell represented by the above line diagram and label all the components.

b) Write the half-cell reactions and complete redox reaction of the cell.

c) Calculate the standard cell potential.

d) Calculate the cell potential at the non-standard conditions provided above.

e) Was the cell reaction spontaneous?

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

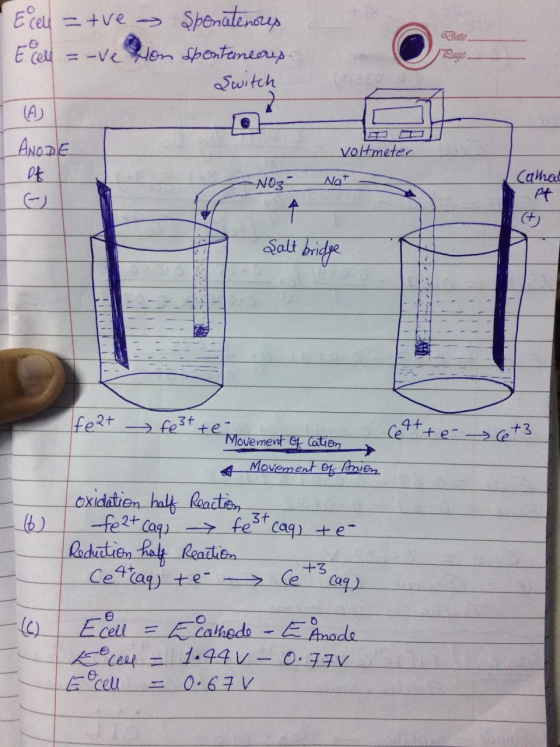

E cell = +ve > Spenatenores E cell = -ve Ron Spontaneous Switch ANODE voltmeter Nat NO3- Cathod Pt Salt bridge feat fe3tte:fe2+ + Cett (0.025m Co.035m) fe3+ + Cest 0.25m) co-osomy Ray Ecell = Ecel -0.0591 log Qc cell = t cell Ecell = Fielu - 0.0591thank you very much.hope this will help you,good luck

0 0
