For the following cell: Zn | Zn2+ (1.0 M) || Fe3+ (1.0 M), Fe2+ (1.0...

Question

Question

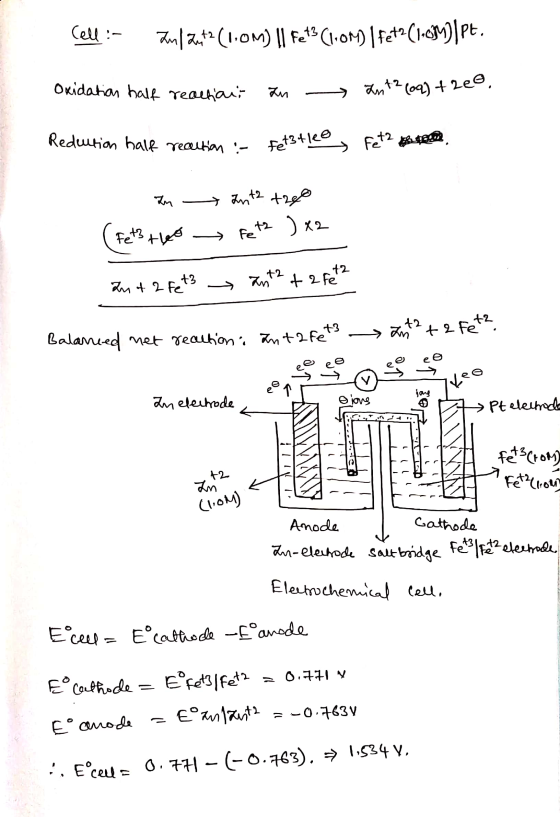

For the following cell:

Zn | Zn2+ (1.0 M) || Fe3+ (1.0 M), Fe2+ (1.0 M) | Pt

Write the half-reactions and the balanced net reaction for the cell.
Identify which species is oxidized. Which is reduced? Which is the reducing reagent? Oxidizing reagent?
Draw the electrochemical cell. Label the anode and cathode. Indicate the direction of electron and ion flow.
Calculate the standard cell potential. Is the reaction spontaneous?

science chemistry

Answer 1

Answer #1

Answer 2
