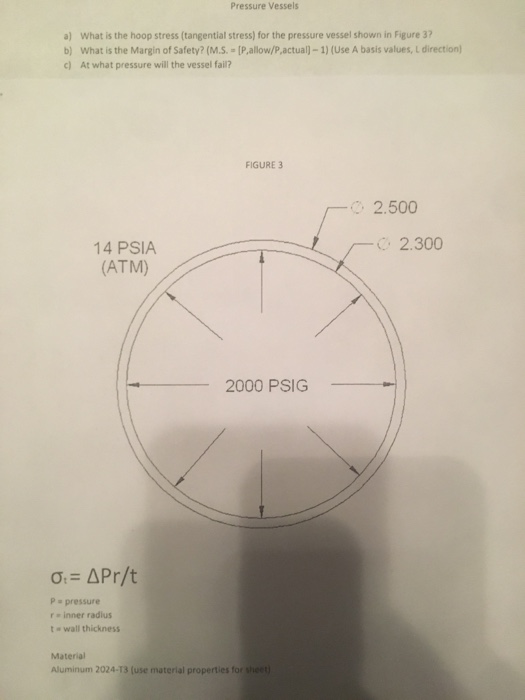

Pressure Vessels a) What is the hoop stress (tangential stress) for the pressure vessel shown in...
Multiple Choice The stress developed in a cylindrical pressure vessel along the longitudinal axis is: a....
Multiple Choice
The stress developed in a cylindrical pressure vessel along the longitudinal axis is: a. Double the stress developed along the hoop axis b. Equal to the stress developed along the hoop axis c. Half the stress developed along the hoop axis d. None of the above QUESTION 12 The stress developed in a cylindrical pressure vessel along the longitudinal axis is: a. Proportional to the thickness of the vessel wall b. Half the stress developed along the hoop...
Determine tangent (hoop) stress in MPa QUESTION 1 Pressure Vessels Po Po ro Po Po Given...
Determine tangent (hoop) stress in MPa
QUESTION 1 Pressure Vessels Po Po ro Po Po Given the data below, determine the tangent (hoop) stress, in MPa, on the outside wall of the pressure vessel Outer Pressure: 101 kPa Inner Pressure: 1000 kPa Outer Diameter: 60 mm Inner Diameter: 55 mm Capped? Yes Click Save and Submit to save and submit. Click Save All Answers to save all answers
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel...
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel is in a state of plain stress, with an internal gas pressure of P - 8 MPa. Determine the strain in the z-direction (z) if the "hoop" stress and "longitudinal" stress of the vessel are defined as: OLA P-r Pr and ơL--2t if the radius of the pressure vessel is r-0.04 m and the wall thickness is t 0.004 mm. Note: the image to...
A harmless or harmful crack? (20) routine inspection, a crack was detected in a cylindrical pressure vessel having a wall thickness 186 mm. characteristic dimension (a) of this crack was measured...
A harmless or harmful crack? (20) routine inspection, a crack was detected in a cylindrical pressure vessel having a wall thickness 186 mm. characteristic dimension (a) of this crack was measured to be 0.025 m and it was acted on by a hoop stress -120MPa. For this crack configuration, the stress intensity factor may be calculated using π.a auwhere O-2.93 racture toughness of the vessel material is KIc -59MPavm e need to worry about this crack? late the factor of...
Consider the cylindrical pressure vessel below which is holding shielding gas for a welding operation. Assume...
Consider the cylindrical pressure vessel below which is holding shielding gas for a welding operation. Assume the vessel has an outer diameter of 12.0 in and a wall thickness of 0.050 in. this classifies the vessel as thin. Determine the hoop/tangential normal stress in the vessel when it is holding an internal pressure of 300 psi Clear show work pls Mechanical of materials
Will RATE!!! Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel...
Will RATE!!!
Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel is subjected to an internal gage pressure of 300 psi and a simultaneous external axial tensile load of 50,000 lb. 4.A V-belt with a groove angle 40 has a max belt tension 150 lb on the tight side and 75 lb on the loose side. If the coefficient of...
Calculate the hoop stress in an aluminum can containing a carbonated beverage at 4 atmospheres of...
Calculate the hoop stress in an aluminum can containing a carbonated beverage at 4 atmospheres of gauge pressure (4 atm of differential pressure between inside and outside of can) if the can is 6.2 inches tall, 3.1 inches wide, and its wall thickness is 0.0076 inches.
Plz answer 3.3 and 3.4 Question 3 10 Marks During laboratory testing of a thin-wall pressure vessel, the cylinder diameter and thickness were at 10 different locations: the resulting data were as...
Plz answer 3.3 and 3.4
Question 3 10 Marks During laboratory testing of a thin-wall pressure vessel, the cylinder diameter and thickness were at 10 different locations: the resulting data were as follows If the pressure inside the vessel is measured to be P - 1 mPa (mega Pascal) with an estimated uncertainty of up-+ 6 kPa (kilo Pascal, for 95% confidence interval, the tangential or hoop stress in the vessel is given by ơe-- 3.1 Compute the uncertainty in...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint. The helical weld makes an angle ? 350 with the axial direction. The vessel has inner radius r = 1.8 m and wall thickness 20 mm. The material is steel with E 200 GPa and Poisson ratio 0.3. The internal pressure p = 800...
2. (20pts) Treat the NASA Apollo lunar module as a thin walled circular pressure vessel of...
2. (20pts) Treat the NASA Apollo lunar module as a thin walled circular pressure vessel of diameter d-92in and thickness t-0.012in. Treat as 6061-T6 aluminum alloy. The real lunar module had layers of other materials as well. What is the maximum internal pressure in psia? Ans 9.65psia The actual internal pressure is approximately 5psia. What is the actual hoop stress on the hull? Ans. 19.2ksi How does the thickness of the lunar module hull compare to the thickness of a...
Multiple Choice
The stress developed in a cylindrical pressure vessel along the longitudinal axis is: a. Double the stress developed along the hoop axis b. Equal to the stress developed along the hoop axis c. Half the stress developed along the hoop axis d. None of the above QUESTION 12 The stress developed in a cylindrical pressure vessel along the longitudinal axis is: a. Proportional to the thickness of the vessel wall b. Half the stress developed along the hoop...
Determine tangent (hoop) stress in MPa
QUESTION 1 Pressure Vessels Po Po ro Po Po Given the data below, determine the tangent (hoop) stress, in MPa, on the outside wall of the pressure vessel Outer Pressure: 101 kPa Inner Pressure: 1000 kPa Outer Diameter: 60 mm Inner Diameter: 55 mm Capped? Yes Click Save and Submit to save and submit. Click Save All Answers to save all answers
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel is in a state of plain stress, with an internal gas pressure of P - 8 MPa. Determine the strain in the z-direction (z) if the "hoop" stress and "longitudinal" stress of the vessel are defined as: OLA P-r Pr and ơL--2t if the radius of the pressure vessel is r-0.04 m and the wall thickness is t 0.004 mm. Note: the image to...
A harmless or harmful crack? (20) routine inspection, a crack was detected in a cylindrical pressure vessel having a wall thickness 186 mm. characteristic dimension (a) of this crack was measured to be 0.025 m and it was acted on by a hoop stress -120MPa. For this crack configuration, the stress intensity factor may be calculated using π.a auwhere O-2.93 racture toughness of the vessel material is KIc -59MPavm e need to worry about this crack? late the factor of...
Will RATE!!!
Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel is subjected to an internal gage pressure of 300 psi and a simultaneous external axial tensile load of 50,000 lb. 4.A V-belt with a groove angle 40 has a max belt tension 150 lb on the tight side and 75 lb on the loose side. If the coefficient of...
Plz answer 3.3 and 3.4
Question 3 10 Marks During laboratory testing of a thin-wall pressure vessel, the cylinder diameter and thickness were at 10 different locations: the resulting data were as follows If the pressure inside the vessel is measured to be P - 1 mPa (mega Pascal) with an estimated uncertainty of up-+ 6 kPa (kilo Pascal, for 95% confidence interval, the tangential or hoop stress in the vessel is given by ơe-- 3.1 Compute the uncertainty in...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint. The helical weld makes an angle ? 350 with the axial direction. The vessel has inner radius r = 1.8 m and wall thickness 20 mm. The material is steel with E 200 GPa and Poisson ratio 0.3. The internal pressure p = 800...
2. (20pts) Treat the NASA Apollo lunar module as a thin walled circular pressure vessel of diameter d-92in and thickness t-0.012in. Treat as 6061-T6 aluminum alloy. The real lunar module had layers of other materials as well. What is the maximum internal pressure in psia? Ans 9.65psia The actual internal pressure is approximately 5psia. What is the actual hoop stress on the hull? Ans. 19.2ksi How does the thickness of the lunar module hull compare to the thickness of a...
