Consider the cylindrical pressure vessel below which is holding shielding gas for a welding operation. Assume...

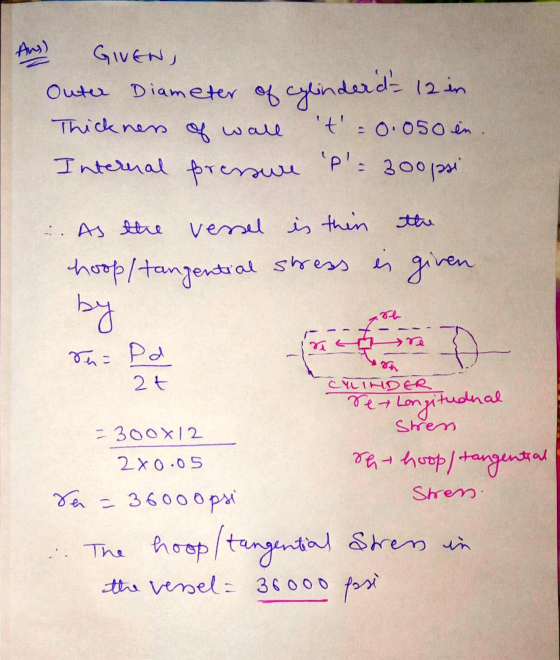

Consider the cylindrical pressure vessel below which is holding shielding gas for a welding operation. Assume the vessel has an outer diameter of 12.0 in and a wall thickness of 0.050 in. this classifies the vessel as thin. Determine the hoop/tangential normal stress in the vessel when it is holding an internal pressure of 300 psi
Clear show work pls
Mechanical of materials
Homework Answers
Add Answer to:
Consider the cylindrical pressure vessel below which is holding
shielding gas for a welding operation. Assume...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical body. The cylindrical part has inner diameter Di = 1.8 m and the wall thickness, t, is uniform and equal to 6 mm. The internal pressure is p = 1.5 MPa. d) What is the value of a force F, applied in the direction of the axis of the cylinder which would make the direct stress in longitudinal direction, in the cylinder wall, one...
A cylindrical pressure vessel is constructed by welding steel plates together. The pressure vessel supports an...
A cylindrical pressure vessel is constructed by welding steel
plates together. The pressure vessel supports an internal pressure
of 240 (psi). In addition the pressure vessel supports an axial
load of 270000 (lbs.). The inner radius of the pressure vessel is
48 (inches) with a wall thickness of 0.3125 (inches). The plates
are welded at 72 degrees from the horizontal. Determine:
a) the stresses perpendicular and parallel to the weld. Show the
stresses on a properly oriented differential element.
The...
12 Section 4. Problem 12 (25 pts.) A cylindrical pressure vessel is constructed by welding steel...
12 Section 4. Problem 12 (25 pts.) A cylindrical pressure vessel is constructed by welding steel plates together. The pressure vessel supports an internal pressure of 250 (psi). In addition the pressure vessel supports an axial load of 230000 (lbs.). The inner radius of the pressure vessel is 56 (inches) with a wall thickness of 0.4375 (inches). The plates are welded at 57 degrees from the horizontal. Determine: a) the stresses perpendicular and parallel to the weld. Show the stresses...
A pressure vessel of 12” outer diameter and 0.2” wall thickness is fabricated by welding plate...
A pressure vessel of 12” outer diameter and 0.2” wall thickness is fabricated by welding plate in spiral into a cylinder that is 4 feet long. The gage pressure inside the vessel is 800 psi and 15 kip axial compression forces are applied to the rigid end caps. Determine the a) the principle stresses in the walls of the vessel, b) the maximum shear stress in the wall of the vessel (in or out of plane), c) the stress normal...
Will RATE!!! Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel...
Will RATE!!!
Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel is subjected to an internal gage pressure of 300 psi and a simultaneous external axial tensile load of 50,000 lb. 4.A V-belt with a groove angle 40 has a max belt tension 150 lb on the tight side and 75 lb on the loose side. If the coefficient of...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint. The helical weld makes an angle ? 350 with the axial direction. The vessel has inner radius r = 1.8 m and wall thickness 20 mm. The material is steel with E 200 GPa and Poisson ratio 0.3. The internal pressure p = 800...
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel...
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel is in a state of plain stress, with an internal gas pressure of P - 8 MPa. Determine the strain in the z-direction (z) if the "hoop" stress and "longitudinal" stress of the vessel are defined as: OLA P-r Pr and ơL--2t if the radius of the pressure vessel is r-0.04 m and the wall thickness is t 0.004 mm. Note: the image to...
A strain gauge affixed to the outside of a cylindrical pressure vessel at an angle of...
A strain gauge affixed to the outside of a cylindrical
pressure vessel at an angle of θ = 35° reads ε = 400 μm/m. The
outside diameter of the vessel is 500mm and the wall thickness is 5
mm. If the veseel is constructed of A36 steel, determine the
following:
a) The hoop and longitudinal stresses in the tank.
Hints: To solve you will need to consider the equations for
strain transform and generalized Hooke’s Law. The hoop and
longitudinal...
4. Calculate the minimum wall thickness for a cylindrical vessel that is to carry a gas...
4. Calculate the minimum wall thickness for a cylindrical vessel that is to carry a gas at a pressure of 6 MPa. The diameter of the vessel is 1m, and the stress is limited to 80 MPa. Ans = 34.88 MPa
Question 6.102 A spherical pressure vessel of ... TRANSF PROBLEMS 6.100 Determine the normal stress in...
Question 6.102 A spherical pressure vessel of ...
TRANSF PROBLEMS 6.100 Determine the normal stress in a basketball of 12-in. diameter and 0.1-in. wall thickness which has been inflated to a gage pressure of 15 psi. 6.101 A spherical gas container made of steel is 20 ft in diameter and has a uniform wall thickness of 16 in. Knowing that the internal pressure is 75 psi, deter mine the maximum normal stress and the maximum shearing stress in the con...
Q2. Figure Q2 shows a cylindrical pressure vessel made by welding semi-spherical caps to a cylindrical body. The cylindrical part has inner diameter Di = 1.8 m and the wall thickness, t, is uniform and equal to 6 mm. The internal pressure is p = 1.5 MPa. d) What is the value of a force F, applied in the direction of the axis of the cylinder which would make the direct stress in longitudinal direction, in the cylinder wall, one...
A cylindrical pressure vessel is constructed by welding steel
plates together. The pressure vessel supports an internal pressure
of 240 (psi). In addition the pressure vessel supports an axial
load of 270000 (lbs.). The inner radius of the pressure vessel is
48 (inches) with a wall thickness of 0.3125 (inches). The plates
are welded at 72 degrees from the horizontal. Determine:
a) the stresses perpendicular and parallel to the weld. Show the
stresses on a properly oriented differential element.
The...
12 Section 4. Problem 12 (25 pts.) A cylindrical pressure vessel is constructed by welding steel plates together. The pressure vessel supports an internal pressure of 250 (psi). In addition the pressure vessel supports an axial load of 230000 (lbs.). The inner radius of the pressure vessel is 56 (inches) with a wall thickness of 0.4375 (inches). The plates are welded at 57 degrees from the horizontal. Determine: a) the stresses perpendicular and parallel to the weld. Show the stresses...
A pressure vessel of 12” outer diameter and 0.2” wall thickness is fabricated by welding plate in spiral into a cylinder that is 4 feet long. The gage pressure inside the vessel is 800 psi and 15 kip axial compression forces are applied to the rigid end caps. Determine the a) the principle stresses in the walls of the vessel, b) the maximum shear stress in the wall of the vessel (in or out of plane), c) the stress normal...
Will RATE!!!
Calculate the tensile stress hoop and longitudinal developed in the walls of a cylindrical pressure vessel. The inside diameter is 18 inch. The wall thickness is k inch.The vessel is subjected to an internal gage pressure of 300 psi and a simultaneous external axial tensile load of 50,000 lb. 4.A V-belt with a groove angle 40 has a max belt tension 150 lb on the tight side and 75 lb on the loose side. If the coefficient of...
em 35? ? A cylindrical pressure vessel is constructed from a long, narrow steel plate by wrapping the plate around a mandrel and then welding along the edges of the plate to make a helical joint. The helical weld makes an angle ? 350 with the axial direction. The vessel has inner radius r = 1.8 m and wall thickness 20 mm. The material is steel with E 200 GPa and Poisson ratio 0.3. The internal pressure p = 800...
0.10m Assuming the surface of an Aluminum (E-70 Gpa and v = 0.30) cylindrical pressure vessel is in a state of plain stress, with an internal gas pressure of P - 8 MPa. Determine the strain in the z-direction (z) if the "hoop" stress and "longitudinal" stress of the vessel are defined as: OLA P-r Pr and ơL--2t if the radius of the pressure vessel is r-0.04 m and the wall thickness is t 0.004 mm. Note: the image to...
A strain gauge affixed to the outside of a cylindrical
pressure vessel at an angle of θ = 35° reads ε = 400 μm/m. The
outside diameter of the vessel is 500mm and the wall thickness is 5
mm. If the veseel is constructed of A36 steel, determine the
following:
a) The hoop and longitudinal stresses in the tank.
Hints: To solve you will need to consider the equations for
strain transform and generalized Hooke’s Law. The hoop and
longitudinal...
Question 6.102 A spherical pressure vessel of ...
TRANSF PROBLEMS 6.100 Determine the normal stress in a basketball of 12-in. diameter and 0.1-in. wall thickness which has been inflated to a gage pressure of 15 psi. 6.101 A spherical gas container made of steel is 20 ft in diameter and has a uniform wall thickness of 16 in. Knowing that the internal pressure is 75 psi, deter mine the maximum normal stress and the maximum shearing stress in the con...
