Question

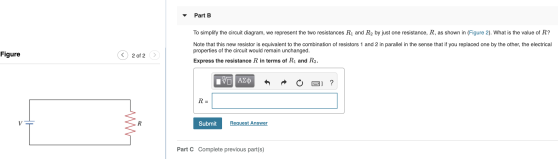

Part B To simplify the circuit diagram, we represent the two resistances R1 and R2 by just one resistance, R, as shown in (Fi

0 0
Add a comment Improve this question Transcribed image text
Answer #1

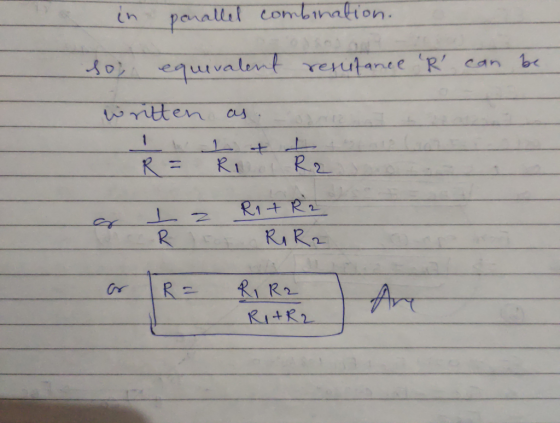

in parallel combination. so equivalent resufance R can be written as die I w I of t he R = Rio R2 -= R1 + R2 tot RR2 R = Ri

Add a comment
Know the answer?
Add Answer to:
Part B To simplify the circuit diagram, we represent the two resistances R1 and R2 by...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...

    R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...

  • Determine the voltage across resistor R2=40ΩR2=40Ω in the circuit shown in (Figure 1), where vs=60Vvs=60V, R1=20ΩR1=20Ω,...

    Determine the voltage across resistor R2=40ΩR2=40Ω in the circuit shown in (Figure 1), where vs=60Vvs=60V, R1=20ΩR1=20Ω, R3=30ΩR3=30Ω, and R4=40Ω Question 6 Part A Determine the voltage across resistor R2 = 40 2 in the circuit shown in (Figure 1), where us = 60 V, R1 = 20 12 R3 = 30 12, and R4 = 40 12 Express your answer in volts to three significant figures. View Available Hint(s) Learning Goal: To determine the voltage, current, and power of circuit...

  • 3. The four resistances in the circuit below are R1 = 22, R2 = 30, R3...

    3. The four resistances in the circuit below are R1 = 22, R2 = 30, R3 = 51 and R4 = 42. The power source has a potential difference of 9V. (a) Find the equivalent resistance of the combination. (b) What is the value of the current I in the circuit? (c) Find the currents in R3 and R. (d) Calculate the power delivered to each resistor in the circuit. R = 24 av R = 6 w Re=3

  • A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 16 Ω, R2 = 35 Ω, R3 = 29 Ω, R4 = 73 Ω, R5 = 89 Ω, and R6 = 31 Ω.

    A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 16 Ω, R2 = 35 Ω, R3 = 29 Ω, R4 = 73 Ω, R5 = 89 Ω, and R6 = 31 Ω. The total current going through the circuit is I = 11.5 A. Part (a) Express the equivalent resistance of the combination of R4, R5, and R6. Part (b) Express the equivalent resistance of the combination of R3, R4, Rs and R6. Part (c) Express...

  • Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then...

    Two identical resistors, R1 and R2, are connected in parallel, and this parallel combination is then connected in series with a 100 Ω resistor, R3 as shown below If the total resistance of the circuit is 300 Ω what must be the resistance of R1 and R2? If the circuit is connected to a 30V battery, what would the current through R1? What voltage is a dropped across R3? 100 S

  • Constants The batteries shown in the circuit in the figure have zero internal resistances and emf...

    Constants The batteries shown in the circuit in the figure have zero internal resistances and emf values Ej = 12.0 V and E2 = 15.8 V, respectively. The resistors have resistances R1 =7.40 and R2 = 10.8 0. R www & R & Part A Find the current through resistor Ri. ΑΣΦ D. SH ? I = A Submit Request Answer Part B Find the current through resistor R2. IVO ALO ? 11 A Submit Request Answer Part C Find...

  • For the circuit of Figure 1, choose values for resistors R1, R2, and R3

     C.la For the circuit of Figure 1, choose values for resistors R1, R2, and R3(all resistances must be greater than one Kilo ohm). Given that the voltage source Vs1 = 8V and Vs2 = 10V determine the output voltage Vout. C.1b For the same resistor values Ri, R2, and Rs you chose in part C.la Given that the voltage source Vsi = 8V and Vs2 = 10V, use Figure 2(a) to determine the output voltage Vout/ and Figure 2(b) to determine the output voltage Vout2. Discussion:...

  • 1 Review Constants Periodic Table Part A Determine the equivalent resistance of resistors R1, R2, and...

    1 Review Constants Periodic Table Part A Determine the equivalent resistance of resistors R1, R2, and R3 in (Figure 1) for R1 = 422, R2 = 30.012, and R3 = 1522. IVO AED ? Ohms Submit Previous Answers Request Answer X Incorrect; Try Again Figure 1 of 1 Part B R2 Determine the current through R if € = 120 V. VASO ? WW R3 A - + Submit Previous Answers Request Answer R X Incorrect; Try Again Part C...

  • 1.) A circuit consists of a power supply and two resistors R1 and R2 connected in...

    1.) A circuit consists of a power supply and two resistors R1 and R2 connected in parallel.An Ammeter is placed to measure the current out of the power supply.The power supply provides 10.6 Volts, the Ammeter shows 19.9 mA, and the resistance of first resistor is R1 = 3.0 kOhm. Deduce the current through the 2nd resistor. The answer may be given in A or in mA. 2.) A circuit consists of a power supply and two resistors R1 and...

  • e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ,...

    e circuit below includes 3 resistors in parallel, R1 = 1 kQ, R2 = 2 kQ, and R,-4kD ta) Dmine the equivalent resistance (Req), (b) use Ohm's Law to determine the circuit current, a use Ohm's law to determine the current through each resistor R1 R2 R3
