Homework Answers
Add Answer to:

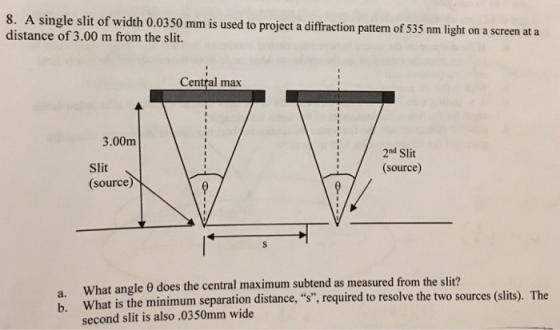

A single slit of width 0.0350 mm is used to project a diffraction pattern of 535...
A single slit 1.2 mm wide is illuminated by 450-nm light produces a diffraction pattern. (a)...
A single slit 1.2 mm wide is illuminated by 450-nm light produces a diffraction pattern. (a) What is the angular width of the central maximum (in degrees)? (b) What is the width of the central maximum (in cm) on a screen 6.0 m away?
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 381 nm and the sc...
A single slit diffraction pattern shown above. The light used to
make the pattern has a wavelength of 381 nm and the screen is 2 m
from the slit. If the slit has a width 9 mm, what is the width w of
the central maximum in cm?
Please show work! :)
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 381 nm and the screen is 2 m from the...
A single-slit diffraction pattern (c24p28) A single-slit diffraction pattern is formed when light of = 587.0...
A single-slit diffraction pattern (c24p28) A single-slit diffraction pattern is formed when light of = 587.0 nm is passed through a narrow slit. The pattern is viewed on a screen placed one meter from the slit. What is the width of the slit (mm) if the width of the central maximum is 2.43 cm? Submit Answer Incorrect. Tries 2/5 Previous Tries Post Discussion Send Feedback
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 691 nm and the screen is 1.6 m from the slit. If the slit has a width 1 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 611 nm and the screen is 1.8 m from the slit. If the slit has a width 8 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 681 nm and the screen is 3 m from the slit. If the slit has a width 5 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 461 nm and the screen is 1.2 m from the slit. If the slit has a width 9 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 451 nm and the screen is 2.4 m from the slit. If the slit has a width 5 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a...
A single slit diffraction pattern shown above. The light used to
make the pattern has a wavelength of 511 nm and the screen is 2.2 m
from the slit. If the slit has a width 4 mm, what is the width w of
the central maximum in cm?
1. A single slit forms a diffraction pattern, with the second minimum at an angle of...
1. A single slit forms a diffraction pattern, with the second minimum at an angle of 40.0° from central maximum, when monochromatic light of wavelength 630 nm is used. What is the width of the single slit? 2. Consider a two-slit experiment in which the slit separation is 3.0 × 10-5 m and the interference pattern is observed on a screen that is 2.00 m away from the slits. The wavelength of light passing through the slits is 420 nm....
A single slit 1.2 mm wide is illuminated by 450-nm light produces a diffraction pattern. (a) What is the angular width of the central maximum (in degrees)? (b) What is the width of the central maximum (in cm) on a screen 6.0 m away?
A single slit diffraction pattern shown above. The light used to
make the pattern has a wavelength of 381 nm and the screen is 2 m
from the slit. If the slit has a width 9 mm, what is the width w of
the central maximum in cm?
Please show work! :)
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 381 nm and the screen is 2 m from the...
A single-slit diffraction pattern (c24p28) A single-slit diffraction pattern is formed when light of = 587.0 nm is passed through a narrow slit. The pattern is viewed on a screen placed one meter from the slit. What is the width of the slit (mm) if the width of the central maximum is 2.43 cm? Submit Answer Incorrect. Tries 2/5 Previous Tries Post Discussion Send Feedback
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 691 nm and the screen is 1.6 m from the slit. If the slit has a width 1 mm, what is the width w of the central maximum in cm?
A single slit diffraction pattern shown above. The light used to make the pattern has a wavelength of 451 nm and the screen is 2.4 m from the slit. If the slit has a width 5 mm, what is the width w of the central maximum in cm?
