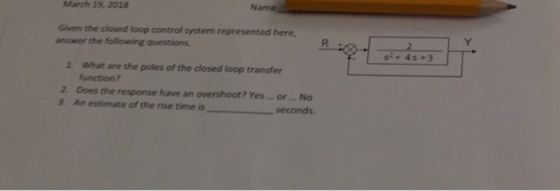

March 19, 2018 Name Given the closed loop control system represented here answer the following questions...
Questions 14-17: For the control system shown below Design the compensator so that the unit-step response...
Questions 14-17: For the control system shown below Design the compensator so that the unit-step response has a settling-time ofless then twe seconds, rise-time of less th 025seconds, and overshoot ofless than 29%1, adion maximum value ofthe actuator signal ) must be kept under five14) Indicate the allowable region of the complex plane for the closed-loop poles 15) Deterine K and a, the answers are nos unique). 16.) Use Matlab to plot the step-response of the control system using your...
Determine: 1. The transfer function C(s)/R(s). Also find the closed-loop poles of the system. 2. The...
Determine: 1. The transfer function C(s)/R(s). Also find the
closed-loop poles of the system. 2. The values of the undamped
natural frequency ωN and damping ratio ξ of the closed-loop poles.
3. The expressions of the rise time, the peak time, the maximum
overshoot, and the 2% settling time due to a unit-step reference
signal.
For the open-loop process with negative feedback R(S) Gp(S) C(s) H(s) 103 Go(s) = 1 , Gp(s)- s(s + 4) Determine: 1. The transfer function...
Problem 5 (15 points) A unity negative feedback closed-loop system has the closed- loop transfer function...
Problem 5 (15 points) A unity negative feedback closed-loop system has the closed- loop transfer function given below. (s + 4) G (5) " (s +50) (s + 2)(s + 5) Compute the percent overshoot and rise time of the step response. Process D(3) GE) HX) Figure 1.
Problems on analysis of Control system both in Frequency and Time Domain 5. Given the following...
Problems on analysis of Control system both in Frequency and Time Domain 5. Given the following system cal R11) T- (ал a) Find the closed-loop transfer function b) Find the values of K and a such that the response to a step input has 25% percent overshoot and settling time of 5.85 seconds
Please show all work Problem 4 A feedback system has the closed-loop transfer function given below....
Please show all work
Problem 4 A feedback system has the closed-loop transfer function given below. Calculate the percent overshoot, rise time and settling time with a 2% criterion, for the closed-loop response. 2500 Get (s) - s + 15) (s2 +10s+49)
Closed-loop system response and characteristics, Proportional gain 10 < paste transfer function T...
Closed-loop system response and characteristics, Proportional gain 10 < paste transfer function Ts as output from Matlab here> clear all: close all: ls J = 0.022R = 0.11;K = 0.02;R 1.5;L= 0.6; Closed loop Transfer function T(s) Cs-10; RRA pole (Tg) 22T zero (Tg) figure ; figure ; teS) characteristics natural frequency damping ratio Dr-abs(real (RpT (2)) ) / ettling time peak time ER忌 overshoot 032=100 rise time Step response of open-loop system: Pole-zero map: easte,pole-zero plot here> Pole-Zero Map...
Spring 2019 3. Given a closed-loop control system with unity feedback is shown in the block...
Spring 2019 3. Given a closed-loop control system with unity feedback is shown in the block diagram. G(s) is the open-loop transfer function, and the controller is a gain, K. 1. (20) Calculate the open-loop transfer function tar →Q--t G(s) (10) Calculate the steady-state error to a step input of the open-loop system. 7. (in Bode Form) from the Bode plot. (10) Calculate the shortest possible settling time with a percentage overshoot of 5% or less. 8. 2. (10)Plot the...
System dynamics and control need a pro to solve this Let a system have plant transfer...
System dynamics and control need a pro to solve this
Let a system have plant transfer function 10(s +20) Design a PD controller such that the closed-loop rise time is about 0.2 seconds and the overshoot is just under 25%.
For the given closed loop system, where: C(s)= 9.43 s+ 9.56 G(s)= 87.84 / ( s2+ 2.94 s+ 9.00 ) Part A: Obtain...
For the given closed loop system, where:
C(s)= 9.43 s+ 9.56
G(s)= 87.84 / ( s2+ 2.94
s+ 9.00 )
Part A: Obtain the rise time of the step response of the plant
transfer function G(s).
Part B: Obtain the overshoot of the step response of the plant
transfer function G(s).
Part C: Obtain the 1% settling time of the step response of the
plant transfer function G(s).
Part D: Obtain the natural frequency ωn of the
characteristic polynomial of...
Q3. Consider a single loop unity feedback control system of the open loop transfer function (a) Find the range of values of the gain K and the parameter p so that: (i) The overshoot is less than 10%....
Q3. Consider a single loop unity feedback control system of the open loop transfer function (a) Find the range of values of the gain K and the parameter p so that: (i) The overshoot is less than 10%. (ii)The settling time is less than 4 seconds Note: , 4.6 M. = exp CO 40% (b)What are the three elements in a PID controller? Considering each in turn, explain the main ways in which varying the parameters affects the closed-loop system...
Questions 14-17: For the control system shown below Design the compensator so that the unit-step response has a settling-time ofless then twe seconds, rise-time of less th 025seconds, and overshoot ofless than 29%1, adion maximum value ofthe actuator signal ) must be kept under five14) Indicate the allowable region of the complex plane for the closed-loop poles 15) Deterine K and a, the answers are nos unique). 16.) Use Matlab to plot the step-response of the control system using your...
Determine: 1. The transfer function C(s)/R(s). Also find the
closed-loop poles of the system. 2. The values of the undamped
natural frequency ωN and damping ratio ξ of the closed-loop poles.
3. The expressions of the rise time, the peak time, the maximum
overshoot, and the 2% settling time due to a unit-step reference
signal.
For the open-loop process with negative feedback R(S) Gp(S) C(s) H(s) 103 Go(s) = 1 , Gp(s)- s(s + 4) Determine: 1. The transfer function...
Problem 5 (15 points) A unity negative feedback closed-loop system has the closed- loop transfer function given below. (s + 4) G (5) " (s +50) (s + 2)(s + 5) Compute the percent overshoot and rise time of the step response. Process D(3) GE) HX) Figure 1.
Problems on analysis of Control system both in Frequency and Time Domain 5. Given the following system cal R11) T- (ал a) Find the closed-loop transfer function b) Find the values of K and a such that the response to a step input has 25% percent overshoot and settling time of 5.85 seconds
Please show all work
Problem 4 A feedback system has the closed-loop transfer function given below. Calculate the percent overshoot, rise time and settling time with a 2% criterion, for the closed-loop response. 2500 Get (s) - s + 15) (s2 +10s+49)
Closed-loop system response and characteristics, Proportional gain 10 < paste transfer function Ts as output from Matlab here> clear all: close all: ls J = 0.022R = 0.11;K = 0.02;R 1.5;L= 0.6; Closed loop Transfer function T(s) Cs-10; RRA pole (Tg) 22T zero (Tg) figure ; figure ; teS) characteristics natural frequency damping ratio Dr-abs(real (RpT (2)) ) / ettling time peak time ER忌 overshoot 032=100 rise time Step response of open-loop system: Pole-zero map: easte,pole-zero plot here> Pole-Zero Map...
Spring 2019 3. Given a closed-loop control system with unity feedback is shown in the block diagram. G(s) is the open-loop transfer function, and the controller is a gain, K. 1. (20) Calculate the open-loop transfer function tar →Q--t G(s) (10) Calculate the steady-state error to a step input of the open-loop system. 7. (in Bode Form) from the Bode plot. (10) Calculate the shortest possible settling time with a percentage overshoot of 5% or less. 8. 2. (10)Plot the...
System dynamics and control need a pro to solve this
Let a system have plant transfer function 10(s +20) Design a PD controller such that the closed-loop rise time is about 0.2 seconds and the overshoot is just under 25%.
For the given closed loop system, where:
C(s)= 9.43 s+ 9.56
G(s)= 87.84 / ( s2+ 2.94
s+ 9.00 )
Part A: Obtain the rise time of the step response of the plant
transfer function G(s).
Part B: Obtain the overshoot of the step response of the plant
transfer function G(s).
Part C: Obtain the 1% settling time of the step response of the
plant transfer function G(s).
Part D: Obtain the natural frequency ωn of the
characteristic polynomial of...
Q3. Consider a single loop unity feedback control system of the open loop transfer function (a) Find the range of values of the gain K and the parameter p so that: (i) The overshoot is less than 10%. (ii)The settling time is less than 4 seconds Note: , 4.6 M. = exp CO 40% (b)What are the three elements in a PID controller? Considering each in turn, explain the main ways in which varying the parameters affects the closed-loop system...
