A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of...

A 6.0 V battery is connected to two 7.70 kilo-Ohm resistors in series. An ammeter of internal resistance 0.570 Ohm measures the current and at the same time a voltmeter with internal resistance 15.2 kilo-Ohm measures the voltage across one of the 7.70 kilo-Ohm resistors in the circuit.

What does the ammeter read? What does the voltmeter read?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

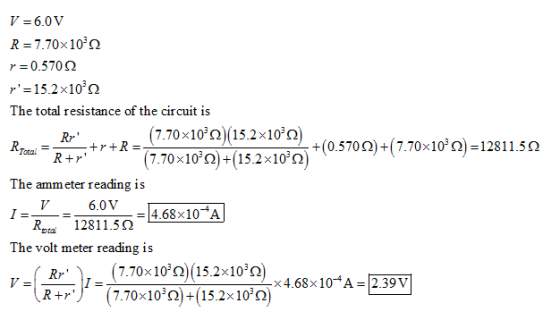

V-6.0 V R -7.70x102 The total resistance of the circuit is Rr (770x103 Ω) 15.2x10%Ω) +(0.5700)-(7.70x10° Ω)-1281 1.5 Ω ) Azam

0 0
