A 68 V. battery is connected across a 61300 ohm and a 37700 ohm resistor connected...
A 68 V. battery is connected across a 61300 ohm and a 37700 ohm resistor connected in series. What is the per cent error in the voltmeter reading when placed across the first resistor, if the voltmeter resistance is 146000 ohms?
Homework Answers

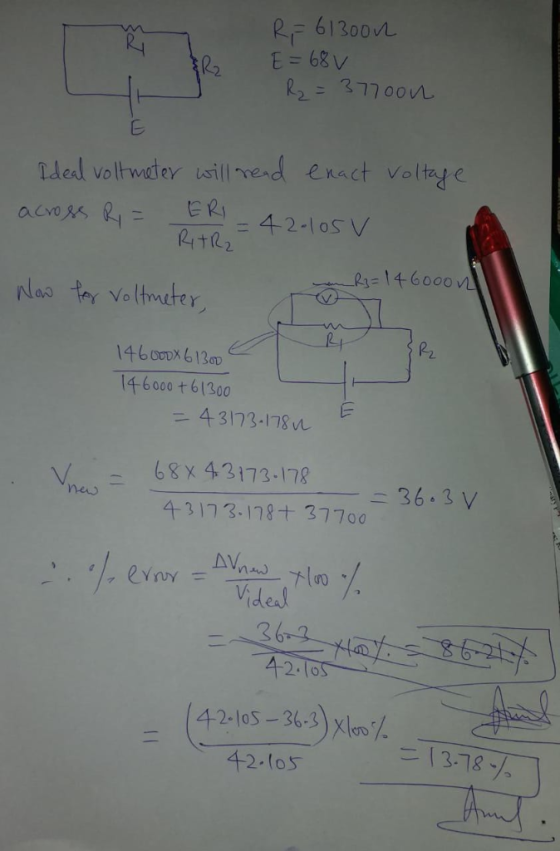

Dear student,
Find this solution.if any issue with that don't forget to write in comment section.I will rectify them as soon as possible.
If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated.
Your rating is important to me.
Thanks for asking..
