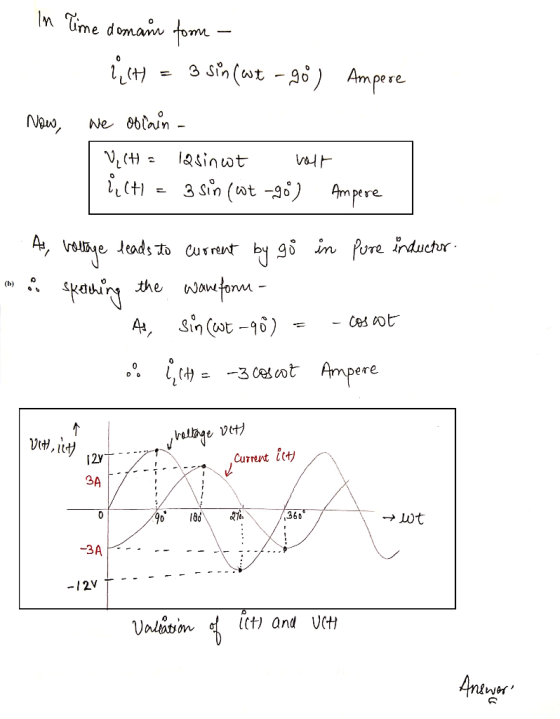

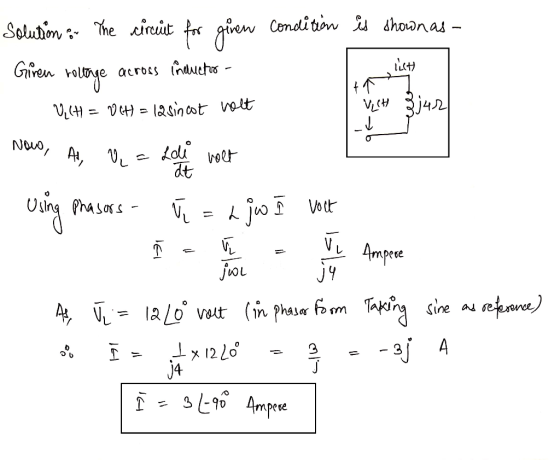

The voltage across an Inductor whose inductive reactance (XL) equals en is given as: v(t) -...
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor.
A 380 Hz sinusoidal voltage with a maximum amplitude of 120 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 20 A. Part A What is the frequency of the inductor current? Part B If the phase angle of the voltage is zero, what is the phase angle of the current? Part C What is the inductive reactance of the inductor? Part D What is the inductance of the inductor? Part E What is the...
AC generator connected across an inductor
The output voltage of an AC generator is given by Δv = (1.18 ✕ 102 V)sin(31?t). The generator is connected across a 0.500 H inductor. Find the following.(a) frequency of the generator Hz(b) rms voltage across the inductor V(c) inductive reactance Ω(d) rms current in the inductor A(e) maximum current in the inductor A(f) average power delivered to the inductor W(g) Find an expression for the instantaneous current. (Use the following as necessary: t.)i=2.42·sin(31πt) (h) At what time after t = 0 does the instantaneous current first reach 1.00 A? (Use the inverse sine function.) Your response differs...
1. The current through a 0.1-H coil is provided. Find the sinusoidal expression for the voltage...
1. The current through a 0.1-H coil is provided. Find the sinusoidal expression for the voltage across the coil. Sketch the v and i curves. a. i = 10 sin 377t b. i = 7 sin(377t - 70°) 2. The voltage across a 1-micro F capacitor is provided below. What is the sinusoidal expression for the current? Sketch the v and i curves. v = 30 sin 400t 3. For the following pairs of voltages and currents, determine whether the...
The output voltage of an AC generator is given by Δv = (1.01 ✕ 102 V)sin(39πt)....
The output voltage of an AC generator is given by Δv = (1.01 ✕ 102 V)sin(39πt). The generator is connected across a 0.500 H inductor. Find the following. (a) frequency of the generator Hz (b) rms voltage across the inductor V (c) inductive reactance Ω (d) rms current in the inductor A (e) maximum current in the inductor A (f) average power delivered to the inductor W (g) Find an expression for the instantaneous current. (Use the following as necessary:...
-6 --- Figure P8.22 Voltage across an inductor for problem P8-22. E 8-23. The voltage across...
-6 --- Figure P8.22 Voltage across an inductor for problem P8-22. E 8-23. The voltage across an inductor is given in Fig. P8.23. Knowing that v(t) = 1 dit) and p(t) = v(t) i(t), sketch the graphs of i(t) and p(t). Assume L = 2 mH, i(0) = 0 A, and p(0) = 0 W. & Problems 271 i( v() - (1), V 1, ms en (1) Figure P8.23 Voltage across an inductor for problem P8-23. of 8-24. The current...
The resistanceless inductor is connected across the ac source whose voltage amplitude is 29.0 V and...
The resistanceless inductor is connected across the ac source whose voltage amplitude is 29.0 V and angular frequency is 1100 rad/s . Find the current amplitude if the self-inductance of the inductor is a. 1.00×10^−2 H b. 1.00 H c. 100 H
A 190 mH inductor is connected to an emf given by v(t) = (167 V) sin(144nt)....
A 190 mH inductor is connected to an emf given by v(t) = (167 V) sin(144nt). (a) What is the reactance of the inductor in 2)? 85.95 (b) Write an expression for the current through the inductor. (Use the following as necessary: t. Assume i(t) is in amps and t is in seconds. Do not include units in your answer.) i(t) = -1.944 cos (144nt
A 200 mH inductor is connected to an emf given by v(t) = (168 V) sin(134nt)....
A 200 mH inductor is connected to an emf given by v(t) = (168 V) sin(134nt). (a) What is the reactance of the inductor (in 2)? 84.2 2 (b) Write an expression for the current through the inductor. (Use the following as necessary: t. Assume i(t) is in amps and t is in seconds. Do not include units in your answer.) i(8) = 2 cos(1847)
II Review Constants Part A A 380 Hz sinusoidal voltage with a maximum amplitude of 100...
II Review Constants Part A A 380 Hz sinusoidal voltage with a maximum amplitude of 100 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 10 A. What is the frequency of the inductor current? Express your answer with the appropriate units. GÅ N O 2 ? f= Value Units Submit Request Answer Part B If the phase angle of the voltage is zero, what...
2) (15 points) Consider a voltage signal v(t)Vocos(wt) (a) Consider applying v(t) across a capacitor C (i) What's the current into the capacitor? (ii) Plot the current and the voltage in the time...
2) (15 points) Consider a voltage signal v(t)Vocos(wt) (a) Consider applying v(t) across a capacitor C (i) What's the current into the capacitor? (ii) Plot the current and the voltage in the time domain and draw their respective phasors in the complex plane. (ii) Does the current lead or lag the voltage? Explain intuitively. (b) Repeat (i), (ii), and (ii) for part (a) but with an inductor, L, instead of a capacitor. (c) Repeat (i), (ii), and (ii) for part...
The output voltage of an AC generator is given by Δv = (1.18 ✕ 102 V)sin(31?t). The generator is connected across a 0.500 H inductor. Find the following.(a) frequency of the generator Hz(b) rms voltage across the inductor V(c) inductive reactance Ω(d) rms current in the inductor A(e) maximum current in the inductor A(f) average power delivered to the inductor W(g) Find an expression for the instantaneous current. (Use the following as necessary: t.)i=2.42·sin(31πt) (h) At what time after t = 0 does the instantaneous current first reach 1.00 A? (Use the inverse sine function.) Your response differs...
-6 --- Figure P8.22 Voltage across an inductor for problem P8-22. E 8-23. The voltage across an inductor is given in Fig. P8.23. Knowing that v(t) = 1 dit) and p(t) = v(t) i(t), sketch the graphs of i(t) and p(t). Assume L = 2 mH, i(0) = 0 A, and p(0) = 0 W. & Problems 271 i( v() - (1), V 1, ms en (1) Figure P8.23 Voltage across an inductor for problem P8-23. of 8-24. The current...
A 190 mH inductor is connected to an emf given by v(t) = (167 V) sin(144nt). (a) What is the reactance of the inductor in 2)? 85.95 (b) Write an expression for the current through the inductor. (Use the following as necessary: t. Assume i(t) is in amps and t is in seconds. Do not include units in your answer.) i(t) = -1.944 cos (144nt
A 200 mH inductor is connected to an emf given by v(t) = (168 V) sin(134nt). (a) What is the reactance of the inductor (in 2)? 84.2 2 (b) Write an expression for the current through the inductor. (Use the following as necessary: t. Assume i(t) is in amps and t is in seconds. Do not include units in your answer.) i(8) = 2 cos(1847)
II Review Constants Part A A 380 Hz sinusoidal voltage with a maximum amplitude of 100 V at t = 0 is applied across the terminals of an inductor. The maximum amplitude of the steady-state current in the inductor is 10 A. What is the frequency of the inductor current? Express your answer with the appropriate units. GÅ N O 2 ? f= Value Units Submit Request Answer Part B If the phase angle of the voltage is zero, what...
2) (15 points) Consider a voltage signal v(t)Vocos(wt) (a) Consider applying v(t) across a capacitor C (i) What's the current into the capacitor? (ii) Plot the current and the voltage in the time domain and draw their respective phasors in the complex plane. (ii) Does the current lead or lag the voltage? Explain intuitively. (b) Repeat (i), (ii), and (ii) for part (a) but with an inductor, L, instead of a capacitor. (c) Repeat (i), (ii), and (ii) for part...
