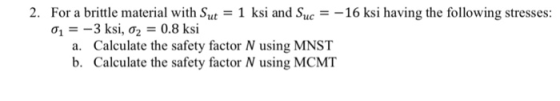

2. For a brittle material with Sut-1 ksi and Suc-16 ksi having the following stresses: ơ1--3...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

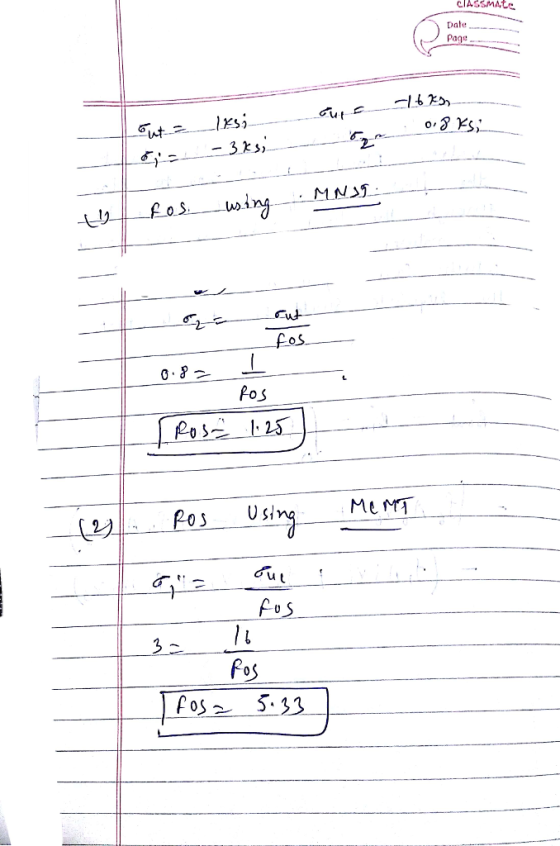

cIASSmACe Date Page Cut o S U Sl Me M 0 5 Lu fos fos 5-33

Answer 2

Similar Homework Help Questions

A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr...

A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. Ox=-22 kpsi, Oy=-22 kpsi and Txy= = -15.5 kpsi The factor of safety from the brittle-Coulomb-Mohr theory is and the factor of safety from the modified-Mohr theory is
Brittle material has the properties Sut = 30 kpsi and Suc = 90 kpsi. Using the...

Brittle material has the properties Sut = 30 kpsi and Suc = 90 kpsi. Using the brittle Coulomb- Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. a) σx = 25 kpsi, σy = 15 kpsi b) σx = 15 kpsi, σy = -15 kpsi
A brittle material has the properties Sat 19 kpsi and Suc 95 kpsi. Using the brittle...

A brittle material has the properties Sat 19 kpsi and Suc 95 kpsi. Using the brittle Coulomb Mohr and modified Mohr theories, determine the factor of safety for the following 0x = 18 kpsi, Gy = 14 kpsi, Txy 0 Hint: Coulomb-Mohr Theory: Oxt Oy 2 + + If A 2 0820 A = Sut If 0 202 03 OA Sut Suc Suc If 0 2 042 OB ов a. n-1.22 b. n - 2.72 Ocn- 3.14 Od.n - 1.52...

A brittle material has the properties Sut = 31 kpsi and Suc = 109 kpsi. Using...

A brittle material has the properties Sut = 31 kpsi and Suc = 109 kpsi. Using the brittle Coulomb-Mohr (BCM) and Modified-Mohr (MM) theories, estimate the factors of safety from the two theories for the following state of plane stress: Ox = - 35 kpsi, Oy = 13 kpsi, Txy = -10 kpsi.
A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum...

A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum Normal Stress theory, determine the factor of safety for the following states of plane stress. (a) Ox = 20kpsi, Oy = 10kpsi, Txy = -15kpsi (b) Ox = 15kpsi, oy = -25kpsi (c) Ox = 10kpsi, oy = -40kpsi (d) Ox = -20kpsi, oy = -20kpsi, Txy = -40 (1) Draw the stress element Plot the failure diagram in the o-plane Estimate the factor...
Question 2 30 Posts The principal normal stresses of a machine member are as follows: 0...

Question 2 30 Posts The principal normal stresses of a machine member are as follows: 0 = 30 Ksi and 2 -15 Ksi. The material is brittle and has an ultimate tensile strength of 42 ksi and ultimate compressive strength of 120 ksi. a. Show the design region and the load line. b. Evaluate the factor safety for the design using the Modified Mohr Theory.

A brittle material has the properties su kpsi and S 125 kps using the bitte Coulomb...

A brittle material has the properties su kpsi and S 125 kps using the bitte Coulomb Mohr and modified Mortheories, determine the factor of safety for the following x = -20 kpsi, Gy = 18 kpsi, Txy = -13 kpsi Hint Coulomb-Mohr Theory: Oox + Oy + 04.08 1 2 3* + z3 2 If on 2020 OA Suit 71 If on 20 203 GA Sut Sue If 0 201208 OR a. n-2.65 Ob.n-1.26 On-1.68 d. n-3.14 en - 1.08
Given: A bracket is made of material with Su-64 ksi and S. - 26.3 ksi. The...

Given: A bracket is made of material with Su-64 ksi and S. - 26.3 ksi. The bracket is! subjected to fluctuating loading which results in the following stress and shear conditions: - 4870 psi - 2922 psi 1998 psi 1198 psi Find: 2) Use Mohr's circle to find the principle mean stresses and principle alternating stresses b) Calculate the von Mises stresses and ! c) Draw a plot of alternating stress vs. mean stress and Illustrate the Goodman line d)...
Sut = 80 ksi, Sy= 60 ksi, Si = 40 ksi, q=0.85 (notch sensitivity), steel E...

Sut = 80 ksi, Sy= 60 ksi, Si = 40 ksi, q=0.85 (notch sensitivity), steel E = 30e6 psi Remember we use Modified-Goodman for all calculations A3 inch hollow tube with 1/16 inch wall thickness is used to make a 4 foot long drive shaft. The maximum torque on the is 400 ft-lbf. The shaft is loaded cyclically from 0 to max torque. a) Calculate the fatigue and yield factor of safety b) Assume that there is a 0.3 in...

Properties for all problems Sut = 80 ksi, 5= 60 ksi, Sf = 40 ksi, q=0.85...

Properties for all problems Sut = 80 ksi, 5= 60 ksi, Sf = 40 ksi, q=0.85 (notch sensitivity), steel E = 30e6 psi Remember we use Modified-Goodman for all calculations Problem 1 A 1-inch diameter rod that is 8 inches long has a bearing at one end and another bearing at 6 inches (treat bearings as simple supports). A vertical load is applied at the end of the overhanging rod and a torque is transmitted through the length of the...
