Brittle material has the properties Sut = 30 kpsi and Suc = 90 kpsi. Using the...

Brittle material has the properties Sut = 30 kpsi and Suc = 90 kpsi. Using the brittle Coulomb- Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. a) σx = 25 kpsi, σy = 15 kpsi b) σx = 15 kpsi, σy = -15 kpsi

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

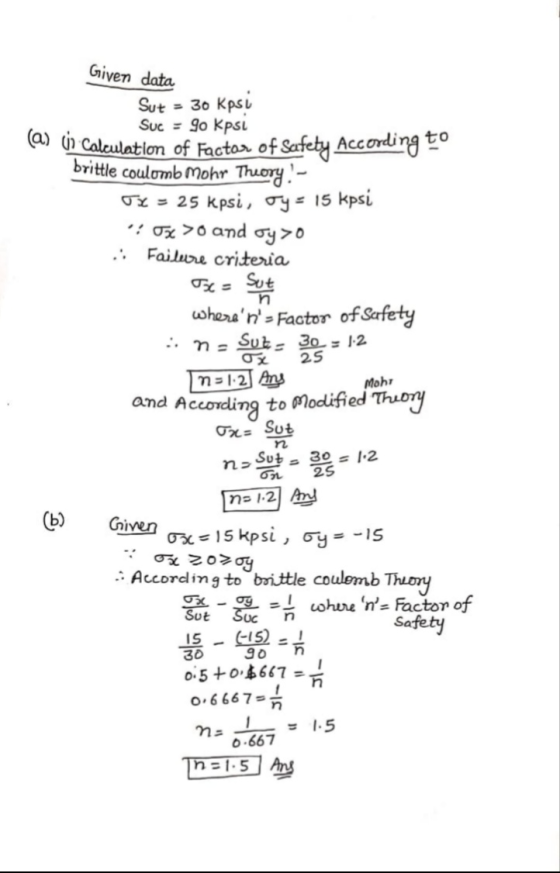

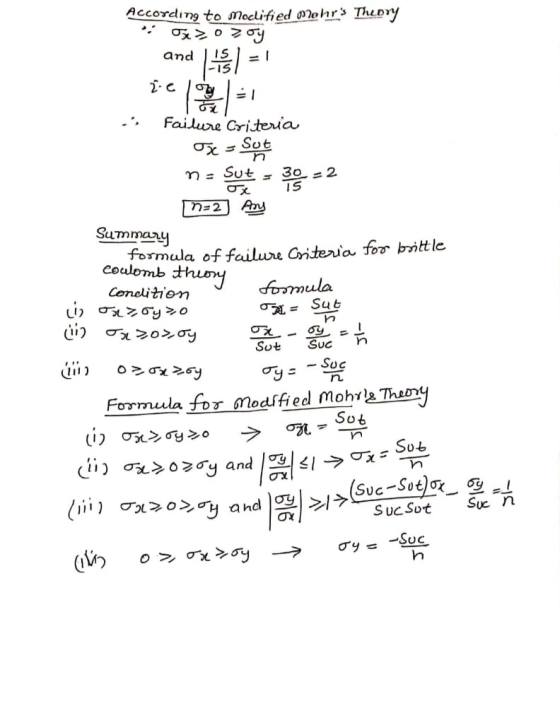

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Brittle material has the properties Sut = 30 kpsi and Suc = 90 kpsi. Using the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr...

    A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. Ox=-22 kpsi, Oy=-22 kpsi and Txy= = -15.5 kpsi The factor of safety from the brittle-Coulomb-Mohr theory is and the factor of safety from the modified-Mohr theory is

  • A brittle material has the properties Sut = 31 kpsi and Suc = 109 kpsi. Using...

    A brittle material has the properties Sut = 31 kpsi and Suc = 109 kpsi. Using the brittle Coulomb-Mohr (BCM) and Modified-Mohr (MM) theories, estimate the factors of safety from the two theories for the following state of plane stress: Ox = - 35 kpsi, Oy = 13 kpsi, Txy = -10 kpsi.

  • A brittle material has the properties Sat 19 kpsi and Suc 95 kpsi. Using the brittle...

    A brittle material has the properties Sat 19 kpsi and Suc 95 kpsi. Using the brittle Coulomb Mohr and modified Mohr theories, determine the factor of safety for the following 0x = 18 kpsi, Gy = 14 kpsi, Txy 0 Hint: Coulomb-Mohr Theory: Oxt Oy 2 + + If A 2 0820 A = Sut If 0 202 03 OA Sut Suc Suc If 0 2 042 OB ов a. n-1.22 b. n - 2.72 Ocn- 3.14 Od.n - 1.52...

  • A brittle material has the properties su kpsi and S 125 kps using the bitte Coulomb...

    A brittle material has the properties su kpsi and S 125 kps using the bitte Coulomb Mohr and modified Mortheories, determine the factor of safety for the following x = -20 kpsi, Gy = 18 kpsi, Txy = -13 kpsi Hint Coulomb-Mohr Theory: Oox + Oy + 04.08 1 2 3* + z3 2 If on 2020 OA Suit 71 If on 20 203 GA Sut Sue If 0 201208 OR a. n-2.65 Ob.n-1.26 On-1.68 d. n-3.14 en - 1.08

  • A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum...

    A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum Normal Stress theory, determine the factor of safety for the following states of plane stress. (a) Ox = 20kpsi, Oy = 10kpsi, Txy = -15kpsi (b) Ox = 15kpsi, oy = -25kpsi (c) Ox = 10kpsi, oy = -40kpsi (d) Ox = -20kpsi, oy = -20kpsi, Txy = -40 (1) Draw the stress element Plot the failure diagram in the o-plane Estimate the factor...

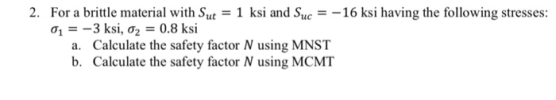

  • 2. For a brittle material with Sut-1 ksi and Suc-16 ksi having the following stresses: ơ1--3...

    2. For a brittle material with Sut-1 ksi and Suc-16 ksi having the following stresses: ơ1--3 ksi, ơ2-0.8 ksi Calculate the safety factor N using MNST Calculate the safety factor N using MCMT a. b.

  • ASTM grade 30 cast iron, Sut = 214 MPa, Suc 752 MPa Fy= 1.2 KN Fx...

    ASTM grade 30 cast iron, Sut = 214 MPa, Suc 752 MPa Fy= 1.2 KN Fx -2.5 KN Fz 3 KN All the dimensions are in millimeters, and due to the fillet radius existing on the shaft the critical point is A Find the factor of safety using Coulomb Mohr failure model. 300 35 380 Fx ASTM grade 30 cast iron, Sut = 214 MPa, Suc 752 MPa Fy= 1.2 KN Fx -2.5 KN Fz 3 KN All the dimensions...

  • A bar of steel has the minimum properties Se = 40 kpsi, Sy = 60 kpsi,...

    A bar of steel has the minimum properties Se = 40 kpsi, Sy = 60 kpsi, and Sut = 80 kpsi. The bar is subjected to a steady torsional stress (τm) of 19 kpsi and an alternating bending stress of (σa) 10.2 kpsi. Find the factor of safety guarding against a static failure, and either the factor of safety guarding against a fatigue failure or the expected life of the part. Based on: A. modified Goodman criterion B. Gerber criterion...

  • A bar of steel has the minimum propertiesSe = 40 kpsi, Sy = 60 kpsi, and Sut = 80 kpsi.

    A bar of steel has the minimum propertiesSe = 40 kpsi, Sy = 60 kpsi, and Sut = 80 kpsi. The bar is subjected to a steady torsional stress (τm) of 19 kpsi and an alternating bending stress of (σa) 9.6 kpsi. Find the factor of safety guarding against a static failure, and either the factor of safety guarding against a fatigue failure or the expected life of the part.A. Find the factor of safety. For the fatigue analysis, use...

  • A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of Syt...

    A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of Syt = 60 kpsi and Syc = 75 kpsi. Using the ductile Coulomb-Mohr theory, determine the factor of safety for the states of plane stress. 0x = -21.8 kpsi, oy" -21.8 kpsi, and Txy=-16 kpsi The factor of safety is 2.455
