Homework Answers
N01 G90 G21 G94 .................................................. absolute program there for G90
N02 M06 T06 .............................................................. tool number given as 6
N03 M08 M03 S500 .................................................. spindle speed given as 500rpm
N04 G71 U7.0 R1.0
N05 G71 P07 Q11 U3.0 W0 F10.0
N06 G42 G00 X35.0 Z5.0
N07 G01 Z-20.0 F20 ............................................................ feed given as 20mm/min
N08 G02 X67.0 Z-36.0 R16.0
N09 GO1 X68.0
N10 G03 X100.0 Z-52 R16.0
N11 G01 X-82
N12 G70 P07 Q11
N13 G40 X150 Z150 M09 M05
N14 M30
NOTE
G71 turning cycle is used for rough-material removal from a CNC lathe component. G71 turning cycle makes large diameter cutting easy. Cutting can be done in simple straight line or a complex contour can also be machined very easily.
In this program G71 turning cycle will keep repeating the contour given inside P=7&Q=11 that is the G71 turning cycle will work between N07 to N11
........................
Add Answer to:

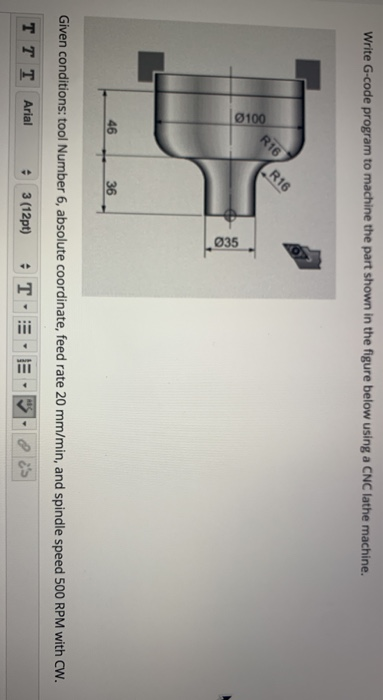

Write G-code program to machine the part shown in the figure below using a CNC lathe...
