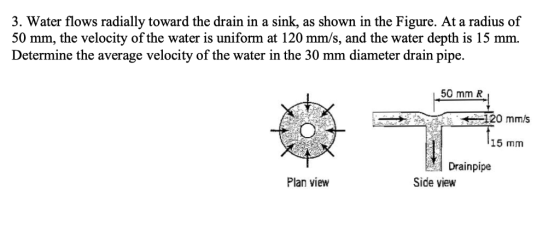

3. Water flows radially toward the drain in a sink, as shown in the Figure. At...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be express...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
Q1: Consider the tank and water supply system as shown in Figure. The diameter of the...
Q1: Consider the tank and water supply system as shown in Figure. The diameter of the supply pipe is D. = 40mm, and the average velocity leaving the supply pipe is V1 = 3 m/s. A shut- off valve is located at z = 0.7 m in the exit pipe, which has a diameter of D, = 30mm. The tank diameter is De = 0.7m. The density of the water is uniform at 998 kg/m. a. Find the time to...
2. Water flows over a flat surface at 8 m/s, as shown in figure. A pump...
2. Water flows over a flat surface at 8 m/s, as shown in figure. A pump draws off water through a narrow slit at a volume rate of 0.2 m2/s per meter length of the slit. Assume that the fluid is incompressible and inviscid and can be represented by the combination of a uniform flow and a sink. a) Based on method of superposition, propose a general expression for stream function ψ velocity potential ф, and velocity components of v,...
Water flows steadily from a large tank as shown in the figure. The height of water...
Water flows steadily from a large tank as shown in the figure. The height of water in the tank is H = 4 m represents the height from the centerline of the horizontal pipe to the surface of the water in the tank. The water flows out of the tank through a pipe with diameter of 4 cm. The stream of water flows through a bend (= 30 degrees, L = 2.88 m) and exits as a free jet through...
Water flows through the pipe as shown in the below figure. Determine the net tension in...
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
Basics of Fluid Mechanics 2. Example 1-5 For the Y-branch shown, water enters the pipe section...
Basics of Fluid Mechanics 2. Example 1-5 For the Y-branch shown, water enters the pipe section at 15 velocities in both branches 2 and 3 are the same and the diameter of the pipe at is 50 mm, diameter at 2 is 20 mm and diameter at 3 is 30 mm, litres If the 1 (i) Calculate the velocity of the water at 1 (ii) Calculate the velocity of the water at 2 or 3. (iii) Calculate the flow rates...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2....
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
solve all please Gate AB in the figure below is a quarter circle 3 m wide into the paper and hinged at B. A jet of water with velocity V, is directed radially toward the gate exactly in its middle...
solve all please
Gate AB in the figure below is a quarter circle 3 m wide into the paper and hinged at B. A jet of water with velocity V, is directed radially toward the gate exactly in its middle. The jet diameter is 5 cm and it flows smoothly on the surface of the gate without friction. The gate has a mass of 300 kg. The centroide ofa quarter circle area is located at a dste m from the...
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1....
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1.0 m through a sudden expansion K, Note: For sudden expansion: Assess the pressure rise across this expansion. i. (9 marks) Explain how there can be a pressure rise across the expansion when i there is an energy loss (K, # 0) (2 marks) D2-1.0m Di-0.50 m Q= 15 m/s (1) (2) Figure 6:...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to a...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe.
QUUESTION1 Water flows through a pipe as shown in...
Q1: Consider the tank and water supply system as shown in Figure. The diameter of the supply pipe is D. = 40mm, and the average velocity leaving the supply pipe is V1 = 3 m/s. A shut- off valve is located at z = 0.7 m in the exit pipe, which has a diameter of D, = 30mm. The tank diameter is De = 0.7m. The density of the water is uniform at 998 kg/m. a. Find the time to...
2. Water flows over a flat surface at 8 m/s, as shown in figure. A pump draws off water through a narrow slit at a volume rate of 0.2 m2/s per meter length of the slit. Assume that the fluid is incompressible and inviscid and can be represented by the combination of a uniform flow and a sink. a) Based on method of superposition, propose a general expression for stream function ψ velocity potential ф, and velocity components of v,...
Water flows steadily from a large tank as shown in the figure. The height of water in the tank is H = 4 m represents the height from the centerline of the horizontal pipe to the surface of the water in the tank. The water flows out of the tank through a pipe with diameter of 4 cm. The stream of water flows through a bend (= 30 degrees, L = 2.88 m) and exits as a free jet through...
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
Basics of Fluid Mechanics 2. Example 1-5 For the Y-branch shown, water enters the pipe section at 15 velocities in both branches 2 and 3 are the same and the diameter of the pipe at is 50 mm, diameter at 2 is 20 mm and diameter at 3 is 30 mm, litres If the 1 (i) Calculate the velocity of the water at 1 (ii) Calculate the velocity of the water at 2 or 3. (iii) Calculate the flow rates...
(b) Water flows under gravity through a pipeline connecting two reservoirs as shown in Figure 2. The pipeline consists of 2 km of pipe diameter 400 mm and sand roughness equivalent 0.03 mm followed by an abrupt change to 3 km of 500 mm diameter pipe of sand roughness equivalent 0.08 mm. The pipe discharges as a free jet into a reservoir. The difference in elevation between the water surface of the upstream reservoir and the discharging jet is 21...
solve all please
Gate AB in the figure below is a quarter circle 3 m wide into the paper and hinged at B. A jet of water with velocity V, is directed radially toward the gate exactly in its middle. The jet diameter is 5 cm and it flows smoothly on the surface of the gate without friction. The gate has a mass of 300 kg. The centroide ofa quarter circle area is located at a dste m from the...
Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1.0 m through a sudden expansion K, Note: For sudden expansion: Assess the pressure rise across this expansion. i. (9 marks) Explain how there can be a pressure rise across the expansion when i there is an energy loss (K, # 0) (2 marks) D2-1.0m Di-0.50 m Q= 15 m/s (1) (2) Figure 6:...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
