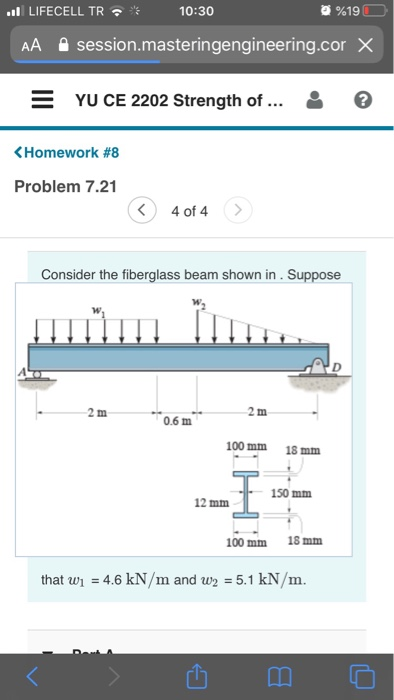

..LIFECELL TR.* 10:30 %190 AA session.masteringengineering.cor X = YU CE 2202 Strength of ... : <...

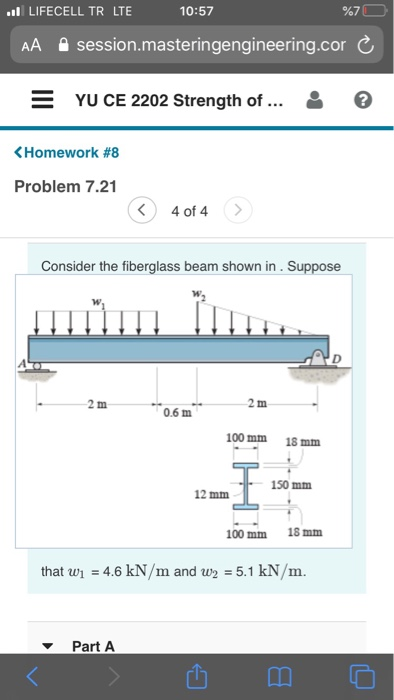

The width d = 13.5 mm . Figure < 1of1() 3 kN/m 2.5 kN/m 0.6 m...

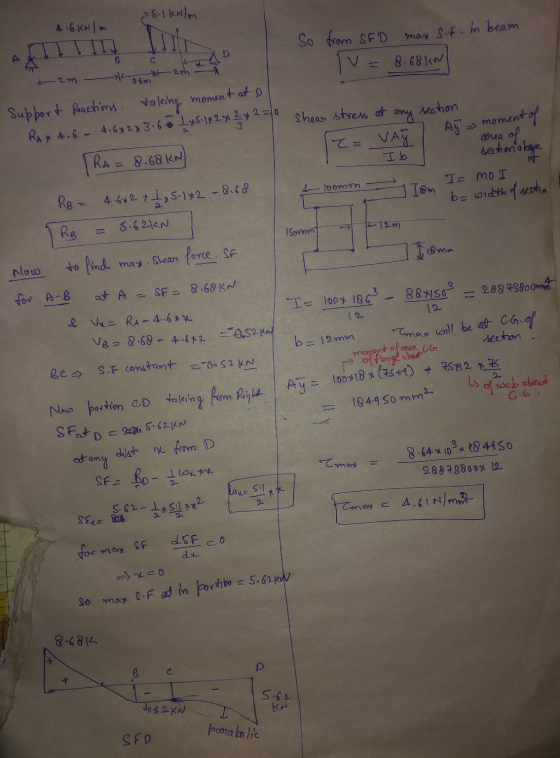

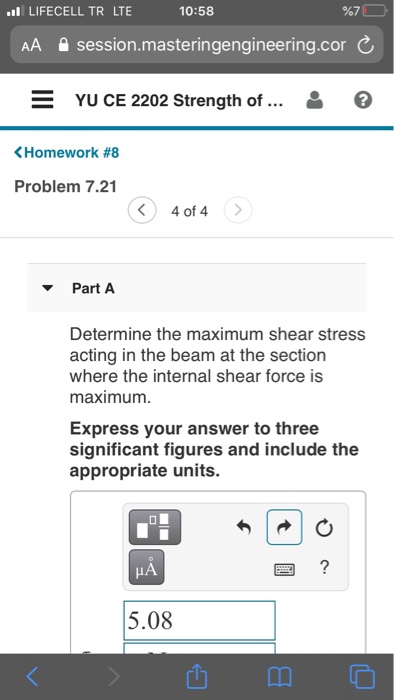

The width d = 13.5 mm . Figure < 1of1() 3 kN/m 2.5 kN/m 0.6 m 100 mm18 mnm 150 mm 100 mm 18 mm Part A Determine the maximum shear stress acting in the fiberglass beam at the section where the internal shear force is maximum. (Figure 1) Express your answer to three significant figures. vec Tmax = MPa Submit Request Answer Provide Feedback Next
