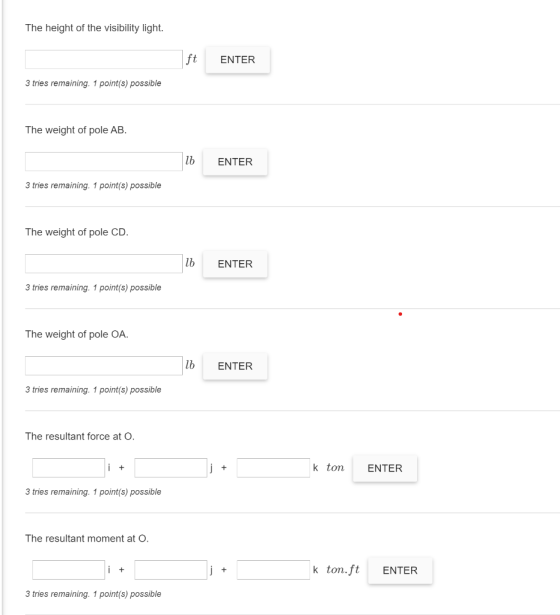

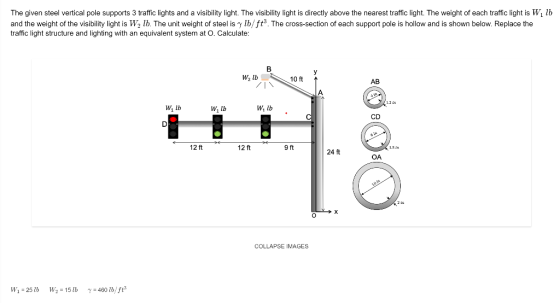

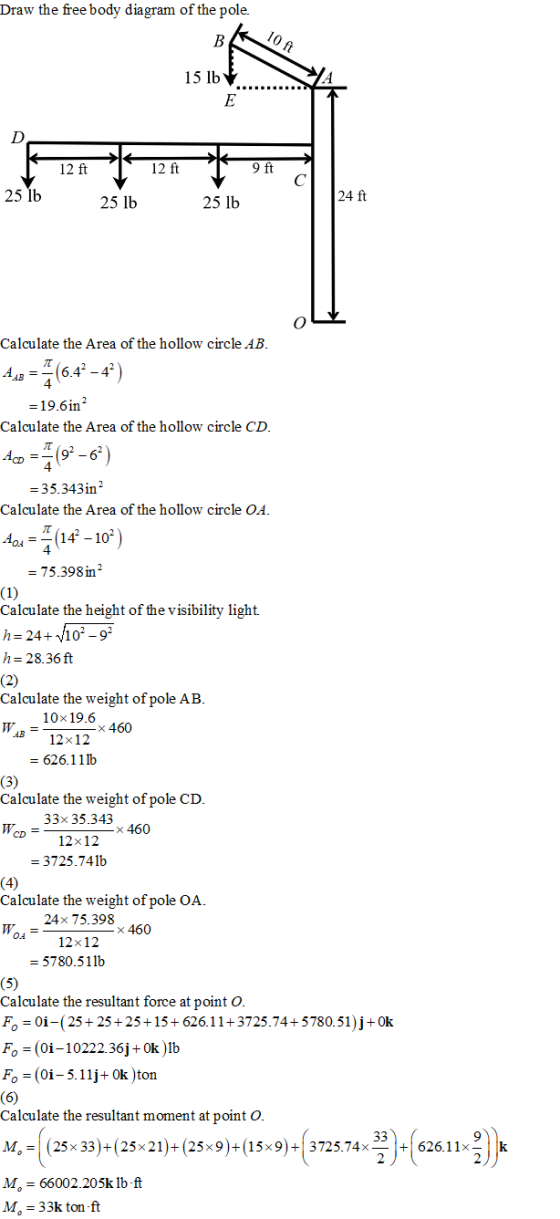

The given steel vertical pole supports 3 traffic lights and a visibility light. The visibility light...
For the beam shown, draw the reactions at supports A and B in the positive direction,...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. w lb/ft aft L ft aft COLLAPSE IMAGES w = 480 lb/ft L = 13 ft 9 = 2 ft Calculate the support reaction Ay lb ENTER 3 tries remaining. 1 point(s) possible Calculate the support reaction Ax lb ENTER 3 tries remaining. 1 point(3) possible Calculate the support...
For the beam shown, draw the reactions at supports A and B in the positive direction,...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. w lb/ft aft L ft aft COLLAPSE IMAGES w = 480 lb/ft L = 13 ft 9 = 2 ft Calculate the support reaction Ay lb ENTER 3 tries remaining. 1 point(s) possible Calculate the support reaction Ax lb ENTER 3 tries remaining. 1 point(3) possible Calculate the support...
A weight is hanging from a ring C. Two cables are attached at C, cable CB...
A weight is hanging from a ring C. Two cables are attached at C, cable CB and CD, both attached to hooks. Calculate: A L2 350 155° COLLAPSE IMAGES Q = 105 lb W = 49 lb L1 = 4 ft L2 = 10 ft The tension in cable CD. ENTER 3 tries remaining. 1 point(s) possible The tension in cable CB. ENTER 3 tries remaining. 1 point(s) possible The resultant moment at A. (Clockwise moment is positive) ENTER 3...
For the beam shown, draw the reactions at supports A and B in the positive direction,...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. Calculate w lb/ft PID Mb.ft с Lft B a ft bft COLLAPSE IMAGES w = 140 lb/ft P= 200 lb L = 7 ft a = 4 ft b = 4 ft M = 80 lb.ft The vertical reaction at A. (Ay) ID ENTER 3 tries remaining. 1 point(3)...
For the beam shown, draw the reactions at supports A and B in the positive direction,...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. W lb A Lft Lft COLLAPSE IMAGES W = 248 lb L = 7 Calculate the vertical reaction (Ay) at support A ID ENTER 3 tries remaining. 1 point(3) possible Calculate the horizontal reaction (Ax) at support A ID ENTER 3 tries remaining, 1 point(s) possible Calculate the vertical...
Q3 Weight: 20.00% Consider the beam below: w lb/ft Wlb h ft M lb-ft w ---HI...
Q3 Weight: 20.00% Consider the beam below: w lb/ft Wlb h ft M lb-ft w ---HI bft Cross section EE COLLAPSE IMAGES W = 62 lb/ft W= 139 lb /y = 7 ft 12 =2 ft b = 0.5ft h = 0.1 ft M = 127 lb.ft int.com/#!/assessment/2015/247/Homework%2013 The vertical reaction at A. lb ENTER 3 tries remaining. 1 points) possible The horizontal reaction at A 1/1 pts 0 lb System Answer 0 The vertical reaction at B. lb ENTER...
In the figure shown below, there is a rectangular load distribution acting on the beam. Calculate:...
In the figure shown below, there is a rectangular load distribution acting on the beam. Calculate: Note: Draw all reactions in the positive x and y directions. w lb/ft L/2 ft L ft COLLAPSE IMAGES O hours : 51 minutes : 37 seconds * = 80 lb/ft L-aft The magnitude of the resultant force from the rectangular distributed load. 16 ENTER 8 t rening point possible The location of the resultant force of the rectangular distributed load measured from A....
For the beam show, calculate: w lb/ft p lb/ft L ft aft bft COLLAPSE IMAGES w...
For the beam show, calculate: w lb/ft p lb/ft L ft aft bft COLLAPSE IMAGES w = 80 lb/ft p = 40 lb/ft L = 8 ft a = 8 ft b= 6 ft The vertical reaction at A. Іь ENTER 3 tries remaining. 1 point(3) possible The vertical reaction at B. lb ENTER 3 tries remaining. 1 point(3) possible The range for section 1. ) ft ENTER 3 tries remaining. 1 point(3) possible The shear force equation for section...
The hook and spring assembly shown in the figure are equilibrium, calculate: F. lb k lb/ft...
The hook and spring assembly shown in the figure are equilibrium, calculate: F. lb k lb/ft А (1) Falb В 02 2 ft F3 lb COLLAPSE IMAGES F1 = 110 lb F3 = 52 lb 01 - 21 deg 02 - 35 deg k = 1506 lb/ F2 = 98 lb The magnitude of the resultant force. Ib ENTER 3 tries remaining. 1 points) possible The orientation counter-clockwise from the positive x axis of the spring. deg ENTER 3 tries...
: Given the system of forces below, calculate Given the system of forces below, calculate: F3...
:
Given the system of forces below, calculate
Given the system of forces below, calculate: F3 COLLAPSE IMAGES Write the F force in vector form k lb ENTER 3 tries remaining. 1 poinf(s) possible The resultant force vector of the system. k lb ENTER 3 tries remaining. 1 paint s) possible The magnitude of the resultant force. b ENTER 3 tries remaining. 1 paint's) possible The directional cosine alpha. ENTER 3 tries remaining. 1 paints) possible The directional cosine beta....
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. w lb/ft aft L ft aft COLLAPSE IMAGES w = 480 lb/ft L = 13 ft 9 = 2 ft Calculate the support reaction Ay lb ENTER 3 tries remaining. 1 point(s) possible Calculate the support reaction Ax lb ENTER 3 tries remaining. 1 point(3) possible Calculate the support...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. w lb/ft aft L ft aft COLLAPSE IMAGES w = 480 lb/ft L = 13 ft 9 = 2 ft Calculate the support reaction Ay lb ENTER 3 tries remaining. 1 point(s) possible Calculate the support reaction Ax lb ENTER 3 tries remaining. 1 point(3) possible Calculate the support...
A weight is hanging from a ring C. Two cables are attached at C, cable CB and CD, both attached to hooks. Calculate: A L2 350 155° COLLAPSE IMAGES Q = 105 lb W = 49 lb L1 = 4 ft L2 = 10 ft The tension in cable CD. ENTER 3 tries remaining. 1 point(s) possible The tension in cable CB. ENTER 3 tries remaining. 1 point(s) possible The resultant moment at A. (Clockwise moment is positive) ENTER 3...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. Calculate w lb/ft PID Mb.ft с Lft B a ft bft COLLAPSE IMAGES w = 140 lb/ft P= 200 lb L = 7 ft a = 4 ft b = 4 ft M = 80 lb.ft The vertical reaction at A. (Ay) ID ENTER 3 tries remaining. 1 point(3)...
For the beam shown, draw the reactions at supports A and B in the positive direction, and also draw the shear and bending moment in the positive direction on your FBD. W lb A Lft Lft COLLAPSE IMAGES W = 248 lb L = 7 Calculate the vertical reaction (Ay) at support A ID ENTER 3 tries remaining. 1 point(3) possible Calculate the horizontal reaction (Ax) at support A ID ENTER 3 tries remaining, 1 point(s) possible Calculate the vertical...
Q3 Weight: 20.00% Consider the beam below: w lb/ft Wlb h ft M lb-ft w ---HI bft Cross section EE COLLAPSE IMAGES W = 62 lb/ft W= 139 lb /y = 7 ft 12 =2 ft b = 0.5ft h = 0.1 ft M = 127 lb.ft int.com/#!/assessment/2015/247/Homework%2013 The vertical reaction at A. lb ENTER 3 tries remaining. 1 points) possible The horizontal reaction at A 1/1 pts 0 lb System Answer 0 The vertical reaction at B. lb ENTER...
In the figure shown below, there is a rectangular load distribution acting on the beam. Calculate: Note: Draw all reactions in the positive x and y directions. w lb/ft L/2 ft L ft COLLAPSE IMAGES O hours : 51 minutes : 37 seconds * = 80 lb/ft L-aft The magnitude of the resultant force from the rectangular distributed load. 16 ENTER 8 t rening point possible The location of the resultant force of the rectangular distributed load measured from A....
For the beam show, calculate: w lb/ft p lb/ft L ft aft bft COLLAPSE IMAGES w = 80 lb/ft p = 40 lb/ft L = 8 ft a = 8 ft b= 6 ft The vertical reaction at A. Іь ENTER 3 tries remaining. 1 point(3) possible The vertical reaction at B. lb ENTER 3 tries remaining. 1 point(3) possible The range for section 1. ) ft ENTER 3 tries remaining. 1 point(3) possible The shear force equation for section...
The hook and spring assembly shown in the figure are equilibrium, calculate: F. lb k lb/ft А (1) Falb В 02 2 ft F3 lb COLLAPSE IMAGES F1 = 110 lb F3 = 52 lb 01 - 21 deg 02 - 35 deg k = 1506 lb/ F2 = 98 lb The magnitude of the resultant force. Ib ENTER 3 tries remaining. 1 points) possible The orientation counter-clockwise from the positive x axis of the spring. deg ENTER 3 tries...
:
Given the system of forces below, calculate
Given the system of forces below, calculate: F3 COLLAPSE IMAGES Write the F force in vector form k lb ENTER 3 tries remaining. 1 poinf(s) possible The resultant force vector of the system. k lb ENTER 3 tries remaining. 1 paint s) possible The magnitude of the resultant force. b ENTER 3 tries remaining. 1 paint's) possible The directional cosine alpha. ENTER 3 tries remaining. 1 paints) possible The directional cosine beta....
