At a construction site, two piezometers have been installed. Piezometer A has a screen 8 m...

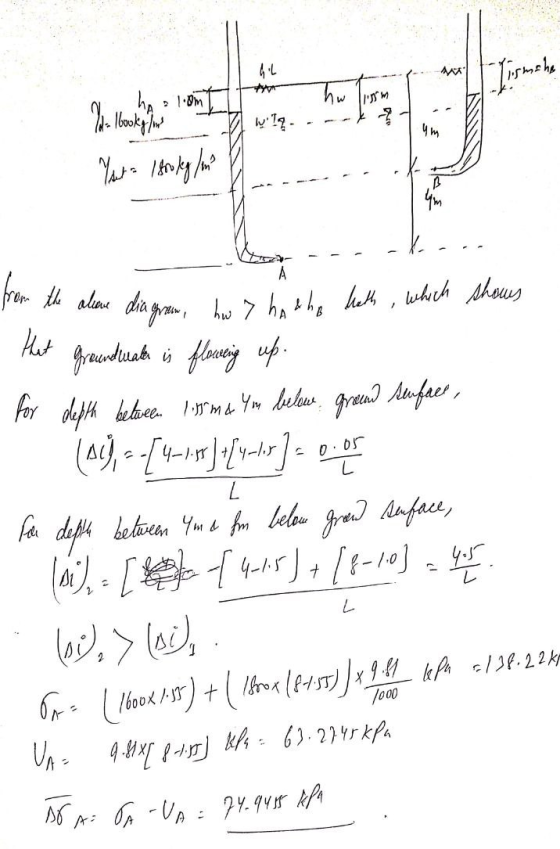

At a construction site, two piezometers have been installed. Piezometer A has a screen 8 m below ground surface and piezometer B has a screen 4 m below ground surface. The water level in piezometer A is 1 m below ground surface and the water level in piezometer B is 1.5 m below ground surface. Test pits at this site indicate that the water table is 1.55 m below ground surface. (5 marks)
a) Is groundwater flowing up or down?
b) If there is no horizontal groundwater flow and flow is at steady state and equal everywhere in the saturated zone, is hydraulic conductivity higher between 1.55 and 4 m deep or between 4 and 8 m deep?
c) What is the effective stress at 8 m? The saturated density of the overlying soil is 1800 kg/m^3 and the dry density of the soil is 1600 kg/m^3
Homework Answers
Add Answer to:
At a construction site, two piezometers have been installed.
Piezometer A has a screen 8 m...
Question 2 The soil profile at a level site consists of a 3-m thick layer of...
Question 2 The soil profile at a level site consists of a 3-m thick layer of sandy clay, overlaying an 8-m thick layer of loose sand, overlaying stiff gravelly clays that extend to depths greater than 20 m. The water table is at a depth of 2 m and the ground water is initially hydrostatic. The total unit weight of the upper sandy clay, above or below the water table, is 18 kN/m3. The total unit weight of the loose...
The following field notes were taken at a nest of piezometers installed side by side at...
The following field notes were taken at a nest of piezometers installed side by side at a single site (this means that the these piezometers are used to find the vertical flow): Piezometer A B C Elevation at surface (mean average sea level) 198 201 199 Depth of piezometers (m) 52 41 23 Depth to water (m) 11 24 16 Let A, B, and C refer to the points of measurement of piezometers A, B, and C. Calculate: 1. The...
3. (20 pt) The following field notes were taken at a nest of piezometers installed side...
3. (20 pt) The following field notes were taken at a nest of piezometers installed side by side at a single site (this are used to find the vertical flow): means that the these piezometers В A Piezometer 200 200 200 Elevation at surface (mean average sea level) 20 40 50 Depth of piezometers (m) 15 25 10 Depth to water (m) Let A, B, and C refer to the points of measurement of piezometers A, B, and C. Calculate...
A site has groundwater contaminated with 1 mg/L hexavalent chromium, Cr(VI). A permeable reactive barrier (PRB)...
A site has groundwater contaminated with 1 mg/L hexavalent chromium, Cr(VI). A permeable reactive barrier (PRB) measuring 8 m × 8 m is placed across the path of the groundwater flow and loaded with 30 kg of iron metal Fe0 , which can reduce Cr(VI) to the much less toxic trivalent chromium, Cr(III), by this reaction: Cr(VI) + Fe0 → Cr(III) + Fe(III) In the direction of flow, the hydraulic head declines by 8 m per 1000 m. The soil...
4. (10 pts) The soil profiles at a site is as follows (from the ground surface down); 5 m of very...
4. (10 pts) The soil profiles at a site is as follows (from the ground surface down); 5 m of very dense, saturated sand (saturated unit weight- 19.5 kN/m) 8 m of normally consolidated clay ( 7.5 kN/m, Ce-0.5) 15 m of clay (7'-80 kNan', σ'p-250 kN/m. (σ'max), Ce-0.4, Cer : 0.04). A layer of fill, 15m deep (y = 19 kN/m) will be added to the top of this profile. The water table is originally at the ground surface-...
3) At a construction site, a site investigation has been carried out. At ground level (-1...
3) At a construction site, a site investigation has been carried out. At ground level (-1 m NAP) a clay layer with a thickness of 4 m is found (y = 16 kN/m”, k = 2.0x10-12 m/s, Cp = 15), followed by a sand layer of 6 m thickness (y = 20 kN/m², k = 5.0x10-7 m/s), another clay layer of 4m thickness (y = 18 kN/m3, k = 4.5x10-11 m/s, Cp = 25), and finally another sand layer (y...
Question 4:(15 Marks) On a construction Site, the soil Bulk density and water Content have been...
Question 4:(15 Marks) On a construction Site, the soil Bulk density and water Content have been measured as P-1800 kg/m' and w-20 %. G,- 2.65. Yw- 9.81 kN/m Determine: 4. S (degree of Saturation) .p( dry density) 3. n (porosity) e (void ratio) 2.
Alt Your supervisor at an environmental consultancy frm has provided you with the following map lain...
Alt Your supervisor at an environmental consultancy frm has provided you with the following map lain of North showing the water table contours unconfined sandy aquifer in the Coastai Carelina ----28m- Stream -20m - ----24m 순2m-- ---23A- 5 km Stream gaging station Groundwater monitoring well Vertical Scale 1 cm:100 cm Equipotenlial line with --20m-- hydraulic head in m above sea-level Additional information about the field site is listed below: The ground surface is horizantal and at an elevation of 25...
Refer to the figure below. The site consists of 8 ft of sand overlying 4 ft...
Refer to the figure below. The site consists of 8 ft of sand overlying 4 ft of clay. The groundwater level is 4 ft below the ground surface. Given that a proposed footing for a building will be 10 ft by 10 ft at a depth of 2 ft below the ground surface and the load on the foundation is 800 kips, calculate the primary consolidation settlement of the clay layer. Use the 2:1 method to determine the stress distribution...
geotechnical engineering The soil profile at a site consists of a clay layer 10 m thick,...
geotechnical engineering
The soil profile at a site consists of a clay layer 10 m thick, sandwich between two sand layers. The top sand layer has a density of 1.9 Mg/m² and is 5 m thick. Below this layer is a 10 m thick clay layer with a saturated density of 1.8 Mg/m' and a saturated water content 42%. The deeper sand layer has a saturated density of 1.9 Mg/m² and extend to the depth investigated at the site. The...
Question 2 The soil profile at a level site consists of a 3-m thick layer of sandy clay, overlaying an 8-m thick layer of loose sand, overlaying stiff gravelly clays that extend to depths greater than 20 m. The water table is at a depth of 2 m and the ground water is initially hydrostatic. The total unit weight of the upper sandy clay, above or below the water table, is 18 kN/m3. The total unit weight of the loose...
3. (20 pt) The following field notes were taken at a nest of piezometers installed side by side at a single site (this are used to find the vertical flow): means that the these piezometers В A Piezometer 200 200 200 Elevation at surface (mean average sea level) 20 40 50 Depth of piezometers (m) 15 25 10 Depth to water (m) Let A, B, and C refer to the points of measurement of piezometers A, B, and C. Calculate...
4. (10 pts) The soil profiles at a site is as follows (from the ground surface down); 5 m of very dense, saturated sand (saturated unit weight- 19.5 kN/m) 8 m of normally consolidated clay ( 7.5 kN/m, Ce-0.5) 15 m of clay (7'-80 kNan', σ'p-250 kN/m. (σ'max), Ce-0.4, Cer : 0.04). A layer of fill, 15m deep (y = 19 kN/m) will be added to the top of this profile. The water table is originally at the ground surface-...
3) At a construction site, a site investigation has been carried out. At ground level (-1 m NAP) a clay layer with a thickness of 4 m is found (y = 16 kN/m”, k = 2.0x10-12 m/s, Cp = 15), followed by a sand layer of 6 m thickness (y = 20 kN/m², k = 5.0x10-7 m/s), another clay layer of 4m thickness (y = 18 kN/m3, k = 4.5x10-11 m/s, Cp = 25), and finally another sand layer (y...
Question 4:(15 Marks) On a construction Site, the soil Bulk density and water Content have been measured as P-1800 kg/m' and w-20 %. G,- 2.65. Yw- 9.81 kN/m Determine: 4. S (degree of Saturation) .p( dry density) 3. n (porosity) e (void ratio) 2.
Alt Your supervisor at an environmental consultancy frm has provided you with the following map lain of North showing the water table contours unconfined sandy aquifer in the Coastai Carelina ----28m- Stream -20m - ----24m 순2m-- ---23A- 5 km Stream gaging station Groundwater monitoring well Vertical Scale 1 cm:100 cm Equipotenlial line with --20m-- hydraulic head in m above sea-level Additional information about the field site is listed below: The ground surface is horizantal and at an elevation of 25...
Refer to the figure below. The site consists of 8 ft of sand overlying 4 ft of clay. The groundwater level is 4 ft below the ground surface. Given that a proposed footing for a building will be 10 ft by 10 ft at a depth of 2 ft below the ground surface and the load on the foundation is 800 kips, calculate the primary consolidation settlement of the clay layer. Use the 2:1 method to determine the stress distribution...
geotechnical engineering
The soil profile at a site consists of a clay layer 10 m thick, sandwich between two sand layers. The top sand layer has a density of 1.9 Mg/m² and is 5 m thick. Below this layer is a 10 m thick clay layer with a saturated density of 1.8 Mg/m' and a saturated water content 42%. The deeper sand layer has a saturated density of 1.9 Mg/m² and extend to the depth investigated at the site. The...
