The following field notes were taken at a nest of piezometers installed side by side at a single site (this means that the these piezometers are used to find the vertical flow):
|
Piezometer |
A |
B |
C |
|
Elevation at surface (mean average sea level) |
198 |
201 |
199 |
|
Depth of piezometers (m) |
52 |
41 |
23 |
|
Depth to water (m) |
11 |
24 |
16 |
Let A, B, and C refer to the points of measurement of piezometers A, B, and C. Calculate:
1. The hydraulic head at A, B, and C (m).
2. The pressure head at A, B, and C (m).
3. The elevation head at A, B, and C (m).
4. The fluid pressure at B (N/m2).
5. The hydraulic gradient between A and B and between B and C.
Multiple parts allowed to solve only 4 sub parts according to HOMEWORKLIB RULES:Ask part 5) seperatly.Answered same question just need to change the values.

The following field notes were taken at a nest of piezometers installed side by side at...
3. (20 pt) The following field notes were taken at a nest of piezometers installed side by side at a single site (this are used to find the vertical flow): means that the these piezometers В A Piezometer 200 200 200 Elevation at surface (mean average sea level) 20 40 50 Depth of piezometers (m) 15 25 10 Depth to water (m) Let A, B, and C refer to the points of measurement of piezometers A, B, and C. Calculate...
Calculate b,c, and d

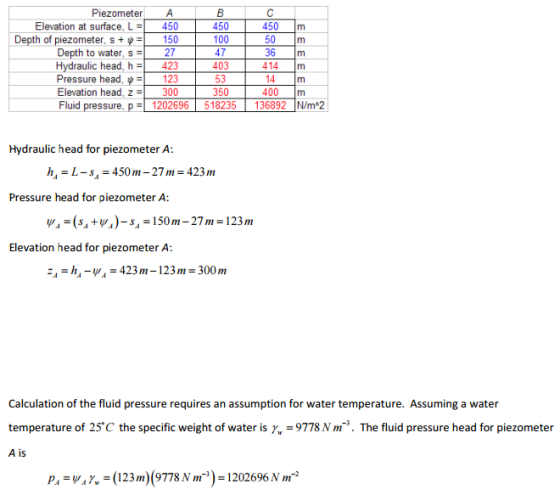

1. The following data were collected at a nest of piezometers (several piezometers of different depths located within 1 m of each other). Well 1 Elevation at surface (m.a.s Depth to piezometer (m Well 2 Well 3 375 27 375 17 Depth to static water level (m) 2 *measured from surface elevation down to water table Answer the following questions: Draw a picture of the well nest with the elevation head, pressure head and water table...
Question 2 The soil profile at a level site consists of a 3-m thick layer of sandy clay, overlaying an 8-m thick layer of loose sand, overlaying stiff gravelly clays that extend to depths greater than 20 m. The water table is at a depth of 2 m and the ground water is initially hydrostatic. The total unit weight of the upper sandy clay, above or below the water table, is 18 kN/m3. The total unit weight of the loose...
At a construction site, two piezometers have been installed. Piezometer A has a screen 8 m below ground surface and piezometer B has a screen 4 m below ground surface. The water level in piezometer A is 1 m below ground surface and the water level in piezometer B is 1.5 m below ground surface. Test pits at this site indicate that the water table is 1.55 m below ground surface. (5 marks) a) Is groundwater flowing up or down?...
yo 2. Given the following information on three piezometers, A, B, and C, in the same horizontal unconfined aquifer (K = 10 m/day), draw groundwater contours, give the direction of flow, calculate the hydraulic gradient, and the Darcy velocity. 6*8 - A, B, and Care 1,000 meters apart from each other. - A is directly north of B. 25 30 Ground Elevation (m) Depth to Water (m)
The figure below shows the soil profile conditions below a 5-m deep pond. Water is seeping directly downward under steady-state conditions through the clay layer into underlying gravel. Assume the elevation datum at the top of the gravel layer and that the hydrostatic ground water table is also found in the top of the gravel and its position does not change with time or amount of flow. For these flow conditions, calculate the following: a. b. c. d. e. f....
Alt Your supervisor at an environmental consultancy frm has provided you with the following map lain of North showing the water table contours unconfined sandy aquifer in the Coastai Carelina ----28m- Stream -20m - ----24m 순2m-- ---23A- 5 km Stream gaging station Groundwater monitoring well Vertical Scale 1 cm:100 cm Equipotenlial line with --20m-- hydraulic head in m above sea-level Additional information about the field site is listed below: The ground surface is horizantal and at an elevation of 25...
2. A cylindrical sample of soil is confined in a rigid-wall permeameter and measures 10 cm in diameter and 20 cm in length. The axis of the cylindrical sample lies in a horizontal plane. They hydraulic head at the left end of the specimen is controlled by a reservoir; the water surface in the reservoir is exactly 100 cm above the horizontal axis of the cylindrical soil sample and remains at 100 cm through a system that automatically adds water...
2. Parallel drainage canals are installed in a rectangular unconfined aquifer. They fully penetrate the aquifer and are 50 m apart. The elevation difference between the land surface and the bottom of the canals is 5 m and the canal stages are 2.5 m. Assume a soil hydraulic conductivity of 0.8 m/day Recharge Land surface 50ml Drainagelcanal 2.5m Impermeable layer (a) Sketch the approximate shape of the water table between the two canals under a highly urbanized condition in which...
