Review Constants In (Figure 1), C1 = 3.50 uF and Vab = 150 V. The charge...

Question

Question

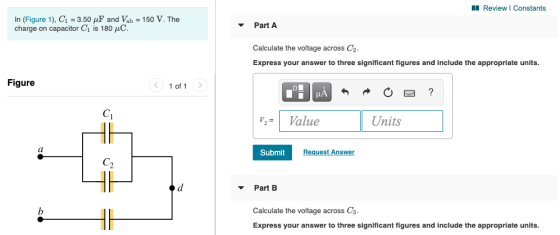

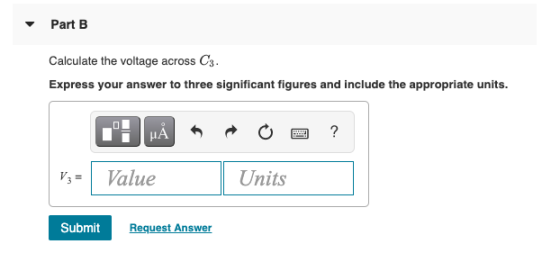

Review Constants In (Figure 1), C1 = 3.50 uF and Vab = 150 V. The charge on capacitor C1 is 180 pC. Part A Calculate the volt Part B Calculate the voltage across C3. Express your answer to three significant figures and include the appropriate units. Н

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

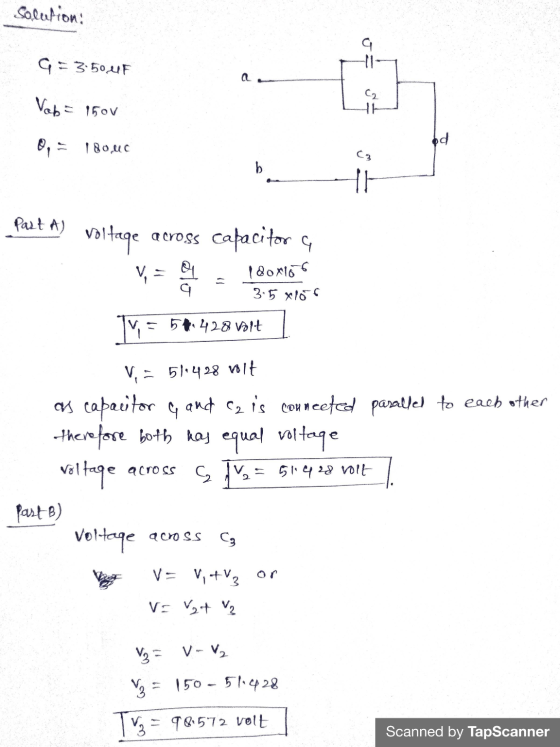

Solution: 9 G = 3:50,41F a Vab= 1500 bd B, = 18000 V = 24 = 54.428 bit Past A) voltage across capacitor a 1801166 3.5x150 Thi

Add a comment

Answer 2

Similar Homework Help Questions

Part A Constants In (Figure 1), each capacitor has C-375 μF and Vab 32.5V Calculate the...

Part A Constants In (Figure 1), each capacitor has C-375 μF and Vab 32.5V Calculate the charge on C1 Express your answer in microcoulombs to three significant figures. Figure 1 of 1 Submit uest Answer Part B Calculate the charge on C2 Cl Express your answer in microcoulombs to three significant figures. Q2 Submit uest Answer Part C Calculate the charge on C3 Express your answer in microcoulombs to three significant figures. Q3 HC Submit Request Answer Part D Calculate...
Part A If V = 34 V is applied across the whole network(Figure 1), calculate the...

Part A If V = 34 V is applied across the whole network(Figure 1), calculate the voltage across each capacitor. Express your answers using three significant figures separated by commas. 10 AED ? VI, V2, V3 = V Figure 1 of 1 Submit Request Answer Part B C2 = C= 3.00 uF 4.00 uF Calculate the charge on each capacitor. Express your answers using three significant figures separated by commas. HE C3 = 2.00 uF Η ΑΣφ ? Q1, Q2...
In (Figure 1), each capacitor has C = 4.10 uF and Vab = 34.0 V. Part...

In (Figure 1), each capacitor has C = 4.10 uF and Vab = 34.0 V. Part E Calculate the charge on capacitor C3. Express your answer in coulombs. IVO AJD A A O O ? Figure < 1 of 1 > Submit Request Answer Part F SI -+ +0 Calculate the potential difference across capacitor C3. Express your answer in volts. PO ALOM O O ?

Review Constants The current shown in (Figure 1) is applied to a 350 nF capacitor. The...

Review Constants The current shown in (Figure 1) is applied to a 350 nF capacitor. The initial voltage on the capacitor is zero. Part A Find the charge on the capacitor at t = 30 jus Express your answer to three significant figures and include the appropriate units. IT μΑ q= 25.103 O Submit Previous Answers Request Answer Part B Find the voltage on the capacitor at t = 50 js. Express your answer to three significant figures and include...
In the circuit in (Figure 1) the voltage and current expressions are v=48e-25 V, t> 0...

In the circuit in (Figure 1) the voltage and current expressions are v=48e-25 V, t> 0 i= 20e mA, tot Part A -250 Find R Express your answer to three significant figures and include the appropriate units. НА ? R= Value Units Submit Request Answer Part B Find C. Express your answer to three significant figures and include the appropriate units. НА Figure < 1 of 1 C= Value Units i Submit Request Answer + Part C V R Find...
Problem 4.7 Consider the circuit shown in (Figure 1). The source voltage v1 is 40 V....

Problem 4.7 Consider the circuit shown in (Figure 1). The source voltage v1 is 40 V. Resistance R1, R2 and R3 are 5 ,120 and 15 , respectively. The source current I is 25 mA Part A Find the power developed by the current source I in the circuit. Express your answer to three significant figures and include the appropriate units. НА Value Units Рi 3 Request Answer Submit Part B Figure 1 of 1 Find the power developed by...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure < 1 of 1 > C C2 a C3 d b C4 (a) Calculate the charge on capacitor C1 Q1= (b) Calculate the potential difference across capacitor C1 V1= (c) Calculate the charge on capacitor C2 Q2= (d) Calculate the potential difference across capacitor C2 V2= (e) Calculate the charge on capacitor C3. Q3= (f) Calculate the potential difference across capacitor C3. V3= (g)...
In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure...

In the figure (Figure 1), each capacitor has 4.70 uF and Vab = 29.0 V Figure < 1 of 1 > C C2 a C3 d b C4 (a) Calculate the charge on capacitor C1 Q1= (b) Calculate the potential difference across capacitor C1 V1= (c) Calculate the charge on capacitor C2 Q2= (d) Calculate the potential difference across capacitor C2 V2= (e) Calculate the charge on capacitor C3. Q3= (f) Calculate the potential difference across capacitor C3. V3= (g)...
Problem 5.4 Review1 Constants The op amp in the circuit in (Figure 1) is ideal. Figure...

Problem 5.4 Review1 Constants The op amp in the circuit in (Figure 1) is ideal. Figure 1 of 1 100) kΩ 16 V 20 kΩ 40 kΩ -16 V Ub Part A Calculate vo if ua = 4 V and vb = 0 V Express your answer to three significant figures and include the appropriate units. Vo = 1-20 Submit X Incorrect; Try Again Part B Calculate uo if Va-2 V and vb = 0 V Express your answer to...

R1 = 49.7 Ohms, C1 = 1.60 uF Using the circuit shown in (Figure 1), design a narrow band bandreject filter having a center frequency of 4 kHz and a quality factor of 10. Base the design on igure 1 of...

R1 = 49.7 Ohms, C1 = 1.60 uF Using the circuit shown in (Figure 1), design a narrow band bandreject filter having a center frequency of 4 kHz and a quality factor of 10. Base the design on igure 1 of 2 (> (1-o)R Figure 2 of 2 l6 RI R3 RC 2 Rs Part C Determine the resistance R2 in the filter Express your answer to three significant figures and include the appropriate units R2Value Units Submit Request Answer...
