Question

Your Assignment is to Create a Project Schedule in MS Project.

1. You are to Create a Project Schedule using the durations, including Predecessors and Names on each activity

2. Amir’s Sheds is a successful franchise in the home building industry. Amir’s Sheds build specific purpose sheds for home gardens, farms and industrial storage facilities.

   The project starts on Monday, June 3, 2019

   WBS for Building a Shed

   Task ID	Task Description	Predecessor	Time	Resources (people and materials required to complete the task)
   2	Preparation phase
   3	Design Shed		3 days	Designer
   4	Obtain council approvals	3	14 days	Project manager to submit engineering, design specifications and construction certificates
   5	Sign Contract	4\	1 days	Project manager
   6	Construction Phase
   7	Check existing boundaries	5	1 day	Surveyor,
   8	Check underground cable locations	5	1 day	Project manager to contact utilities
   9	Establish site services and amenities	5	2 days	Fence construction team (2), electrician, plumber, require hired toilet, fencing materials
   10	Excavate site	7,8,9	3 days	Excavation team
   11	Pour Concrete and wait for it to set	10	2 days day	Construction team
   12	Install Shed	11	2 days	Construction team
   13	Completion Phase
   14	Connect utilities to shed	12	2 days	Electrician, Plumber
   15	Clean up site	12	3 days	Construction team
   16	Hand over keys and warranties	14,15	1 day	Project Manager
   17	Final Payment	16	0 days

Answer 1

Amir’s Sheds is a successful franchise in the home building industry. Amir’s Sheds build specific purpose sheds for home gardens, farms and industrial storage facilities.

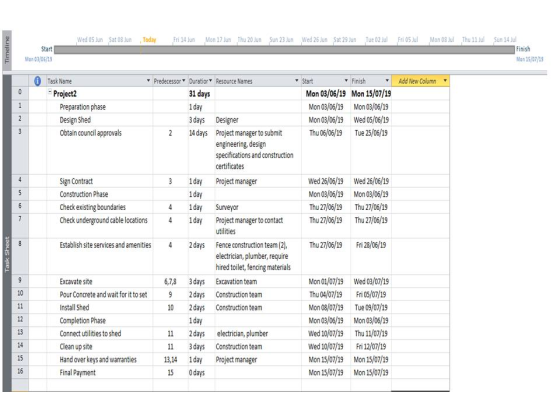

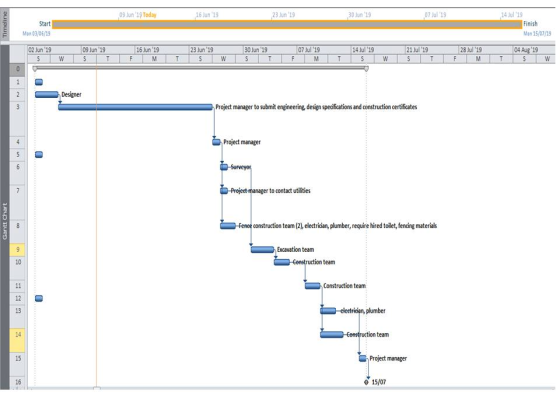

Project schedule-Gantt Chart

Wed 05 Jun Sat 08 Jun Today Fri 14 Jun Mon 17 Jun Thu 20 Jun Sun 23 Jun Wed 26 Jun Tue 02 Jul Fri 05 Jul Mon 08 Jul Thu 11 Jul Sun 14 Jul Sat 29 Jun Start Finish Mon 15/07/15 Man 03/06/19 Finish Add New Column Task Name Predecessor Duratior Resource Names Start Mon 03/06/19 Mon 15/07/19 Mon 03/06/19 Project2 31 days 1day 1 Mon 03/06/19 Preparation phase 2 Design Shed Obtain council approvals Mon 03/06/19 Wed 05/06/19 3 days Designer 3 Project manager to submit engineering, design specifications and construction Thu 06/06/19 Tue 25/06/19 14 days 2 certificates Wed 26/06/19 Sign Contract 1day Wed 26/06/19 3 Project manager 5 Mon 03/06/19 Mon 03/06/19 Construction Phase 1 day Thu 27/06/19 Thu 27/06/19 Check existing boundaries 1day Surveyor Thu 27/06/19 Thu 27/06/19 1day Check underground cable locations Project manager to contact utilities Establish site services and amenities 8 Thu 27/06/19 Fri 28/06/19 2 days Fence construction team (2), electrician, plumber, require hired toilet,fencing materials 6,7,8 3days Excavation team Mon 01/07/19 Wed 03/07/19 Excavate site Pour Concrete and wait for it to set 10 Thu 04/07/19 Fri 05/07/19 2 days Construction team Construction team 11 Mon 08/07/19 Tue 09/07/19 Install Shed 2 days 10 12 Mon 03/06/19 Completion Phase 1day Mon 03/06/19 13 Thu 11/07/19 Connect utilities to shed Wed 10/07/19 Wed 10/07/19 2 days electrician, plumber 11 14 Fri 12/07/19 Clean up site 3 days 11 Construction team 15 Mon 15/07/19 Mon 15/07/19 Hand over keys and warranties 1 day 13,14 Project manager 16 0 days Final Payment Mon 15/07/19 Mon 15/07/19 15 se

09 Jun 19 Today 16 Jun 19 30 Jun 19 07 Jul 19 14 Jul 19 Finish 23 Jun 19 Start Man 15/07/19 Mon 03/06/19 07 Jul 19 21 Jul 19 28 Jul 19 02 Jun 19 09 Jun 19 16 Jun '19 23 Jun 19 30 Jun '19 14 Jul '19 04 Aug '19 S W T M T T F T T F M T S 1 Designer 2 Project manager to submit engineering, design specifications and construction certifiates 3 Project manager 4 5 6 Prejeet manager to contact utilities 7 -Fenee construction team (2), electrician, plumber, require hired toilet, fencing materials Excavation team Honstruction team 10 Construction team 11 12 eleetrican, plumber 13 Honstruction team 14 Project manager 16 15/07 15
