The force P is applied to the handles of the pliers. Take that P = 90...

Question

Question

The force P is applied to the handles of the pliers. Take that P = 90 N .
(Figure 1)

Determine the clamping force exerted on the smooth pipe B.

Determine the magnitude of the resultant force that one of the members exerts on pin A.

50 mm 45° 250 mm

engineering Mechanical-Engineering

Answer 1

Answer #1

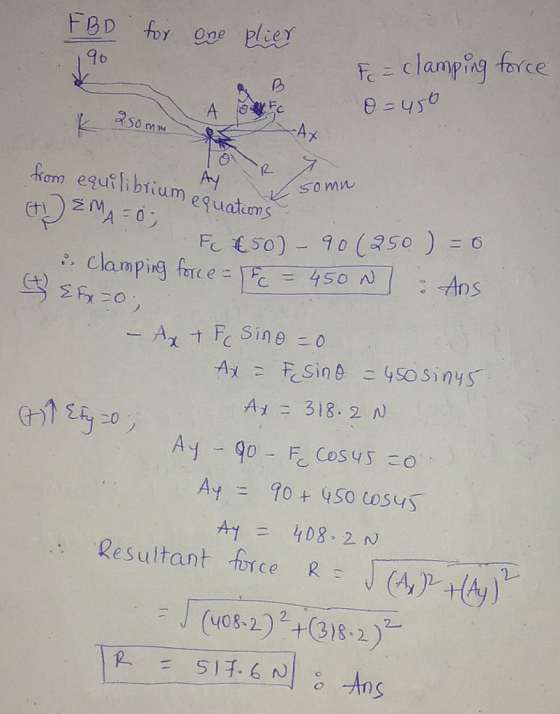

clanp 9 b ec Ay so mn 品Clamp、 A 318.2 N Resultant force JA),Hey) R: (408-2) +318.2

Answer 2

Similar Homework Help Questions

80 N 6. A force of 80 N is applied to the handle of the pliers...

80 N 6. A force of 80 N is applied to the handle of the pliers as shown. Determine the clamping force exerted on the smooth pipe B and the magnitude of the force at pin A. Answers must be supported with relevant free-body diagrams and equilibrium equations AO 50 mm 45 250 mm SON
Q3. The pliers in the diagram below are holding a dowel, which has a diameter of...

Q3. The pliers in the diagram below are holding a dowel, which has a diameter of 0.25 in. The forces applied at the handles are 50 lb as shown. Determine: (a) the magnitude of the forces on the dowel (b) the force from pin A on part AB of the pliers 1.2 in. 50 lb 9.5 in. - 50 lb |
When a force of 2 lb is applied to the handles of the brad squeezer

When a force of 2 lb is applied to the handles of the brad squeezer, it pulls in the smooth rod AE. Determine the force P exerted on each of the smooth brads at C and D.

A pair of pliers grips the bolt as shown. a. For the input force P of...

A pair of pliers grips the bolt as shown. a. For the input force P of 100 N, determine the force exerted on the bolt. b. Determine the mechanical advantage of this machine. Assume L = 120 mm, d = 24 mm. YAOC Bolt Bolt a. FB = 5 b. Ma =
Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are...

Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are properly aligned and exert only force reactions on the shaft. Determine the x, y, z components of force at the smooth journal bearing A. Determine the x, y, z components of force at the thrust bearing B. Part A A vertical force of 400 N acts on the crankshaft. (Figure Determine the horizontal equilibrium force P that must be applied to the handle. The...
A 5-lbs force is applied to the handles of the vise grip. Determine the magnitude...

A 5-lbs force is applied to the handles of the vise grip. Determine the magnitude of the compressive force developed on the smooth bolt shank A at the jaws.

A force P is applied on the crate at A as shown. Determine

A force P is applied on the crate at A as shown. Determine(a) the moment of the force P about C,(b) the magnitude and sense of the vertical force applied at E that creates the same moment about C,(c) the magnitude and direction (from horizontal) of the smallest force applied at E that creates the same moment about C.If P=500 N, a=25°, a=300 mm, b=500 mm, c=350 mm, d=50 mma) Moment of P about C(N · m, 3 sigfig, CW+)=b)...
Calculate the magnitude of the force acting on the pin at D. Pin C is fixed in DE and bears against the smooth slot in...

Calculate the magnitude of the force acting on the pin at D. Pin C is fixed in DE and bears against the smooth slot in the trianguar plate. 90 mm 250 N 170 mm 145 mm 175 mm 144.62 Answer: D- Calculate the magnitude of the force acting on the pin at D. Pin C is fixed in DE and bears against the smooth slot in the trianguar plate. 90 mm 250 N 170 mm 145 mm 175 mm 144.62...
Problem 1 F d L B A CO 30° с x F F = 53 lb...

Problem 1 F d L B A CO 30° с x F F = 53 lb L = 11.3 in d = 1.5 in The pliers shown are used to grip a 0.3-in.-diameter rod. Knowing that two 53-1b forces are applied to the handles, 1- Determine the magnitude of the forces exerted on the rod by each portion of the pliers in lb. Answer: 339.26 X 2- Determine the x-component of the force exerted by the pin at A on...
