Question

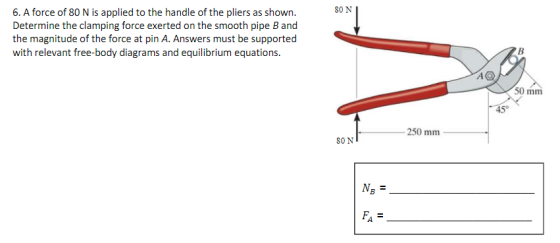

80 N 6. A force of 80 N is applied to the handle of the pliers as shown. Determine the clamping force exerted on the smooth p

0 0
Add a comment Improve this question Transcribed image text
Answer #1

A400 N ZIA

Add a comment
Know the answer?
Add Answer to:
80 N 6. A force of 80 N is applied to the handle of the pliers...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • The force P is applied to the handles of the pliers. Take that P = 90...

    The force P is applied to the handles of the pliers. Take that P = 90 N . (Figure 1) Determine the clamping force exerted on the smooth pipe B. Determine the magnitude of the resultant force that one of the members exerts on pin A. 50 mm 45° 250 mm

  • Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are...

    Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are properly aligned and exert only force reactions on the shaft. Determine the x, y, z components of force at the smooth journal bearing A. Determine the x, y, z components of force at the thrust bearing B. Part A A vertical force of 400 N acts on the crankshaft. (Figure Determine the horizontal equilibrium force P that must be applied to the handle. The...

  • Problem 4 (25%) is applied to the handle of the toggle clamp, determine the resulting clamping...

    Problem 4 (25%) is applied to the handle of the toggle clamp, determine the resulting clamping raw the Free Body Diagram of each member analyzed. Hint: FBD of handle and pins force at A? D at C& B and member A, C, D 70 mm 235 mm 30 mm 309 275 mm 30 mm 30

  • A compressive force of 450 N is to be applied to the two boards in the grip of the C clamp shown ...

    A compressive force of 450 N is to be applied to the two boards in the grip of the C clamp shown in Figure 13. The threaded screw has a mean diameter of 12 mm and advances 2.8 mm per turn. The coefficient of static friction is 0.20. Neglecting any friction at point A Determine the force F which must be applied to the handle at C in order to i. Tighten the clamp to provide the clamping force. ii....

  • A 43 N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to t...

    A 43 N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to the vertical place containing line OA of the handle. Determine the equivalent force- couple system at point O. A 43-N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to the vertical plane containing line OA of the handle. Determine the equivalent force-couple system at point O. 155 mm...

  • 7. Determine the shearing force Q applied to the bar if a 400 N force is applied to the handle for θ-30% For a given ap...

    7. Determine the shearing force Q applied to the bar if a 400 N force is applied to the handle for θ-30% For a given applied force, what value of gives the greatest shear? 400 N 360 m 75 mm 7. Determine the shearing force Q applied to the bar if a 400 N force is applied to the handle for θ-30% For a given applied force, what value of gives the greatest shear? 400 N 360 m 75 mm

  • If the clamping force on the pipe is 900 N, determine the horizontal force that must...

    If the clamping force on the pipe is 900 N, determine the horizontal force that must be applied perpendicular to the handle inorder to loosen the screw. The single square-threaded screw has a mean diameter of 24 o mm and a lead of 4 mm. The coefficient of static friction is Hs 0.3. (Note: The screw is a two-force member since it is contained within pinned collars at A and B.) [Hint: Start with a FBD of member ED.] 4....

  • The figure shows a mechanical device in which force (s) are applied parallel to and away...

    The figure shows a mechanical device in which force (s) are applied parallel to and away from the axis of the main, beam-like part. The device is supported by bearings at the locations marked with an X, which can provide reaction forces in any direction perpendicular to the axis of the beam. One of the bearings has the capability of resisting horizontally directed forces 1. Break the compound beam into parts consisting of each of the straight components. 2. Show...

  • A force of 50 N is applied to the first of the two blocks on a...

    A force of 50 N is applied to the first of the two blocks on a frictionless surface, m_1 = 20Kg m_2 = 10Kg (a) Draw a free-body diagram showing ALL the forces exerted on each block. Label the forces clearly. (b) Find the acceleration of the blocks. (c) Find the force exerted by the second block on the first block. Show the direction. (d) Find the normal force exerted on the first block by the underlying surface.

  • CORRECTION - The link is subjected to vertical force of 600 N. use 600 N and...

    CORRECTION - The link is subjected to vertical force of 600 N. use 600 N and dont use 550 N 4. The rigid link is supported by a pin at A, a steel wire BC having an unstretched length of 300 mm and cross-sectional area of 25 mm², and a short aluminum block having a length of 100 mm under no load and cross-sectional area of 45 mm². If the link is subjected to a vertical force of 550 N...
