7. Determine the shearing force Q applied to the bar if a 400 N force is applied to the handle for θ-30% For a given ap...

Question

Question

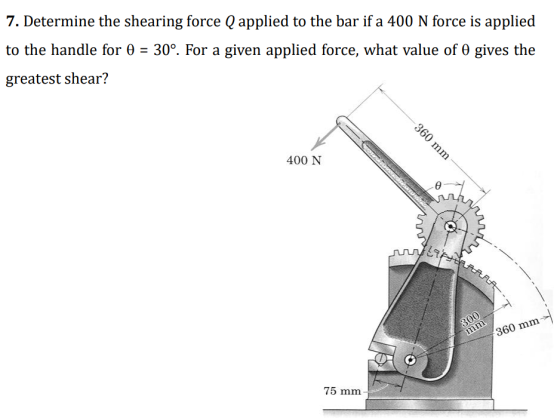

7. Determine the shearing force Q applied to the bar if a 400 N force is applied to the handle for θ-30% For a given applied

engineering Mechanical-Engineering

Answer 1

Answer #1

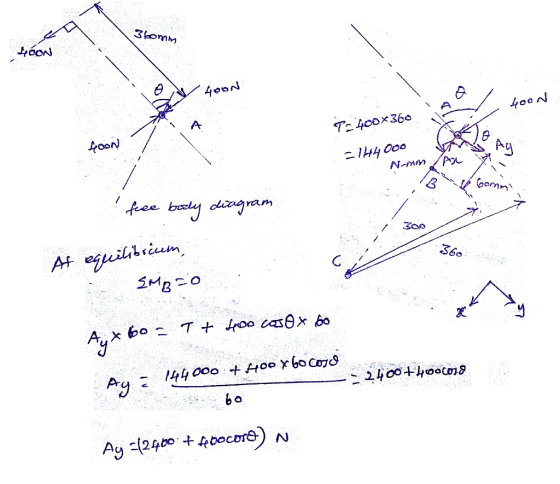

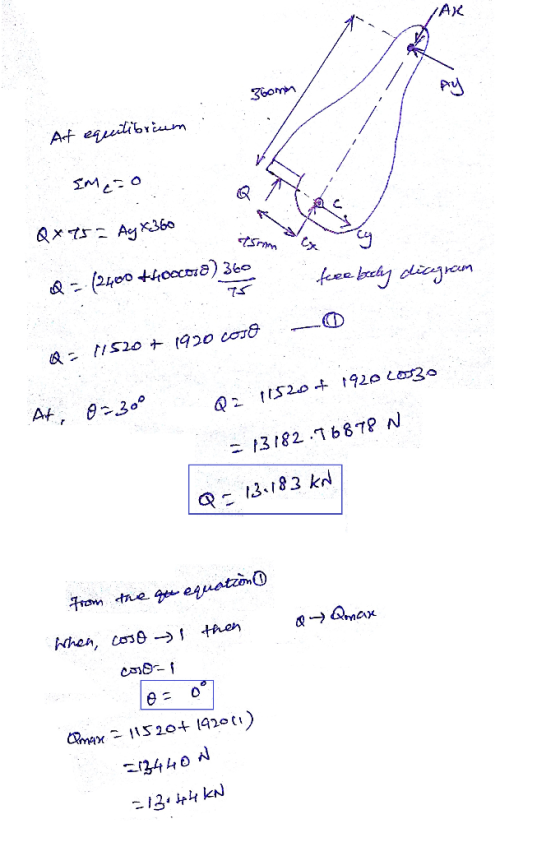

400N Ay 1300 る60 Af ea 2MRO Ax Py Q-. (2400 +4oecm@)るbO At、 8-38 13 183 k Tram tne 344

Answer 2

Similar Homework Help Questions

Given a shearing force V of 150kN: -Determine the maximum, minimum and average shearing stresses in...

Given a shearing force V of 150kN: -Determine the maximum, minimum and average shearing stresses in the vertical web of the I-type cross section. Compare the magnitudes of these shear stresses. What is your conclusion? (Note: the average shear stress in the web is the shear force/area of the web) -Determine the shear stress in the flange at a distance of 95mm from the tip (point X). Question 1 (30 marks) Given a shearing force V of 150 kN: Determine...
A shearing force of 1250 N is applied to a brass rod with a length of...

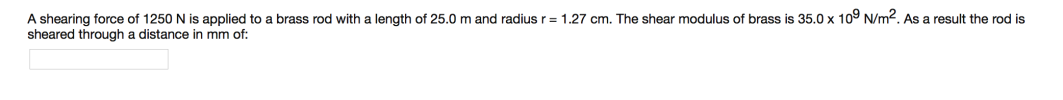

A shearing force of 1250 N is applied to a brass rod with a length of 25.0 m and radius r = 1.27 cm. The shear modulus of brass is 35.0 x 109 N/m2. As a result the rod is sheared through a distance in mm of:
Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are...

Determine the horizontal equilibrium force P that must be applied to the handle. The bearings are properly aligned and exert only force reactions on the shaft. Determine the x, y, z components of force at the smooth journal bearing A. Determine the x, y, z components of force at the thrust bearing B. Part A A vertical force of 400 N acts on the crankshaft. (Figure Determine the horizontal equilibrium force P that must be applied to the handle. The...

I Thee fasize 50x100-mm the allowable shearing force nails boards are nailed together to form a...

I Thee fasize 50x100-mm the allowable shearing force nails boards are nailed together to form a beam that is subjected to a vertical shear of 1500 N. Knowing that in cach nail is 400 N, determine the largest longitudinal spacing s that can be used between each pair ot are 2 A square box beam is made 20-80-mm spacing between the nails is s 30 mm and that the vertical shear in the of two 20×80-mm planks and two 20-120-mm...
A 43 N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to t...

A 43 N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to the vertical place containing line OA of the handle. Determine the equivalent force- couple system at point O. A 43-N horizontal force is applied to the handle of the industrial water valve as shown. The force is perpendicular to the vertical plane containing line OA of the handle. Determine the equivalent force-couple system at point O. 155 mm...
1 and 2 please Problem A 1-N horizontal force is applied perpendicular to the handle of...

1 and 2 please Problem A 1-N horizontal force is applied perpendicular to the handle of the socket wrench. Determine: 1. The moment created by this force about point O 2. The minimum distance between point A and the x-axis. 200 mm 75 mm

QUESTION 1 Given the dimension a = 176 mm and the applied load is 400 N,...

QUESTION 1 Given the dimension a = 176 mm and the applied load is 400 N, determine the internal forces (axial force, shear force and bending moment) at point in the structure shown. a mm WW 225 mm * 225 mm R * 120 mm A * PNV * 135 mm* Show all of your calculations and clearly identify your final answers.
a force p = 200 N is applied on a 25 mm thick bar with a...

a force p = 200 N is applied on a 25 mm thick bar with a 30 mm diameter hole on each end. a) what is the maximal average normal stress in the bar and where does it occur? Example 5 - Typical link A force P = 200 N is applied on a 25-mm thick bar with a 30-mm diameter hole on each end. a) What is the maximal average normal stress in the bar and where does it...
A load of 80 Kn is applied to a steel bar system as shown. Determine the...

A load of 80 Kn is applied to a steel bar system as shown. Determine the shear stress applied to plate D and the normal effort that the C-bar supports 400 mm Placa D 80 kN. 30 mm 70 mm 600 mm

80 N 6. A force of 80 N is applied to the handle of the pliers...

80 N 6. A force of 80 N is applied to the handle of the pliers as shown. Determine the clamping force exerted on the smooth pipe B and the magnitude of the force at pin A. Answers must be supported with relevant free-body diagrams and equilibrium equations AO 50 mm 45 250 mm SON
