When resistors are connected in parallel, the supply current is equal to the sum of the currents through each resistor. When resistors are connected in parallel, they have the same potential difference across them. The voltage drops across each of the branches is the same as the voltage gain in the battery. Thus, the voltage drop is the same across each of these resistors. So, answer is (d).
Add Answer to:

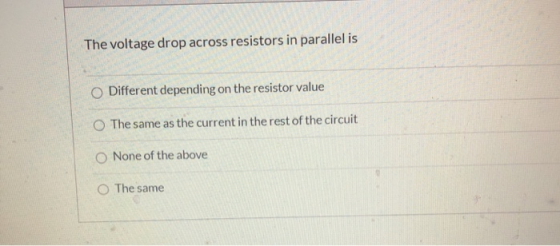

The voltage drop across resistors in parallel is Different depending on the resistor value The same...
When resistors are in series, each resistor has the same current but the voltage is...
When resistors are in series, each resistor has the same current but the voltage is different for each according to Ohm’s Law. A given circuit consists of two resistors in series connected to a 24.0-V battery. The current in the circuit is 0.0320 A. If R_1=250.0 Ω,and R_2=500.0 Ω. Find the potential difference across each resistor. Find the equivalent resistance. If the circuit in Problem 6 above is reconnected with the two resistors in parallel, the...
When two or more resistors are connected in parallel to a battery, the voltage across each...
When two or more resistors are connected in parallel to a battery, the voltage across each resistor is the same. the equivalent resistance of the combination is less than the resistance of any one of the resistors. the total current flowing from the battery equals the sum of the currents flowing through each resistor. all of the given answers O none of the given answers
In a parallel resistor circuit with 2 resistors The current flows through one resistor at a...
In a parallel resistor circuit with 2 resistors The current flows through one resistor at a time The current splits and flows through both resistors at the same time The equivalent resistance is equal to the sum of the resistors The potential drop across the first resistor is always the largest.
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a...
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Calculate the (a) current flowing in the circuit below and (b) voltage drop across the resistor...
Calculate the (a) current flowing in the circuit below and (b) voltage drop across the resistor Ron the right. The temperature is 600K. The battery voltage is 5 V. The resistance R-1 Giga Ohm. The equation for current through the diode is 1" 18 9 (exp/Vd/(2*VT)) - 1) Amperes. Vd is the voltage drop across the diode and VT is thermal voltage. Do not forget that this is diode with 2 as shown in the equation above. (1 Giga -...
Two resistors are connected in parallel across an ideal 12.0 Volts battery. Resistor A has a...
Two resistors are connected in parallel across an ideal 12.0 Volts battery. Resistor A has a value of 28 ohm and resistor B carries a current of 1.0169 A. 1.) What is the potential difference across resistor A? 2.) What is the potential difference across resistor B? 3.)What is the current in resistor A? 4.)What is the resistance of B? 5.)What is the total power dissipated in the circuit?
PSS 26.1 Resistors in Series and Parallel Learning Goal: To practice Problem-Solving Strategy 26.1 Resistors in...
PSS 26.1 Resistors in Series and Parallel Learning Goal: To practice Problem-Solving Strategy 26.1 Resistors in Series and Parallel. Part A Two bulbs are connected in parallel across a source of emf = 12.0 V with a negligible internal resistance. One bulb has a resistance of 3.0 2, and the other is 3.5 . A resistor R is connected in Which of the following circuit diagrams represents the circuit described in this problem? A the circuit in series with the...
Problem # 3 Determine the voltage drop and the current through each resistor in a circuit...
Problem # 3 Determine the voltage drop and the current through each resistor in a circuit composed of three resistors (5, 10 and 20 ohms) connected in parallel with a 12 V voltage source.
The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V.
3. The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V. What is the current in the circuit? What is the voltage across the resistor? 4. Now build the circuit with two resistors in series with 10.0 2 each (Series Circuit). What is the current through the circuit with a battery voltage of 10.0 V? How does this compare to the current with just one resistor of...
When two or more resistors are connected in parallel to a battery, the voltage across each resistor is the same. the equivalent resistance of the combination is less than the resistance of any one of the resistors. the total current flowing from the battery equals the sum of the currents flowing through each resistor. all of the given answers O none of the given answers
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Calculate the (a) current flowing in the circuit below and (b) voltage drop across the resistor Ron the right. The temperature is 600K. The battery voltage is 5 V. The resistance R-1 Giga Ohm. The equation for current through the diode is 1" 18 9 (exp/Vd/(2*VT)) - 1) Amperes. Vd is the voltage drop across the diode and VT is thermal voltage. Do not forget that this is diode with 2 as shown in the equation above. (1 Giga -...
PSS 26.1 Resistors in Series and Parallel Learning Goal: To practice Problem-Solving Strategy 26.1 Resistors in Series and Parallel. Part A Two bulbs are connected in parallel across a source of emf = 12.0 V with a negligible internal resistance. One bulb has a resistance of 3.0 2, and the other is 3.5 . A resistor R is connected in Which of the following circuit diagrams represents the circuit described in this problem? A the circuit in series with the...
3. The resistor should read 10.0 Ω. Tap on the battery so that the voltage adjustment window pops up. Adjust the voltage to 10.0 V. What is the current in the circuit? What is the voltage across the resistor? 4. Now build the circuit with two resistors in series with 10.0 2 each (Series Circuit). What is the current through the circuit with a battery voltage of 10.0 V? How does this compare to the current with just one resistor of...
