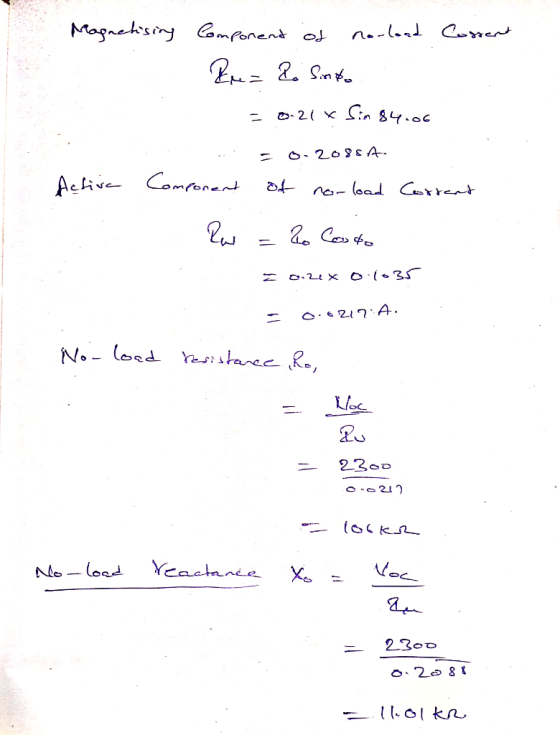

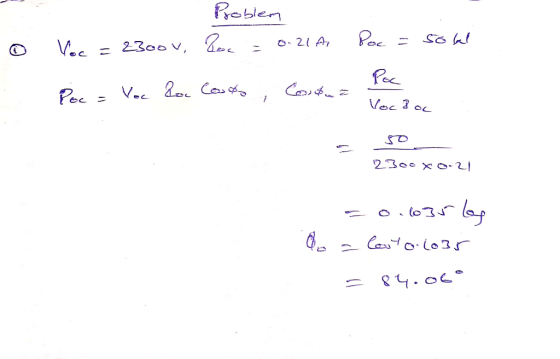

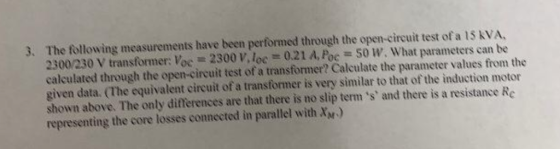

3. The following measurements have been performed through the open-circuit test of a 15 kVA, 2300/230...
Electric Machinery Problem 2: [50 points] A 15-KVA, 230/2300-V transformer is considered. The following test data...
Electric Machinery
Problem 2: [50 points] A 15-KVA, 230/2300-V transformer is considered. The following test data have been taken: | OC Test (on Primary) Voc = 230 V loc = 2.8 A Poc = 100 W SC Test (on Secondary) Vsc = 47 V Isc = 9.5 A Psc = 350 W (a) Find the equivalent circuit of this transformer referred to the high- voltage side. [10 points] (b) Find the equivalent circuit of this transformer referred to the low-...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the...
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
please solve it clearly A 1000-VA, 230/115-V has the following equivalent circuit parameters Referred to high...
please solve it clearly
A 1000-VA, 230/115-V has the following equivalent circuit parameters Referred to high voltage side Referred to low voltage side Req=0.503 Ohm Rc=3383 Ohm Xeq=1.905 Ohm XM=1099 Ohm (Find the expected values for the open and short circuit tests and fill the following table (show all steps Short Circuit test (High voltage side) =VSC - Isc-rated current Pse Open Circuit test (Low voltage side) -Voc -Ioc Poc Then .a) Find the equivalent circuit of this transformer referred...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open circuit test, measured from the LV, Voc=480V, 10c-1.6A, Poc=268.8W. Short circuit test, measured from the HV, Vsc1130V, ISC1A, PS-395.5W. (a) Find the equivalent circuit of this transformer with all of the impedances referred to the HV side. Re- MAX= ΜΩ Rsc= Ohms X sca Ohms (b) Find the equivalent circuit of this transformer in per unit with respect to its own rated powr. Re-...
I have these data from Open circuit and Short circuit tests: OCT: Voc= 105.9 v Ioc=...
I have these data from Open circuit and Short circuit tests:
OCT:
Voc= 105.9 v
Ioc= 0.08 A
Poc= 2 W
SCT:
Vsc= 12.9 V
Isc= 0.45 A
Psc= 3 W
pf= 0.669
How to correclty calculate the following
parameters:
The transformer rating
is
a. winding polarities b. core resistance and magnetization losses c. flux linkage losses d. winding resistances e. efficiency f. voltage regulation
Electric Machines Problem 1 (40 points) The following data were obtained for a 20 kVA,60 H...
Electric Machines
Problem 1 (40 points) The following data were obtained for a 20 kVA,60 H z, 2400/240 V distribution transformer tested at 60 Hz: HV open circuited: Voc 240 V, loc 1.038 A, Poc 122 W LV short circuited: Vc 61.3 V,Is8.33 A, Pc 257 W 1) Find the parameters of the transformer and equivalent circuit referred to LV side 2) Find voltage regulation when the transformer oper ates as step down and delivers its rated kVA at rated...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 po...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
The following data was obtained when open circuit and short circuit tests were performed on a...
The following data was obtained when open circuit and short circuit tests were performed on a single phase, 50 KVA, 2,400:240 V, 60 Hz distribution transformer: With high voltage winding open circuited: Voc = 240 V, Ioc = 4.85 A, Poc = 173 W With low voltage winding short circuited: Vsc = 52 V, Isc = 20.8 A, Psc = 650 W a) Determine the equivalent circuit of the transformer referred to its high voltage side and to its low...
4. Figure shows a power source that feeds a 100 kVA 14/2.4 kV transformer through a...
4. Figure shows a power source that feeds a 100 kVA 14/2.4 kV transformer through a feeder with impedance of 100/60° Ω Load 90 kw 0.85 PF lagging Feeder transmission line) Source Transformer Load The transformer has been tested to determine its equivalent circuit. The results of the tests are: Open-circuit test Voc = 14 kV oc 0.1 A Рос-800 w Short-circuit test Vsc 800 V Isc = 7A Psc 2 kW The load on the transformer is 90 kW...
Electric Machinery
Problem 2: [50 points] A 15-KVA, 230/2300-V transformer is considered. The following test data have been taken: | OC Test (on Primary) Voc = 230 V loc = 2.8 A Poc = 100 W SC Test (on Secondary) Vsc = 47 V Isc = 9.5 A Psc = 350 W (a) Find the equivalent circuit of this transformer referred to the high- voltage side. [10 points] (b) Find the equivalent circuit of this transformer referred to the low-...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
please solve it clearly
A 1000-VA, 230/115-V has the following equivalent circuit parameters Referred to high voltage side Referred to low voltage side Req=0.503 Ohm Rc=3383 Ohm Xeq=1.905 Ohm XM=1099 Ohm (Find the expected values for the open and short circuit tests and fill the following table (show all steps Short Circuit test (High voltage side) =VSC - Isc-rated current Pse Open Circuit test (Low voltage side) -Voc -Ioc Poc Then .a) Find the equivalent circuit of this transformer referred...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open circuit test, measured from the LV, Voc=480V, 10c-1.6A, Poc=268.8W. Short circuit test, measured from the HV, Vsc1130V, ISC1A, PS-395.5W. (a) Find the equivalent circuit of this transformer with all of the impedances referred to the HV side. Re- MAX= ΜΩ Rsc= Ohms X sca Ohms (b) Find the equivalent circuit of this transformer in per unit with respect to its own rated powr. Re-...
I have these data from Open circuit and Short circuit tests:
OCT:
Voc= 105.9 v
Ioc= 0.08 A
Poc= 2 W
SCT:
Vsc= 12.9 V
Isc= 0.45 A
Psc= 3 W
pf= 0.669
How to correclty calculate the following
parameters:
The transformer rating
is
a. winding polarities b. core resistance and magnetization losses c. flux linkage losses d. winding resistances e. efficiency f. voltage regulation
Electric Machines
Problem 1 (40 points) The following data were obtained for a 20 kVA,60 H z, 2400/240 V distribution transformer tested at 60 Hz: HV open circuited: Voc 240 V, loc 1.038 A, Poc 122 W LV short circuited: Vc 61.3 V,Is8.33 A, Pc 257 W 1) Find the parameters of the transformer and equivalent circuit referred to LV side 2) Find voltage regulation when the transformer oper ates as step down and delivers its rated kVA at rated...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
4. Figure shows a power source that feeds a 100 kVA 14/2.4 kV transformer through a feeder with impedance of 100/60° Ω Load 90 kw 0.85 PF lagging Feeder transmission line) Source Transformer Load The transformer has been tested to determine its equivalent circuit. The results of the tests are: Open-circuit test Voc = 14 kV oc 0.1 A Рос-800 w Short-circuit test Vsc 800 V Isc = 7A Psc 2 kW The load on the transformer is 90 kW...
